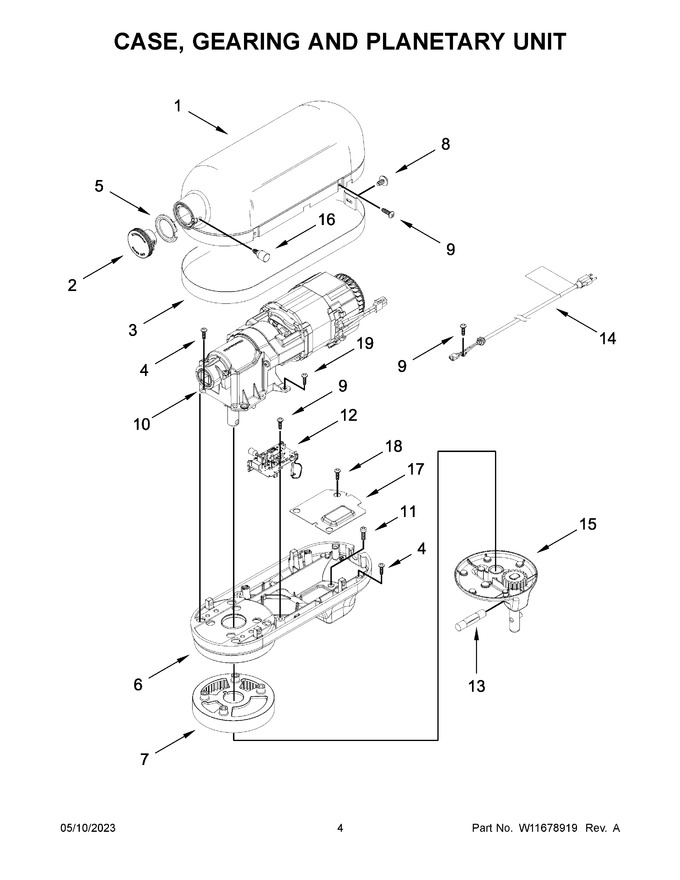

03 - Case, Gearing And Planetary Unit


04 - Base And Pedestal Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
2	W11647947		Cover, Attachment Hub - Dual Finish   (Replaces: W11591898)		Appelez-nous	-
3	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
4	W10914506		Screw   (Replaces: W10351843)				$ 4.59
5	W11123129		Ring, Attachment Hub   (Replaces: 9706141)				$ 19.69
6	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
7	W11647948		Gear, Ring And Plate Assembly   (Replaces: W11454895)		Appelez-nous	-
8	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
9	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
10	W11680055		Motor, 127 Volt Assembly   (Replaces: W11480078)		Appelez-nous	-
11	W10913677		Screw   (Replaces: 3400200)				$ 4.64
12	W11680071		Control Assembly, 127 Volt   (Replaces: W11512561)		Appelez-nous	-
13	WPW10234531		Pin, Groove   (Replaces: W10234531)			Immediately	$ 5.29
14	W11680072		Cord, Power (black)   (Replaces: W11459268)		Appelez-nous	-
15	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
16	W11712726		Thumb Screw (chrome)   (Replaces: W11521863)		Appelez-nous	-
17	W11560130		Plate, Lower Housing		Appelez-nous	-
18	W11677192		Screw   (Replaces: W10419037)		Appelez-nous	-
19	W11677193		Screw   (Replaces: W11457471)		Appelez-nous	-
