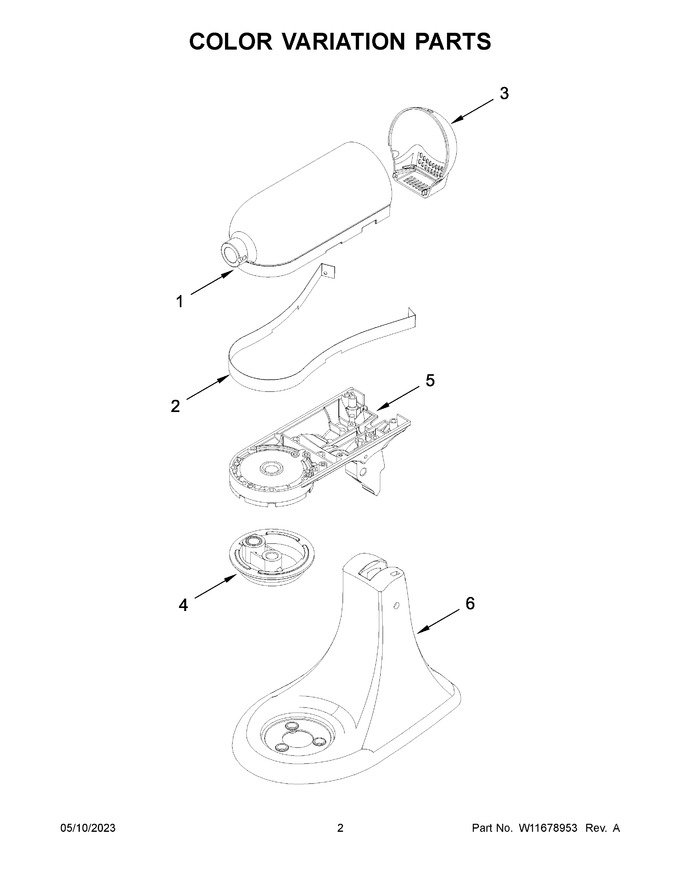

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11601656 | Motor Housing (empire Red) |
|
- | |||||
| 2 | 9706661 | Trim Band (black) |
|
- | |||||
| 3 | 24025322 | End Cover (empire Red) |
|
- | |||||
| 4 | 24028623 | Planetary (empire Red) |
|
- | |||||
| 5 | 24035084 | Lower Gearcase (empire Red) |
|
- | |||||
| 6 | W11131262 | Pedestal (empire Red) (Replaces: 9702304) |
|
$ 97.71 | |||||
| 1A | W11601726 | Motor Housing (metallic Chrome) |
|
- | |||||
| 3A | 9704029 | End Cover (metallic Chrome) |
|
- | |||||
| 4A | 9706670 | Planetary (metallic Chrome) |
|
Immediately | $ 45.31 | ||||
| 5A | 9706662 | Lower Gearcase (metallic Chrome) |
|
$ 68.93 | |||||
| 6A | 9706684 | Pedestal (metallic Chrome) |
|
- |
