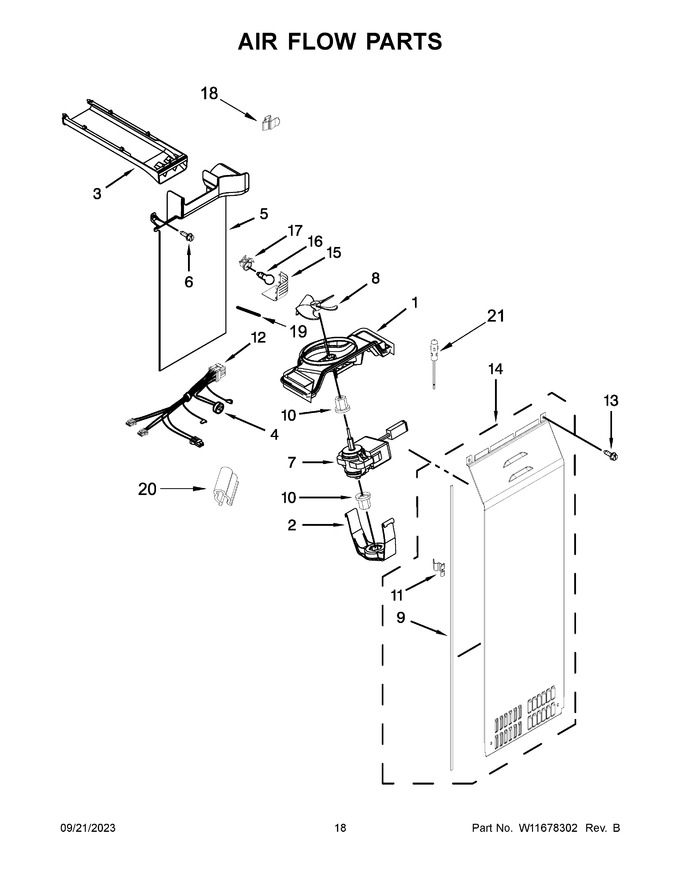

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11807265		Scroll, Fan   (Replaces: W10251462)				$ 30.70
2	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 159.27
3	W11040868		Duct, Upper Air				$ 101.89
4	ARI78514A0015B594BAB60352A2047B1C07		Bi-metal Defrost (not Serviced)		Appelez-nous	-
5	W11746091		Duct, Freezer Air   (Replaces: W10260384)		Appelez-nous	-
6	WP489478		Screw   (Replaces: W10001260)				$ 8.18
7	W11833137		Motor, Fan   (Replaces: W11243741)			Immediately	$ 119.39
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
9	W10240370		Gasket, Evaporator Cover		Appelez-nous	-
10	W11669856		Grommet, Motor   (Replaces: W10449920)			Immediately	$ 15.93
11	W11232019		Clip, Evaporator Cover   (Replaces: W10369602)			Immediately	$ 11.39
12	W11566892		Assembly, Evaporator Fan Wire (includes Bi-metal Defrost)   (Replaces: W11314873)				$ 77.77
13	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 7.55
14	WPW10388269		Cover, Evaporator   (Replaces: W10388269)				$ 242.39
15	W10260382		Cover, Light				$ 80.58
16	W11216993		Lamp, Led   (Replaces: W11125625)			Immediately	$ 43.24
17	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
18	W10331728		Clip, Air Duct				$ 81.19
19	W11205489		Foam		Appelez-nous	-
20	W11546684		Clip, Evaporator Thermistor   (Replaces: W11437914)			Immediately	$ 12.33
21	WPW10384183		Thermistor   (Replaces: W10384183)			Immediately	$ 118.47
