01 - Cover Sheet

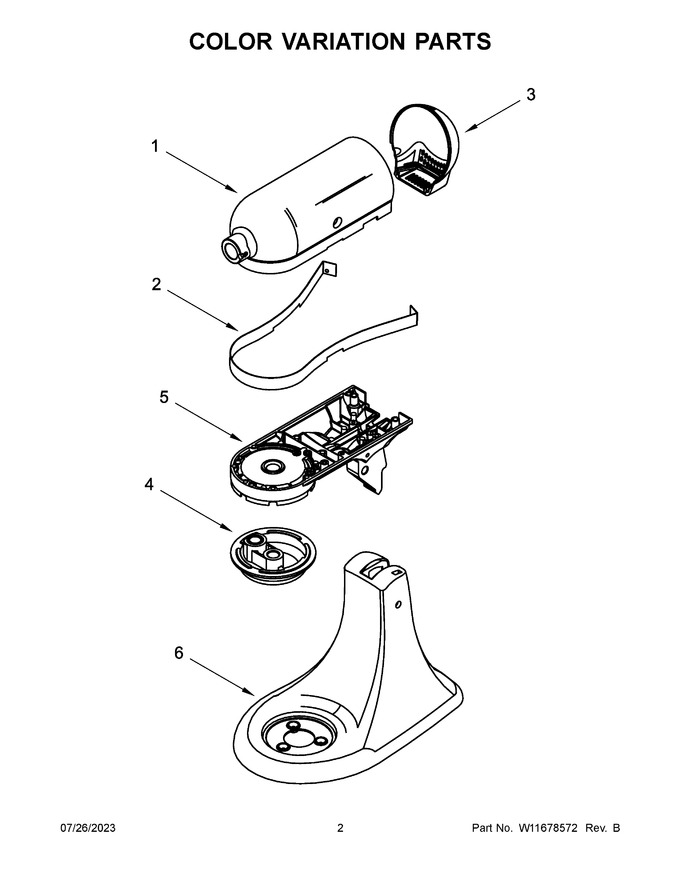

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11605631 | Motor Housing (candy Apple Red) |
|
- | |||||
| 2 | 9706661 | Trim Band (black) |
|
- | |||||
| 3 | WPW10239110 | End Cover (candy Apple Red) (Replaces: W10239110) |
|
$ 28.91 | |||||
| 4 | W10239112 | Planetary (candy Apple Red) |
|
$ 45.31 | |||||
| 5 | W10239118 | Lower Gearcase (candy Apple Red) |
|
- | |||||
| 6 | W10239121 | Pedestal (candy Apple Red) |
|
- | |||||
| 1A | W11601770 | Motor Housing (contour Silver) |
|
- | |||||
| 1B | W11610358 | Motor Housing (feather Pink) |
|
- | |||||
| 1C | W11617715 | Motor Housing (ice) |
|
- | |||||
| 1D | W11605712 | Motor Housing (imperial Grey) |
|
- | |||||
| 1E | W11610705 | Motor Housing (kyoto Glow) |
|
- | |||||
| 1F | W11604387 | Motor Housing (lavender Cream) |
|
- | |||||
| 1G | W11603995 | Motor Housing (majestic Yellow) |
|
- | |||||
| 1H | W11603707 | Motor Housing (milkshake/matte Milkshake) |
|
- | |||||
| 1I | W11601712 | Motor Housing (mineral Water Blue) |
|
- | |||||
| 1J | W11601672 | Motor Housing (onyx Black) |
|
$ 90.25 | |||||
| 1K | W11603687 | Motor Housing (pistachio) |
|
$ 100.30 | |||||
| 1L | W11604098 | Motor Housing (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 3A | W10350456 | End Cover (contour Silver) |
|
$ 43.04 | |||||
| 3B | W11431666 | End Cover (feather Pink) |
|
- | |||||
| 3C | 9707667 | End Cover (ice/ice Blue) |
|
- | |||||
| 3D | 24025323 | End Cover (imperial Grey) |
|
- | |||||
| 3E | W11357462 | End Cover (kyoto Glow) |
|
- | |||||
| 3F | W10678729 | End Cover (matte Lavender Cream) |
|
- | |||||
| 3G | 24025321 | End Cover (majestic Yellow) |
|
- | |||||
| 3H | W11113835 | End Cover (milkshake/matte Milkshake) |
|
- | |||||
| 3I | W11444606 | End Cover (mineral Water Blue) |
|
- | |||||
| 3J | 24025314 | End Cover (onyx Black) |
|
- | |||||
| 3K | 9706841 | End Cover (pistachio) |
|
- | |||||
| 3L | W11209472 | End Cover (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 4A | W10350465 | Planetary (contour Silver) |
|
- | |||||
| 4B | W11431675 | Planetary (feather Pink) |
|
- | |||||
| 4C | 9707665 | Planetary (ice/ice Blue) |
|
$ 44.59 | |||||
| 4D | 24028624 | Planetary (imperial Grey) |
|
- | |||||
| 4E | W11357469 | Planetary (kyoto Glow) |
|
- | |||||
| 4F | W10678731 | Planetary (matte Lavender Cream) |
|
- | |||||
| 4G | 24028622 | Planetary (majestic Yellow) |
|
- | |||||
| 4H | W11113886 | Planetary (milkshake/matte Milkshake) |
|
- | |||||
| 4I | W11444675 | Planetary (mineral Water Blue) |
|
- | |||||
| 4J | 24028616 | Planetary (onyx Black) |
|
- | |||||
| 4K | 9706839 | Planetary (pistachio) |
|
- | |||||
| 4L | W11209470 | Planetary (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 5A | W10350459 | Lower Gearcase (contour Silver) |
|
- | |||||
| 5B | W11431679 | Lower Gearcase (feather Pink) |
|
- | |||||
| 5C | 9707659 | Lower Gearcase (ice/ice Blue) |
|
- | |||||
| 5D | 24035086 | Lower Gearcase (imperial Grey) |
|
- | |||||
| 5E | W11357465 | Lower Gearcase (kyoto Glow) |
|
- | |||||
| 5F | W10678734 | Lower Gearcase (matte Lavender Cream) |
|
- | |||||
| 5G | 24035082 | Lower Gearcase (majestic Yellow) |
|
- | |||||
| 5H | W11113859 | Lower Gearcase (milkshake/matte Milkshake) |
|
- | |||||
| 5I | W11444671 | Lower Gearcase (mineral Water Blue) |
|
- | |||||
| 5J | 24035056 | Lower Gearcase (onyx Black) |
|
- | |||||
| 5K | 9706832 | Lower Gearcase (pistachio) |
|
$ 66.91 | |||||
| 5L | W11209465 | Lower Gearcase (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 6A | W10350457 | Pedestal (contour Silver) |
|
- | |||||
| 6B | W11444650 | Pedestal With Feet (feather Pink) |
|
- | |||||
| 6C | 9707656 | Pedestal With Feet (ice/ice Blue) |
|
- | |||||
| 6D | 9702305 | Pedestal With Feet (imperial Grey) |
|
- | |||||
| 6E | W11357468 | Pedestal With Feet (kyoto Glow) |
|
- | |||||
| 6F | W10678730 | Pedestal With Feet (lavender Cream) |
|
- | |||||
| 6G | 9702303 | Pedestal With Feet (majestic Yellow) |
|
- | |||||
| 6H | W11113853 | Pedestal With Feet (milkshake/matte Milkshake) |
|
- | |||||
| 6I | W11444670 | Pedestal (mineral Water Blue) |
|
- | |||||
| 6J | 3179275 | Pedestal With Feet (onyx Black) |
|
- | |||||
| 6K | 9706830 | Pedestal (pistachio) |
|
- | |||||
| 6L | W11231604 | Pedestal With Feet (blue Velvet) |
|
- |
