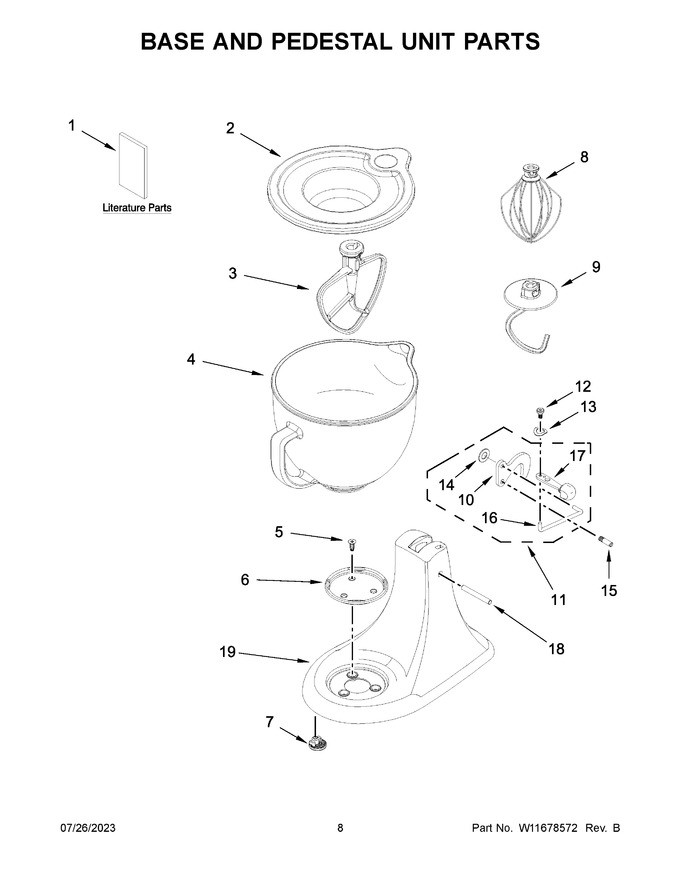

05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11555615 | Use & Care Guide |
|
- | |||||
| 2 | WPW10223140 | Cover, Glass Bowl (Replaces: W10223140) |
|
$ 23.03 | |||||
| 3 | WPW10672617 | Beater, Flat (coated) (Replaces: W10672617) |
|
Immediately | $ 24.92 | ||||
| 4 | W11341654 | Bowl, Glass 5 Qt. (Replaces: W11161582) |
|
$ 96.78 | |||||
| 5 | W11544572 | Screw (Replaces: 3400020) |
|
$ 8.41 | |||||
| 6 | WPW10191926 | Cap, Bowl Screw (Replaces: W10191926) |
|
Immediately | $ 19.03 | ||||
| 7 | WP9709707 | Foot (Replaces: 9709707) |
|
Immediately | $ 4.42 | ||||
| 8 | WP9704329 | Whip, Wire (Replaces: 9704329) |
|
Immediately | $ 29.90 | ||||
| 9 | WPW10674618 | Hook, Dough (coated) (Replaces: W10674618) |
|
Immediately | $ 31.90 | ||||
| 10 | W11246352 | Latch (Replaces: 9709055) |
|
$ 8.57 | |||||
| 11 | WP24452 | Assembly, Latch Link (black) (Replaces: 24452) |
|
Immediately | $ 8.06 | ||||
| 12 | 6011-006971 | Screw (Replaces: 110679) |
|
Immediately | $ 3.59 | ||||
| 13 | WP116241 | Washer, Spring (Replaces: 116241) |
|
$ 5.19 | |||||
| 14 | W11218705 | Washer (Replaces: 8533912) |
|
$ 4.55 | |||||
| 15 | W10802060 | Screw (Replaces: W10572158) |
|
$ 5.21 | |||||
| 16 | W11232016 | Link, Latch (Replaces: 24450) |
|
$ 7.83 | |||||
| 17 | WP9709280 | Lever, Latch (black) (Replaces: 9709280) |
|
Immediately | $ 4.62 | ||||
| 18 | WP16910 | Pin, Hinge (Replaces: 16910) |
|
Immediately | $ 4.87 | ||||
| 19 | ARIF75EE2D15D3C0612D837BA31F9C56284 | Pedestal (refer To Color Variation Parts Page) |
|
- | |||||
| NI | W10917788 | Beater, Flex Edge (Replaces: W10672622) |
|
$ 73.48 |
