SELECT A DIAGRAM

01 - Cabinet Liner And Door


02 - Evaporator, Ice Cutter Grid And Water


03 - Pump

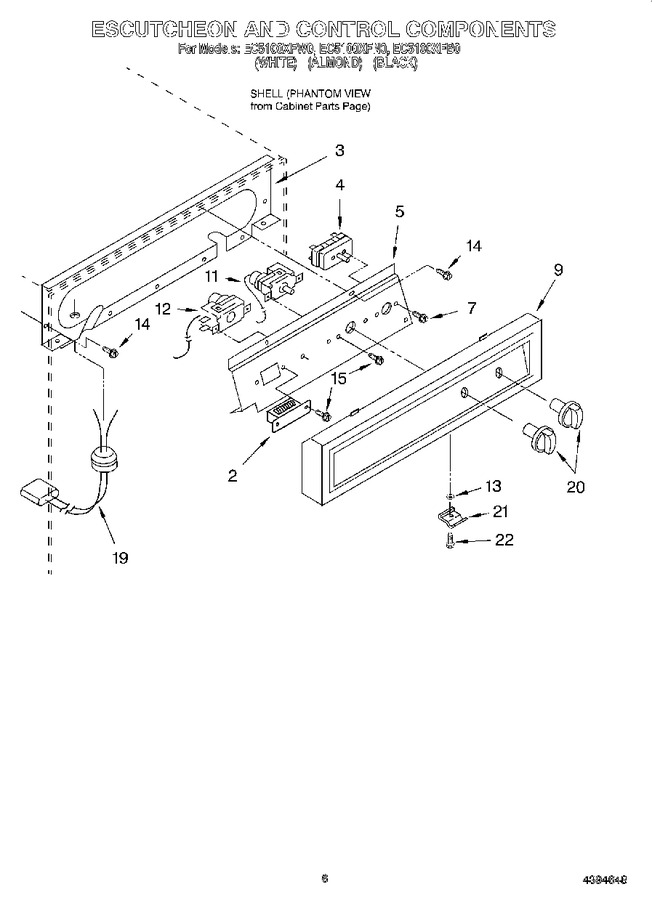

04 - Escutcheon And Control Components


05 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2165483		Transformer		Appelez-nous	-
3	2165530		Escutcheon, Panel		Appelez-nous	-
4	2172893		Switch, Service		Appelez-nous	-
5	2172846		Bracket, Control		Appelez-nous	-
7	WP486579		Screw, 8-32 X 1/4   (Replaces: 595005)				$ 7.89
9	2181147		Escutcheon (almond)		Appelez-nous	-
9	2180974		Escutcheon (black)		Appelez-nous	-
9	2180994		Escutcheon (white)		Appelez-nous	-
11	759308		Thermostat, Evaporator				$ 107.45
12	759309		Thermostat, Bin Control				$ 126.04
13	681245		Washer,		Appelez-nous	-
14	WP488729		Screw, No.8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
15	681036		Screw,		Appelez-nous	-
19	757464		Harness, Grid		Appelez-nous	-
20	2181038		Knob (black)		Appelez-nous	-
20	2181148		Knob (almond)		Appelez-nous	-
20	2181039		Knob (white)		Appelez-nous	-
21	759007		Latch (black)		Appelez-nous	-
21	759123		Latch (white)		Appelez-nous	-
21	2180773		Latch (almond)		Appelez-nous	-
22	680964		Screw, 8-32 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
