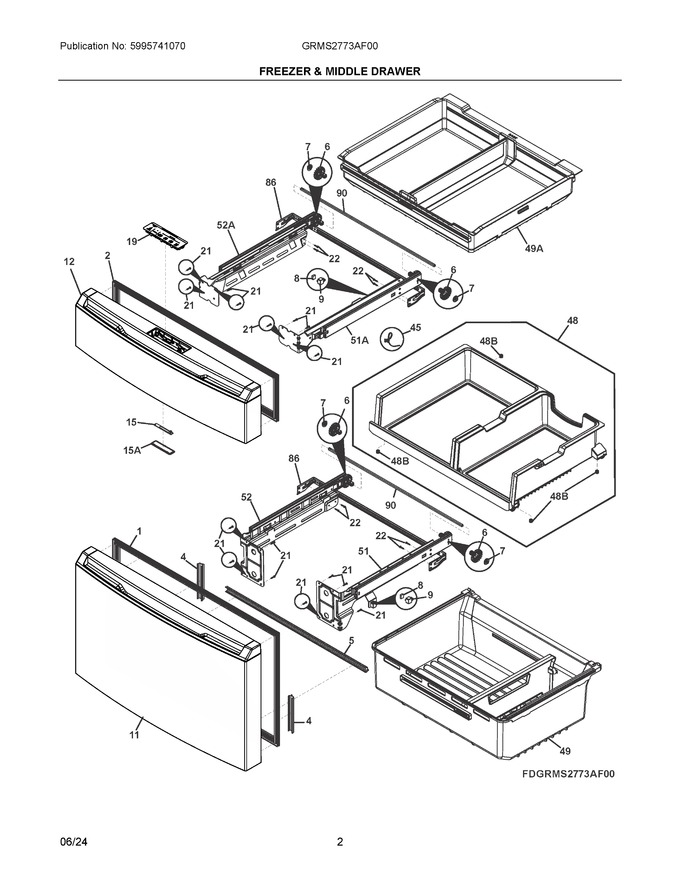

GRMS2773AF00 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	5304519037	Gasket, Door, Freezer		Immediately	$ 59.46
2	5304519038	Gasket, Door, Middle			$ 65.38
4	5304519041	Gasket, Door, 162mm, Secondary (Replaces: 5304519040)		Immediately	$ 28.30
5	5304519041	Gasket, Door, 754mm, Frz Bottom, Secondary		Immediately	$ 28.30
6	140025649017	Gear, Pinion (Replaces: 5304524001)		Immediately	$ 5.09
7	5304519043	Bearing, Pad, Gear			$ 10.95
8	5304519044	Magnet, Reed Switch		Immediately	$ 21.06
9	5304535665	Support, Magnet (Replaces: 5304519045)			$ 3.70
11	5304537398	Door Assembly, Outer, Stainless, Freezer (Replaces: 5304529561)			$ 436.42
12	140281015739	Door Assembly, Outer, Stainless, Middle Drawer (Replaces: 5304529562)	Appelez-nous	-
15	5304523011	Light Board, 3 Led Cluster, 6500k		Immediately	$ 54.28
19	5304534898	Display Assembly, Middle Drawer, W/pcb			$ 188.45
21	811949401	Screw, Trilob, M5 X 16		Immediately	$ 5.90
22	5304519053	Screw, M3.5 X 6	Appelez-nous	-
45	539151026	Clip, Harness			$ 40.16
48	5304534912	Drawer Assembly, Freezer			$ 173.74
49	5304534911	Basket Assembly, Freezer Drawer, W/divider	Appelez-nous	-
51	5304534895	Slider, Assembly, Rh Freezer			$ 204.82
52	5304534894	Slider, Assembly, Lh Freezer		Immediately	$ 203.43
86	5304536612	Bracket, Reinforcement (Replaces: 5304519064)	Appelez-nous	-
90	5304524002	Shaft, Slider, Telescopic			$ 66.57
15A	5304526839	Lens, Led Light, Lh Endcap		Immediately	$ 10.11
48B	5304532074	Cushion, Rubber, Freezer Drw	Appelez-nous	-
49A	5304534910	Basket Assembly, Middle Drawer, W/divider	Appelez-nous	-
51A	5304534897	Slider, Assembly, Rh Middle Drw			$ 205.23
52A	5304534896	Slider, Assembly, Lh Middle Drw			$ 198.58
NIA	5304519084	Screw, Flange Pnhd Phl, 8g X 1/2	Appelez-nous	-
NIA	5304519066	Screw, Phil Pn Hd, M4 X 8	Appelez-nous	-
NIBA	811949503	Screw, Truss, 4.2 X 13			$ 3.37
