SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

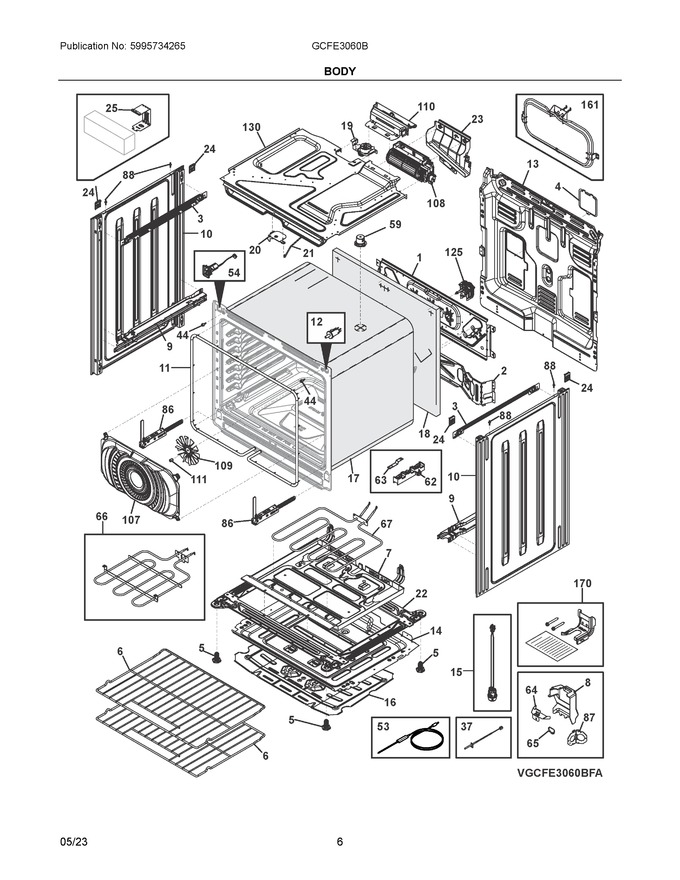

03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533416		Bracket, Rear Components, Upper		Appelez-nous	-
2	5304533425		Bracket, Components, Lower				$ 67.91
3	5304526493		Bracket, Side Panel, Cooling				$ 16.80
4	5304528328		Cover, Wiring				$ 9.61
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 30.55
6	5304536394		Rack, Flat, W/handle   (Replaces: 5304534707)			Immediately	$ 59.94
7	5304528326		Tray, Hidden Bake				$ 58.14
8	5304528549		Cover, Terminal Block			Immediately	$ 42.01
9	5304528546		Receptacle, Hinge Carrier			Immediately	$ 38.31
10	5304526334		Panel, Body Side, Black			Immediately	$ 153.87
11	5304528053		Seal, Door				$ 55.34
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
13	5304533417		Shield, Small, Rear Wires		Appelez-nous	-
14	5304533877		Shield, Insulation, Lower		Appelez-nous	-
15	5304533411		Lamp Assembly, Oven, G9 40w, Halogen			Immediately	$ 40.56
16	5304533453		Shield, Drawer Storage, Full		Appelez-nous	-
17	5304528604		Insulation, Oven Wrapper		Appelez-nous	-
18	140162844298		Insulation, Oven Back   (Replaces: 5304528605)				$ 17.68
19	5304528260		Motor, Latch, W/bracket			Immediately	$ 53.82
20	5304528257		Latch Assembly			Immediately	$ 21.06
21	5304528259		Rod, Latch				$ 9.03
22	5304533415		Base Rail, Assembly			Immediately	$ 152.96
23	5304533976		Guard, Lower, Plastic, Black		Appelez-nous	-
24	5304534653		Clip, Support, Burner Box				$ 10.79
25	5304528655		Bracket, Counterweight		Appelez-nous	-
37	5304533448		Probe, Oven Temp, Sensor			Immediately	$ 54.60
44	316517600		Bumper, Front, Main				$ 13.39
53	807822611		Probe, Food, Red   (Replaces: 807822606)			Immediately	$ 27.85
54	140233289051		Receptacle, Meat Probe   (Replaces: 339662625)			Immediately	$ 32.60
59	5304528243		Tube, Oven Vent				$ 23.57
62	5303935271		Terminal Block Kit				$ 81.73
63	316542600		Plate, Grounding Strap		Appelez-nous	-
64	5304528551		Shield, Terminal Block		Appelez-nous	-
65	5304533926		Clip, Power Cord		Appelez-nous	-
66	140156193181		Element, Broil, 4000w, 6 Pass   (Replaces: 5304533418)				$ 80.64
67	140156196176		Element, Hidden Bake, 8 Pass, 2500w, 240v   (Replaces: 5304526373)			Immediately	$ 63.21
86	5304533841		Hinge, Door, Blue, 2 Springs				$ 65.63
87	5304526449		Bracket, Power Cord				$ 9.21
88	316099501		Pin, Guide		Appelez-nous	-
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
108	5304537802		Blower Assembly   (Replaces: 5304528167)			Immediately	$ 123.76
109	5304525455		Blade, Fan, Convection				$ 16.01
110	5304528418		Duct Assembly, Exhaust, Cooling		Appelez-nous	-
111	561231207		Nut, Fan Blade			Immediately	$ 20.39
125	5304526375		Motor, Convection Fan				$ 182.00
130	5304528291		Duct Assembly, Cooling, Upper				$ 156.35
161	140195758051		Element, Convection, 3800w, 240v, Rectangular   (Replaces: 5304526565)		Appelez-nous	-
170	316112010		Anti Tip Kit, Assy, 30", W/template			Immediately	$ 25.62
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304533471		Screw, T20, 4.4 X 13		Appelez-nous	-
NI	5304533469		Standoff, Harness, Plastic		Appelez-nous	-
NI	5304538919		Screw, T20 Washer, 4.5 X 14.5   (Replaces: 5304533472)		Appelez-nous	-
NI	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 4.08
NI	140295022010		Harness, Wiring, Main   (Replaces: 5304534727)		Appelez-nous	-
NI	5304534728		Harness, Wiring, Low Voltage				$ 85.87
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NIA	387856311		Screw, 4.2 X 10				$ 3.37
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.37
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
