01 - Cover Sheet

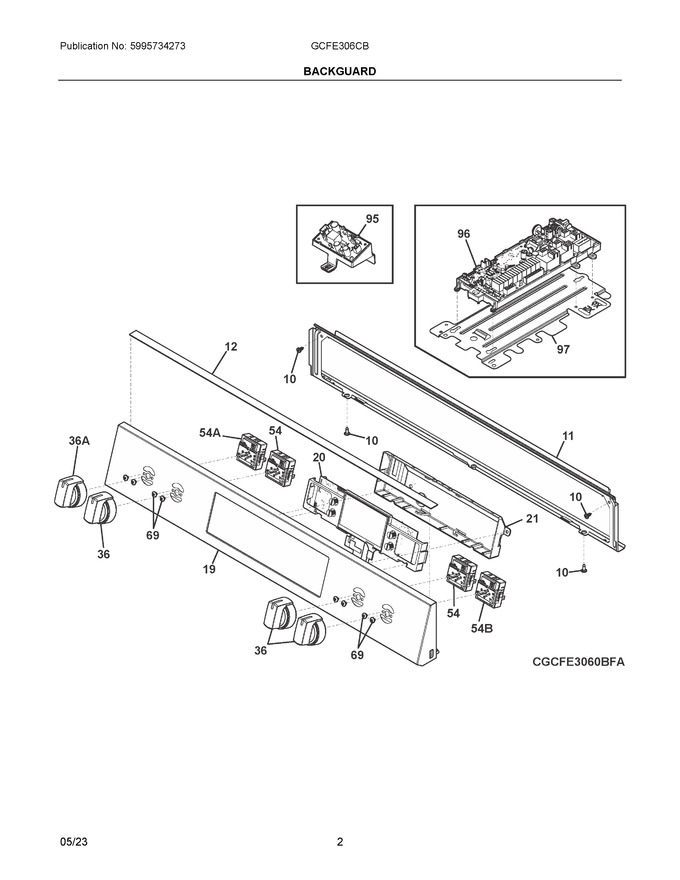

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| 11 | 5304528295 | Bracket, Support, Front Control |
|
Immediately | $ 28.14 | ||||
| 12 | 5304528554 | Seal, Smoothtop |
|
Immediately | $ 35.40 | ||||
| 19 | 5304534721 | Control Panel, Assembly, Black Stainless |
|
$ 212.97 | |||||
| 20 | 5304538605 | Controller, Electronic, Oven, Ui730 (Replaces: 5304534729) |
|
Immediately | $ 268.58 | ||||
| 21 | 5304533954 | Housing, Control |
|
- | |||||
| 36 | 5304528711 | Knob, Infinite Switch, Black Stainless, Single |
|
- | |||||
| 54 | 5304522966 | Switch, Infinite, Single |
|
Immediately | $ 86.79 | ||||
| 69 | 5304528301 | Screw, Truss, 8-32 X 17.65 |
|
$ 4.16 | |||||
| 95 | 5304534730 | Pc Board, Assembly, Backlit Power, W/housing |
|
$ 96.61 | |||||
| 96 | 140171069028 | Pc Board, Assembly, Ovc (Replaces: 5304534719) |
|
Immediately | $ 162.81 | ||||
| 97 | 5304528373 | Bracket, Ovc Board |
|
Immediately | $ 24.59 | ||||
| 36A | 5304528712 | Knob, Infinite Switch, Black Stainless, Dual |
|
$ 83.46 | |||||
| 54A | 140173679014 | Switch, Infinite, Radiant Dual (Replaces: 5304522918) |
|
Immediately | $ 37.01 | ||||
| 54B | 140173680012 | Switch, Infinite, Turbo Boil (Replaces: 5304522965) |
|
Immediately | $ 38.18 | ||||
| NI | 5304529020 | Harness, Wiring, Energy Regulatr |
|
$ 129.32 | |||||
| NI | 5304535366 | Harness, Wiring, Knobs, Backlit |
|
$ 82.99 | |||||
| NI | 5304529016 | Harness, Wiring, Macs Panel, To Ui Board |
|
$ 25.73 | |||||
| NIA | 5304528293 | Screw, T20, 8-18 X .79 |
|
- | |||||
| NIA | 5304533469 | Standoff, Harness, Plastic |
|
- | |||||
| NIA | 349479702 | Screw, Pt T20, 4 X 10, Black |
|
$ 2.54 |
