SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram

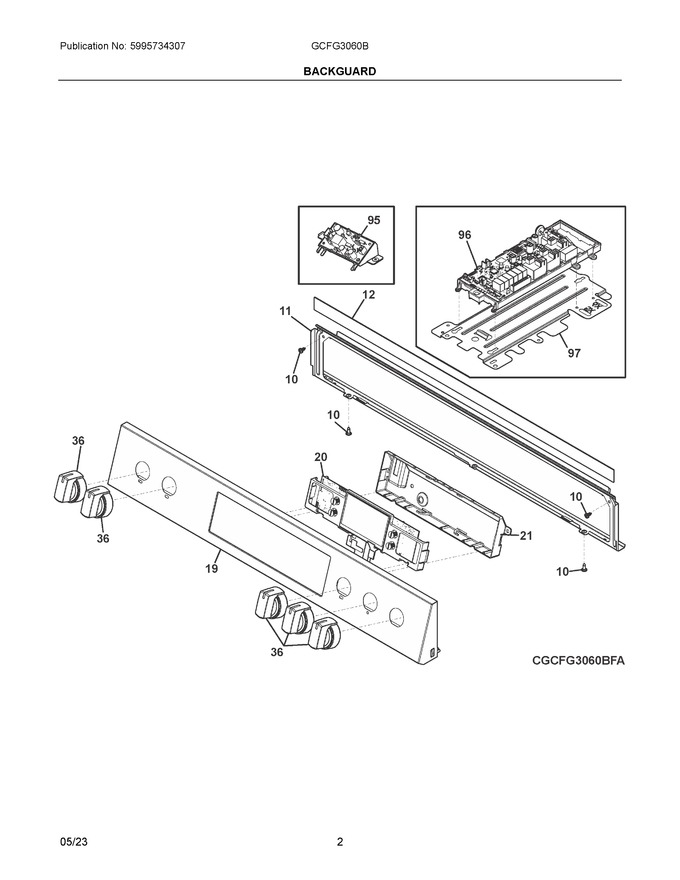

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 28.14
12	5304534089		Seal, Maintop Panel		Appelez-nous	-
19	5304528394		Control Panel, Assembly, Black Stainless				$ 209.54
20	5304535289		Controller, Electronic, Oven, Ui730			Immediately	$ 261.97
21	5304535290		Housing, Control				$ 51.80
36	5304528425		Knob Assembly		Appelez-nous	-
95	5304535286		Board Assembly, Backlit			Immediately	$ 63.56
96	140171068053		Pc Board, Power, Ovc   (Replaces: 5304525430)			Immediately	$ 141.03
97	5304528373		Bracket, Ovc Board			Immediately	$ 24.59
NI	5304528318		Screw, #8-18 X 10		Appelez-nous	-
NI	5304534087		Harness, Wiring, Macs Panel, To Ui			Immediately	$ 56.95
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NIB	5304533469		Standoff, Harness, Plastic		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
