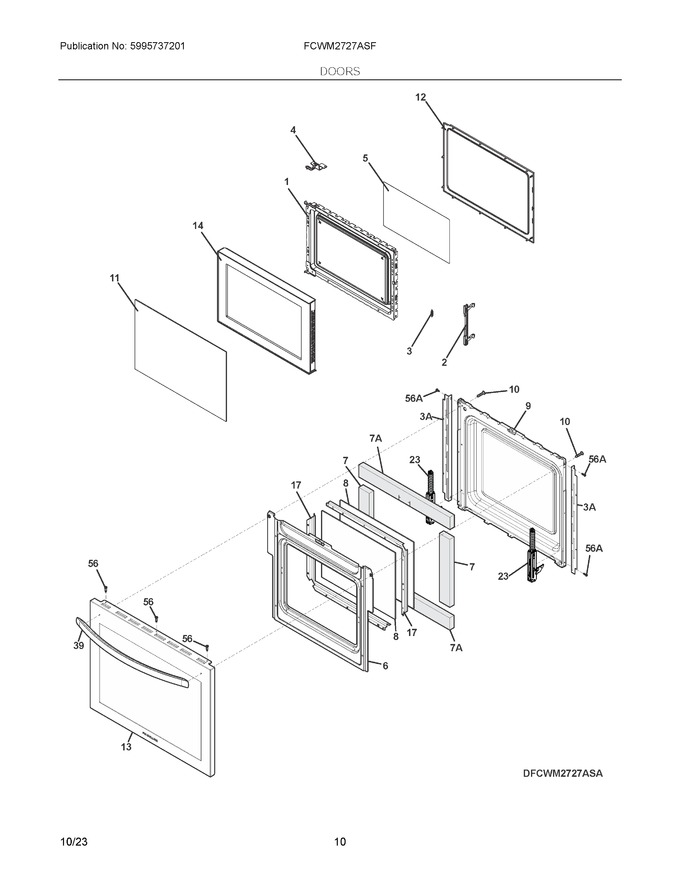

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304520033		Frame Assembly, Door		Appelez-nous	-
2	5304519330		Latch Assembly, Door				$ 13.66
3	5304520034		Spring, Latch		Appelez-nous	-
4	5304519333		Hinge, Door, Upper				$ 27.36
5	5304520036		Film, Door, Inner				$ 13.66
6	139014203		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 18.11
8	139085803		Glass, Door, Inner, (2), Eko			Immediately	$ 120.50
9	139002917		Liner, Oven Door				$ 126.45
10	5304414648		Screw, Handle Mtg.				$ 15.75
11	5304520037		Screen, Door				$ 137.47
12	5304520035		Gasket, Door		Appelez-nous	-
13	5304525464		Door Assembly, Outer, Glass/steel, Stainless, W/logo				$ 202.52
14	5304520038		Panel, Door				$ 116.11
17	318264735		Spacer, Glass, (2)				$ 71.66
23	808930405		Hinge, Door, Blue, Soft Close				$ 111.51
39	5304512968		Handle, Door, Stainless				$ 134.15
56	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
3A	5304525458		Trim, Door, Black, Side				$ 44.38
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 15.75
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)				$ 15.75
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
