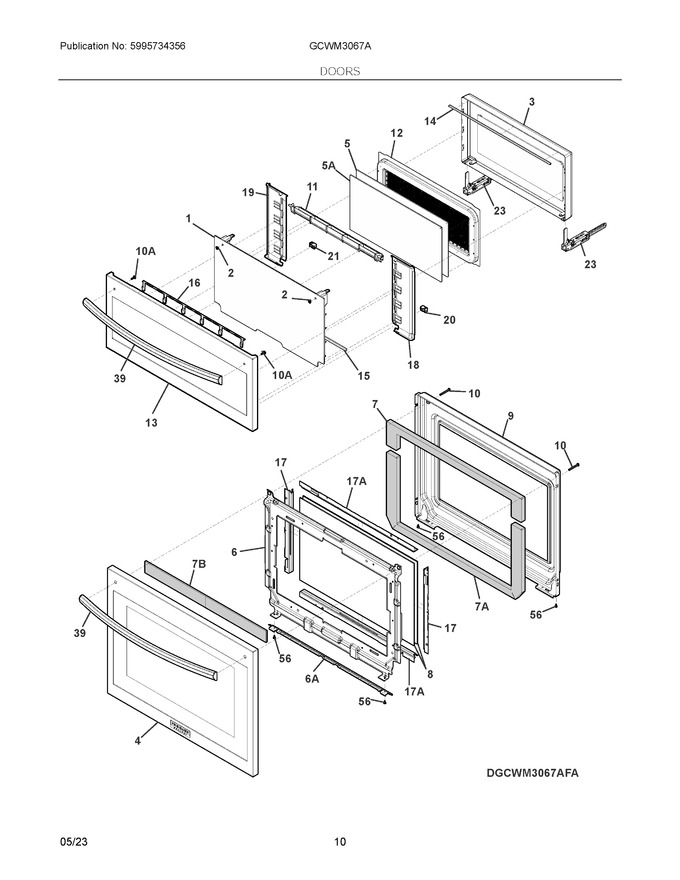

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555118433		Door Glass, Assembly, Front, Microwave			Immediately	$ 168.14
2	330158601		Spacer, Door Handle		Appelez-nous	-
3	561626486		Door Frame, Inner, Microwave, W/glass			Immediately	$ 246.05
4	5304526650		Door Assembly, Outer, Steel/glass, Black Stainless, W/badge				$ 288.48
5	807625502		Glass, Door, Inner, W/graphics		Appelez-nous	-
6	5304526282		Shield, Wool, Door				$ 77.52
7	140293846022		Insulation, Door, Top   (Replaces: 5304526656)			Immediately	$ 7.94
8	5304526387		Glass, Door, Inner, Shr, Pf			Immediately	$ 184.54
9	5304530464		Liner, Oven Door, Midnight Black			Immediately	$ 90.78
10	316433305		Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg.			Immediately	$ 2.53
12	555040920		Inner Door, Assembly, Microwave			Immediately	$ 205.10
13	5304530414		Door Assembly, Outer, Steel/glass, Black Stainless, Microwave				$ 405.54
14	808082001		Gasket, Door Cover, Microwave				$ 100.33
15	808140001		Tape, Drip, Front, Door Glass				$ 40.78
16	5304525161		Cover, Door Top, Plastic				$ 32.11
17	5304526284		Bracket, Glass Pack, Verticle			Immediately	$ 13.48
18	5304530399		Cover, Door Column, Rh			Immediately	$ 54.85
19	5304530400		Cover, Door Column, Lh			Immediately	$ 53.26
20	5304525159		Stopper, Plastic, Rh Door				$ 10.95
21	5304525160		Stopper, Plastic, Lh Door				$ 10.95
39	5304534842		Handle, Door, Black Stainless, Gallery   (Replaces: 5304526488)			Immediately	$ 97.73
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
10A	5303310510		Screw, 10-24 X 0.625				$ 15.75
17A	5304526285		Bracket, Glass Pack, Horizontal				$ 10.11
5A	555033602		Glass, Door, Inner				$ 100.28
6A	5304530443		Bracket, Door Protection, Lower				$ 36.24
7A	5304526655		Insulation, Door, Bottom			Immediately	$ 10.11
7B	5304526530		Insulation, Foil, Door				$ 16.85
NI	349479701		Screw, Pt T20, 4 X 10, (8)		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
