01 - Cover Sheet


02 - Control Panel / Top Burners

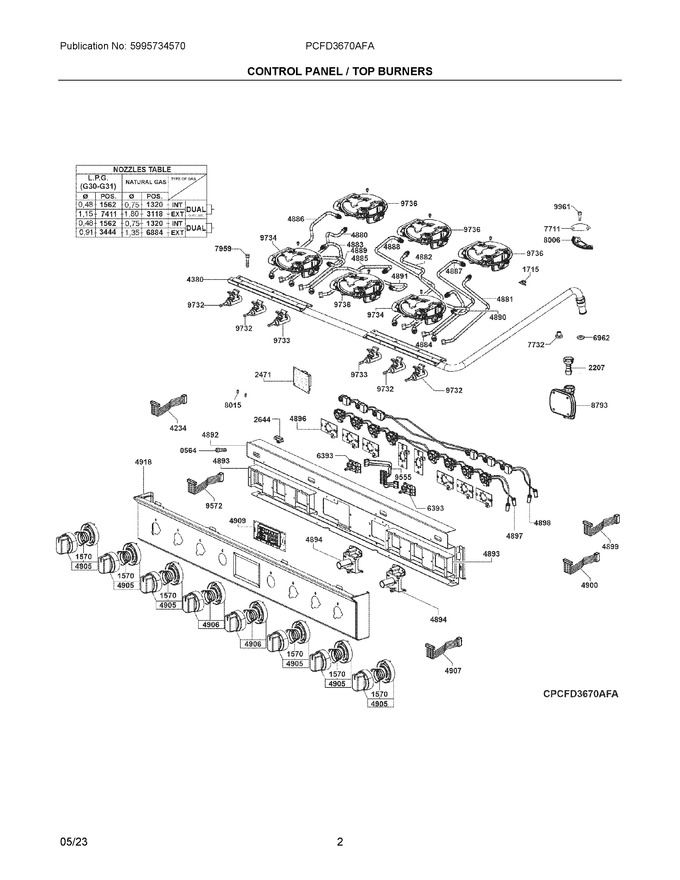

03 - Body


04 - Main Top


05 - Door / Cooling-venting


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
564	5304529223		Screw, Bracket, (10), Control Panel		Appelez-nous	-
1320	5304527459		Orifice, Natural Gas, D.0, 75-750btu, Internal, Dual Burner			Immediately	$ 32.96
1562	5304527467		Orifice, Lp Gas, D.0, 48-750 Btu, Internal, Dual Burner			Immediately	$ 36.60
1570	5304527483		Spring, Knob				$ 17.75
1715	5304527485		Spring Clip, Burner				$ 16.69
2207	5304529231		Connector, Manifold Tube		Appelez-nous	-
2471	5304529252		Pc Board, Control				$ 219.96
2644	5304527708		Clamp, Cable, (2)		Appelez-nous	-
3118	5304527435		Orifice, Natural Gas, D.1, 80-18k Btu, External, (2), Dual Burner			Immediately	$ 32.91
3444	5304527696		Orifice, Lp Gas, D.0, 91-12k Btu, External, (4), Dual Burner				$ 25.63
4234	5304527487		Harness, Wiring, Communication, Flat		Appelez-nous	-
4380	5304531587		Manifold, Tubing		Appelez-nous	-
4880	5304531598		Tubing, Lr Burner, Front Connect		Appelez-nous	-
4881	5304531599		Tubing, Rr Burner, Front Connect		Appelez-nous	-
4882	5304531600		Tubing, Cr Burner, Front Connect		Appelez-nous	-
4883	5304531601		Tubing, Lf Burner, Rear Connect		Appelez-nous	-
4884	5304531602		Tubing, Rf Burner, Rear Connect		Appelez-nous	-
4885	5304531603		Tubing, Cf Burner, Rear Connect		Appelez-nous	-
4886	5304531604		Tubing, Lr Burner, Side Connect		Appelez-nous	-
4887	5304531605		Tubing, Rr Burner, Side Connect		Appelez-nous	-
4888	5304531606		Tubing, Cr Burner, Side Connect		Appelez-nous	-
4889	5304531607		Tubing, Lf Burner, Side Connect		Appelez-nous	-
4890	5304531608		Tubing, Rf Burner, Side Connect		Appelez-nous	-
4891	5304531609		Tubing, Cf Burner, Side Connect			Immediately	$ 64.05
4892	5304531610		Support, Front Panel		Appelez-nous	-
4893	5304531611		Support, Control Valves				$ 72.20
4894	5304531612		Support, Potentiometer				$ 26.80
4896	5304531614		Pc Board, Power Module, Burner Knob				$ 87.81
4897	5304531615		Micro Switch, Assembly, 8 Switches, W/wiring			Immediately	$ 163.96
4898	5304531616		Micro Switch, Assembly, 6 Switches, W/wiring			Immediately	$ 163.85
4899	5304531617		Cable, Communication			Immediately	$ 84.72
4900	5304531618		Cable, Communication			Immediately	$ 78.44
4905	5304531619		Knob Assembly, Top Burner, Stainless, W/spring		Appelez-nous	-
4906	5304531620		Knob Assembly, Oven Control, Stainless, W/spring			Immediately	$ 205.78
4907	5304531621		Cable, Lighting				$ 154.65
4909	4056066766		Controller, Electronic, Oven   (Replaces: 5304534038)			Immediately	$ 232.67
4918	5304531629		Control Panel, Stainless, 4918				$ 384.45
6393	5304527476		Switch, Potentiometer, (2)				$ 125.13
6884	5304527695		Orifice, Natural Gas, D.1, 35-12k Btu, External, (4), Dual Burner			Immediately	$ 59.55
6962	5304527447		Seal, Gas, (2)				$ 31.39
7411	5304527438		Orifice, Lp Gas, D.1, 15-18k Btu, External, (2), Dual Burner				$ 28.76
7711	5304527497		Plate, Burner		Appelez-nous	-
7732	5304527461		Cap, Gas Pipe				$ 12.13
7959	5304527504		Screw, Burner Valve, (12)		Appelez-nous	-
8006	5304527505		Gasket, Burner, Auxiliary		Appelez-nous	-
8015	5304527772		Spacer, Electronic Unit		Appelez-nous	-
8793	5304527531		Regulator, Gas Stabilizer				$ 270.68
9555	5304527536		Harness, Wiring, Potentiometers				$ 209.66
9572	5304532116		Harness, Wiring, Connection, Display				$ 118.26
9732	5304527750		Valve, Dual Burner, (4)				$ 220.94
9733	5304527544		Valve, Dual Burner, (2)				$ 210.83
9734	5304527545		Holder Assembly, Dual Burner, 750/18000 Btu, (2), D.1, 80 + D.0, 75				$ 191.11
9736	5304527751		Holder Assembly, Dual Burner, 750/12000 Btu, (4), D.1, 35 + D.0, 75				$ 192.07
9961	5304527449		Screw, Burner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
