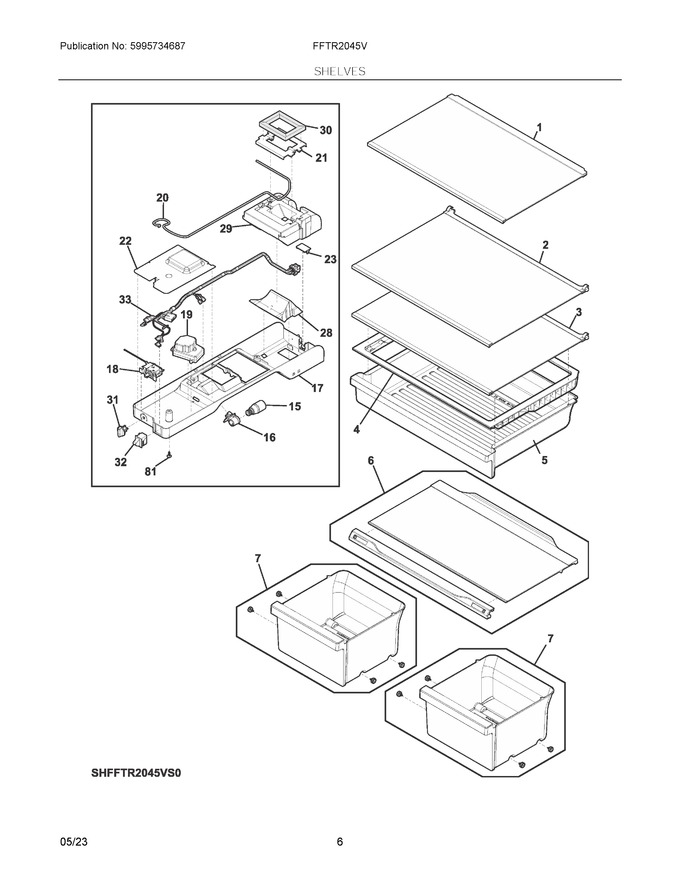

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304534973		Shelf Assembly, Freezer, Glass, W/trim			Immediately	$ 46.58
2	5304534980		Shelf Assembly, Refrigerator, Glass, W/trim				$ 57.15
3	5304534983		Shelf Assembly, Refrigerator, Glass, Deli Drawer, W/trim			Immediately	$ 58.04
4	5304524136		Carriage, Deli Drawer, Fill Width				$ 71.01
5	5304538633		Drawer, Deli, Full Width   (Replaces: 5304524137)			Immediately	$ 77.84
6	5304534981		Cover Assembly, Crisper			Immediately	$ 54.74
7	5304522242		Pan Assembly, Crisper, W/rollers			Immediately	$ 109.88
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 44.66
16	5304522315		Socket, Led Light			Immediately	$ 11.80
17	5304524317		Housing, Control Box			Immediately	$ 114.60
18	5304522330		Cold Control, Assembly, W/capillary			Immediately	$ 82.94
19	5304526183		Timer, Defrost   (Replaces: 5304522331)			Immediately	$ 74.44
20	5304522332		Tubing, Capillary, Plastic				$ 9.27
21	5304522333		Plate, Diffuser				$ 25.28
23	5304522335		Shield, Electrical, Rear				$ 9.27
28	5304522317		Diffuser, Control Box, Bottom				$ 18.60
29	5304522336		Diffuser, Control Box, Top				$ 18.60
30	5304520493		Seal, Air Duct, Top			Immediately	$ 20.22
31	5304522337		Knob, Control				$ 8.43
32	140118119027		Switch, Door/light, White   (Replaces: 5304520495)			Immediately	$ 4.83
33	5304522338		Harness, Wiring, Control Box				$ 75.05
81	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.37
