SELECT A DIAGRAM

01 - Cover Sheet

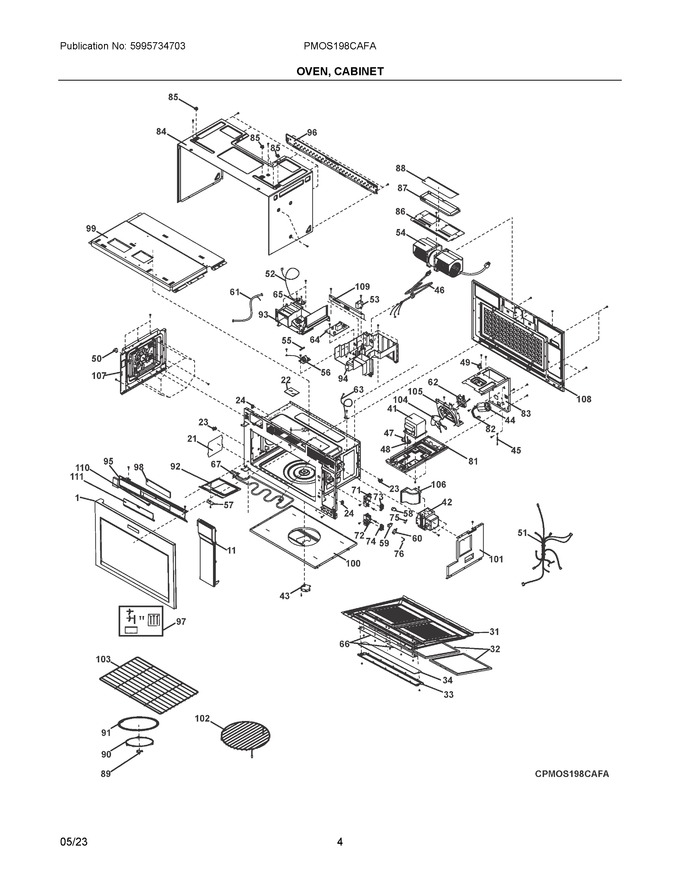

02 - Oven, Cabinet


03 - Control Panel, Door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304534705		Door Assembly, Complete, Stainless				$ 566.92
11	5304534700		Control Panel, Assembly, Complete			Immediately	$ 335.92
21	5304523276		Cover, Wave Guide			Immediately	$ 13.35
22	5304534632		Lens, Cavity Lamp		Appelez-nous	-
23	5304514287		Support, Shelf, Rhf/lhr				$ 12.05
24	5304514283		Support, Shelf, Lhf/rhr				$ 12.16
31	5304534633		Base Plate			Immediately	$ 153.85
32	5304513468		Filter, Grease				$ 177.42
33	5304534634		Bracket, Lamp Glass				$ 25.86
34	5304534635		Glass, Lamp			Immediately	$ 28.22
41	5304513457		Transformer, High Voltage				$ 460.74
42	5304521576		Magnetron, High Voltage				$ 302.99
43	5304513471		Motor, Turntable			Immediately	$ 102.44
44	5304518895		Capacitor, High Voltage				$ 98.96
45	5304513459		Diode, High Voltage			Immediately	$ 33.74
46	5304512501		Power Cord, Electric				$ 118.08
47	5304513462		Thermostat, 120/0 *v			Immediately	$ 28.38
48	5304513463		Thermostat, 70/40 *v				$ 29.99
49	5304513461		Thermostat, 160/95 *v			Immediately	$ 29.94
50	5304515313		Thermostat, 160/95			Immediately	$ 35.18
51	5304534636		Harness, Wiring, Main				$ 194.97
52	5304509652		Sensor, Humidity				$ 339.40
53	5304512525		Capacitor, Start		Appelez-nous	-
54	5304513464		Fan Assembly, Venting, W/motor				$ 619.63
55	5304517874		Fuse, Noise Filter			Immediately	$ 14.17
56	5304525109		Filter, Noise, Electronic				$ 95.55
57	5304517872		Lamp, Led			Immediately	$ 49.16
58	5304509460		Switch, Interlock, Primary			Immediately	$ 50.30
59	5304509459		Switch, Monitor			Immediately	$ 34.27
60	5304515182		Switch, Interlock, Secondary			Immediately	$ 38.71
61	5304504073		Wire, Connector, Pc Board				$ 145.53
62	5304513476		Motor, Fan				$ 211.47
63	5304527859		Thermistor				$ 36.15
64	5304527860		Pc Board, Dc Motor			Immediately	$ 164.67
65	5304534637		Thermostat, Safety, 180/145 Volt		Appelez-nous	-
66	5304534638		Lamp, Led			Immediately	$ 91.84
67	5304534703		Element, Heating				$ 111.38
71	5304523259		Bracket, Interlock, Upper			Immediately	$ 20.62
72	5304523260		Bracket, Interlock, Lower			Immediately	$ 20.62
73	5304523261		Lever, Interlock, Upper				$ 9.00
74	5304523262		Lever, Interlock, Lower				$ 8.84
75	5304523264		Spring, Interlock, Lower				$ 8.84
76	5304523263		Spring, Interlock, Upper				$ 8.84
81	5304513460		Plate, Hv Transformer, Mounting		Appelez-nous	-
82	5304513482		Holder, Hv Capacitor		Appelez-nous	-
83	5304513479		Duct, Air Guide, Back		Appelez-nous	-
84	5304527861		Wrapper, Outer		Appelez-nous	-
85	5304509436		Mounting Nut Kit			Immediately	$ 16.34
86	5304513481		Cover, Vent Motor				$ 57.09
87	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 28.13
88	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 30.81
89	5304534640		Coupler, Turntable				$ 33.53
90	5304509438		Support, Turntable Ring				$ 58.00
91	5304513473		Tray, Turn Table, Glass				$ 232.46
92	5304534641		Cover, Lamp, Cavity		Appelez-nous	-
93	5304534642		Air Duct, Lh		Appelez-nous	-
94	5304534643		Air Duct, Rh		Appelez-nous	-
95	5304534644		Grill, Vent				$ 93.45
96	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 66.25
97	5304513469		Mounting Kit, W/templates			Immediately	$ 69.31
98	FRPAMRAF		Filter, Charcoal, 2" X 10   (Replaces: 5304464577)			Immediately	$ 42.07
99	5304534645		Insulation Assembly, Upper		Appelez-nous	-
100	5304527883		Insulation, Assembly, Lower		Appelez-nous	-
101	5304527884		Insulation, Assembly, Rh		Appelez-nous	-
102	5304523266		Rack, Round, Wire				$ 89.96
103	5304527865		Rack, Oven Shelf				$ 125.84
104	5304509473		Fan Blade, Cooling Fan				$ 17.19
105	5304513475		Guide, Fan		Appelez-nous	-
106	5304527866		Deflector, Wind Guide, Magnetron		Appelez-nous	-
107	5304534704		Convection, Assembly			Immediately	$ 241.51
108	5304527867		Panel, Back Plate		Appelez-nous	-
109	5304513484		Shield, Air		Appelez-nous	-
110	5304533650		Catch, Vent Door				$ 16.17
111	5304534647		Cover, Charcoal Filter				$ 27.47

    View Diagram in Separate Window       Print Part List
