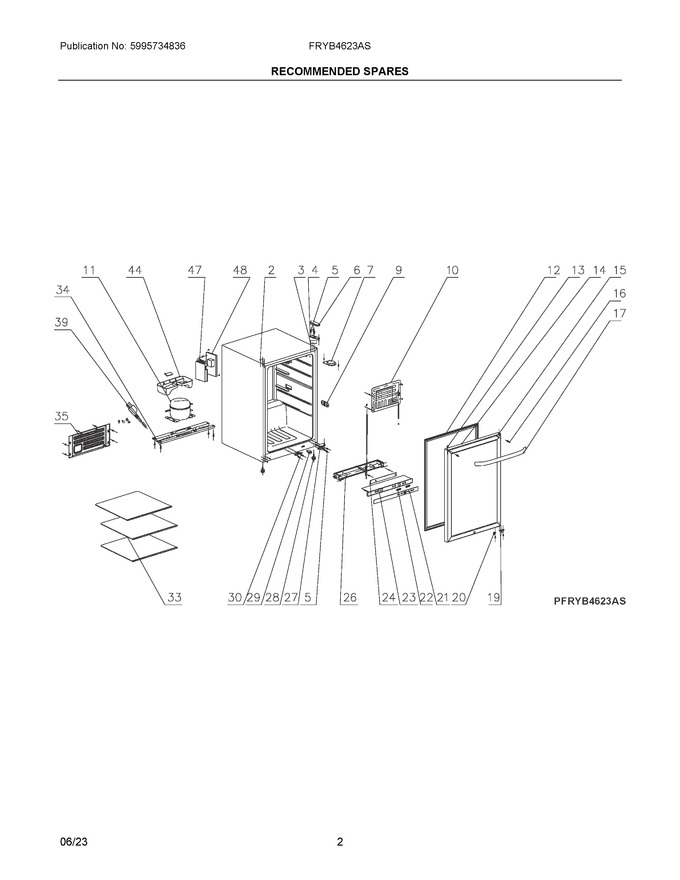

01 - Cover Sheet


02 - Recommended Spares


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304479779		Plug, Hinge Hole, Cabinet				$ 8.45
4	5304479781		Hinge, Top				$ 62.11
5	5304480019		Screw, Tapping-locking				$ 7.83
6	5304479782		Cover, Top Hinge				$ 21.16
7	5304479803		Lamp Assembly, Led				$ 94.98
9	5304479805		Cover, Temp Sensor			Immediately	$ 49.15
10	5304534141		Evaporator				$ 167.19
11	5304531685		Compressor, Fixed Speed, Reciprocating				$ 443.12
12	5304479808		Gasket, Door				$ 130.10
13	5304479809		Plug, Door Hole				$ 19.13
14	5304534140		Door Assembly, Complete, Glass, Stainless		Appelez-nous	-
15	5304513161		Bearing, Top Hinge, (2)				$ 2.83
16	5304513163		Screw, Shoulder, (2), Handle Mtg.			Immediately	$ 34.89
17	5304479812		Handle Assembly, Door				$ 188.10
19	5304479790		Stop, Door				$ 10.63
20	5304531677		Switch, Light				$ 4.58
21	5304479831		Control Panel, Console				$ 141.80
22	5304531679		Button, Control		Appelez-nous	-
23	5304479815		Overlay, Control Board, Cover				$ 54.34
24	5304507016		Pc Board, Input, Display				$ 259.76
26	5304531680		Housing, Control Panel		Appelez-nous	-
27	5304520285		Hinge, Lower				$ 58.39
28	5304479819		Foot, Leveling Screw, Cabinet				$ 26.23
29	5304479794		Switch, Lamp/light			Immediately	$ 53.87
30	5304534142		Catch, Door Lock		Appelez-nous	-
33	5304479833		Shelf, Glass				$ 183.56
34	5304479825		Base, Compressor		Appelez-nous	-
35	5304479822		Cover, Access, Rear		Appelez-nous	-
39	5304531682		Cord, Power				$ 44.56
44	5304531683		Tray, Drip		Appelez-nous	-
47	5304531684		Housing, Main Control		Appelez-nous	-
48	5304507015		Pc Board, Power/main				$ 397.08
NIA	5304479971		Thermistor, Temp Sensor				$ 85.37
NIA	5304534143		Relay, Starter		Appelez-nous	-
NIB	5304534144		Overload, Protector		Appelez-nous	-
