SELECT A DIAGRAM
01 - Cover Sheet
02 - Oven, Cabinet

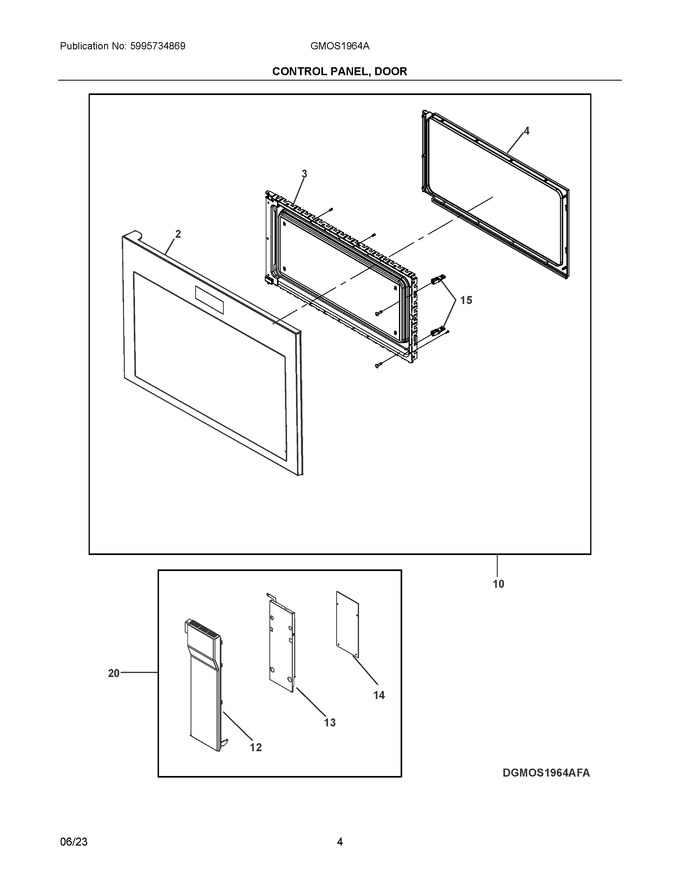

03 - Control Panel, Door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304534772 | Door Assembly, Outer, Black Stainless, W/badge (Replaces: 5304534774) |
|
$ 658.93 | |||||
| 3 | 5304534775 | Door Frame, Assembly |
|
- | |||||
| 4 | 5304523248 | Gasket, Door |
|
$ 18.21 | |||||
| 10 | 5304534772 | Door Assembly, Complete, Black Stainless |
|
$ 658.93 | |||||
| 12 | 5304523252 | Panel, Control |
|
Immediately | $ 108.64 | ||||
| 13 | 5304523253 | Shield, Control Panel |
|
$ 36.15 | |||||
| 14 | 5304534777 | Pc Board, Power, Control |
|
$ 198.08 | |||||
| 15 | 5304523249 | Latch, Door |
|
$ 9.74 | |||||
| 20 | 5304538955 | Control Panel, Assembly, Complete (Replaces: 5304534776) |
|
Immediately | $ 181.53 |
