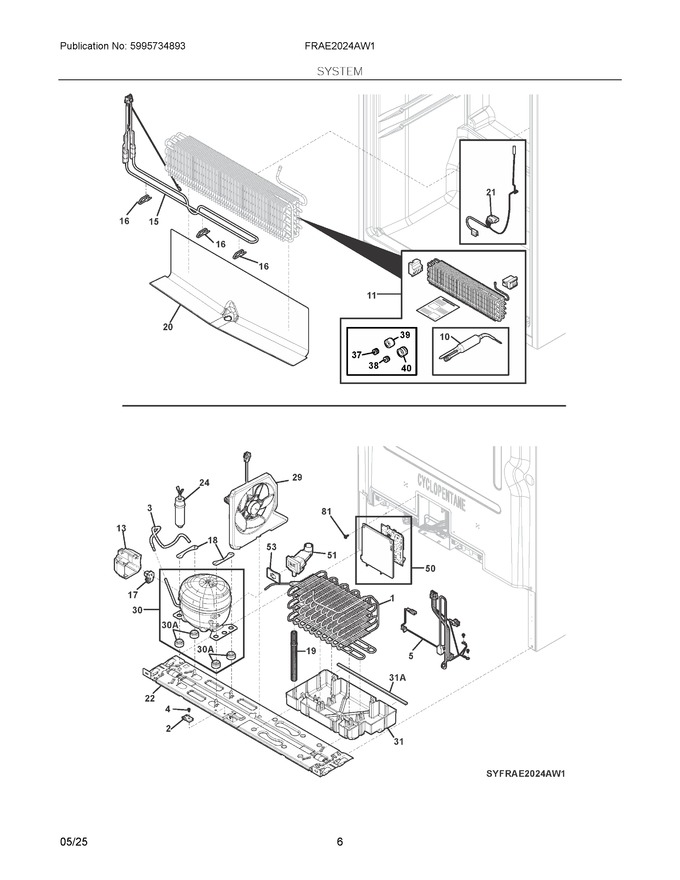

04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304534421 | Condenser, Dynamic (Replaces: 5304524200) |
|
- | |||||
| 2 | 5304454459 | Clamp, Cable |
|
- | |||||
| 3 | 5304524046 | Tube, Suction Jumper |
|
$ 21.69 | |||||
| 4 | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 | |||||
| 5 | 5304524022 | Harness, Wiring, Machine Compt. |
|
Immediately | $ 73.71 | ||||
| 10 | A19676501 | Filter, Drier, Service |
|
Immediately | $ 110.81 | ||||
| 11 | 5303918906 | Evaporator Kit, Service, W/dryer, & Lock Rings (Replaces: 5303918873) |
|
Immediately | $ 515.42 | ||||
| 13 | 5304522303 | Cover, Electricals, Compressor |
|
- | |||||
| 15 | 5304523833 | Heater, Defrost |
|
Immediately | $ 91.10 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 66.47 | ||||
| 17 | 5304538465 | Controller, Compressor Ptc (Replaces: 5304522267) |
|
Immediately | $ 37.24 | ||||
| 18 | 5304524607 | Clamp, Compressor |
|
$ 3.21 | |||||
| 19 | 5304525042 | Tube, Drain, Extension |
|
Immediately | $ 10.95 | ||||
| 20 | 5304524755 | Trough, Drain (Replaces: 5304523720) |
|
$ 57.04 | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 42.84 | ||||
| 22 | 5304523693 | Base Assembly, Compressor, W/rollers |
|
- | |||||
| 24 | 5304530011 | Capacitor |
|
Immediately | $ 30.95 | ||||
| 29 | 5304532166 | Fan Assembly, Condenser, W/shroud-foam |
|
$ 126.79 | |||||
| 30 | 5304519758 | Compressor, Assembly, Th1114hy, W/grommets |
|
Immediately | $ 434.22 | ||||
| 31 | 5304523709 | Pan, Drain |
|
$ 39.36 | |||||
| 37 | L13005643 | Lock Ring, Cap Tube, To Evaporator |
|
Immediately | $ 80.33 | ||||
| 38 | L13000629 | Lockring, Drier |
|
Immediately | $ 10.53 | ||||
| 39 | L13005654 | Lock Ring, Evaporator, To Suction |
|
Immediately | $ 11.20 | ||||
| 40 | L13000625 | Lockring, Drier |
|
Immediately | $ 13.78 | ||||
| 50 | 5304524126 | Main Board, Assembly, W/housing |
|
Immediately | $ 229.88 | ||||
| 51 | 5304530111 | Drain Jumper, Assembly, W/seal |
|
$ 21.69 | |||||
| 53 | 5304525744 | Cover, Drain Jumper |
|
$ 10.75 | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.37 | ||||
| 30A | 811978901 | Grommet, Compressor |
|
- | |||||
| 31A | 5304523724 | Seal, Drain Pan, Foam |
|
$ 5.63 | |||||
| NI | 30534600 | Clip, Plastic, W/adhesive |
|
$ 4.21 | |||||
| NI | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.37 | |||||
| NI | 218103403 | Wire Tie |
|
- |
