01 - Cover Sheet

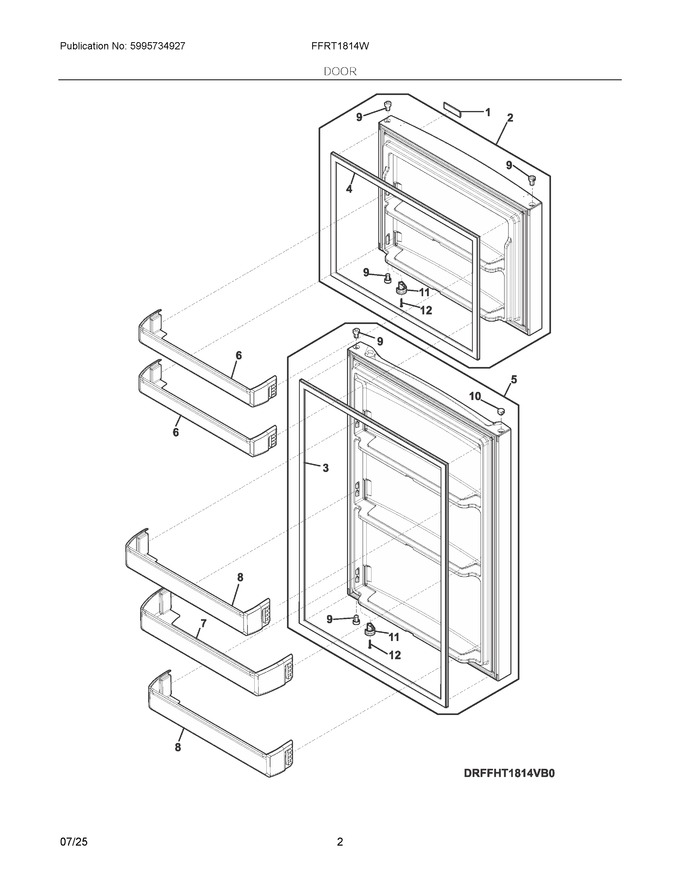

02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511144 | Badge, Frigidaire, White |
|
Immediately | $ 5.06 | ||||
| 2 | 5304530029 | Door Assembly, Freezer |
|
Immediately | $ 237.38 | ||||
| 3 | 5304528903 | Gasket, Door, Gray, Fresh Food |
|
Immediately | $ 227.91 | ||||
| 4 | 5304528904 | Gasket, Door, Gray, Freezer |
|
Immediately | $ 200.01 | ||||
| 5 | 140210779231 | Door Assembly, Fresh Food (Replaces: 5304530023) |
|
Immediately | $ 219.08 | ||||
| 6 | 5304519702 | Bin, Door, White, Freezer |
|
Immediately | $ 56.26 | ||||
| 7 | 5304522123 | Bin, Door, 6", White, Refrigerator |
|
Immediately | $ 78.61 | ||||
| 8 | 5304519703 | Bin, Door, 4", White, Refrigerator |
|
Immediately | $ 24.91 | ||||
| 9 | 5304519757 | Bearing, Hinge, White |
|
Immediately | $ 8.11 | ||||
| 10 | 5304519747 | Cover, Hinge Bearing, White |
|
$ 3.31 | |||||
| 11 | 5304519789 | Hook, Door Closer, White |
|
Immediately | $ 5.06 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 12.64 |
