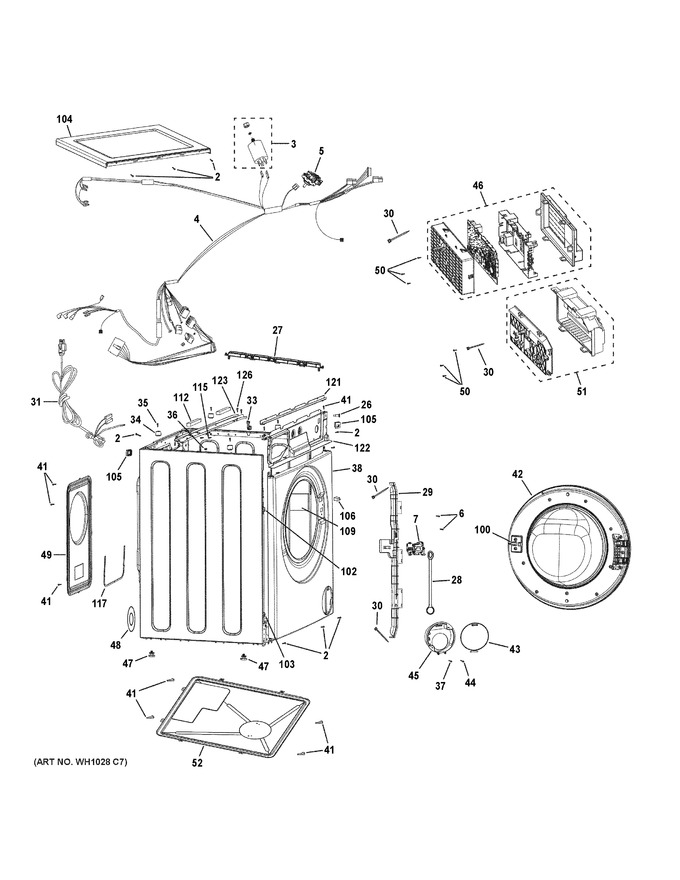

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet
Controls & Dispenser
Tub
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WH02X26236 | Screw M4*10 |
|
- | |||||
| 3 | WH43X28369 | Line Filter Assemby |
|
- | |||||
| 4 | WH19X28337 | Main Harness |
|
- | |||||
| 5 | WH12X27815 | Pressure Switch |
|
- | |||||
| 6 | WH02X26240 | Screw |
|
- | |||||
| 7 | WH01X28354 | Door Lock |
|
- | |||||
| 26 | WH02X28411 | Control Panel Aligning Screw M4*8 |
|
- | |||||
| 27 | WH19X26256 | Lower Harness Track |
|
- | |||||
| 28 | WH16X26579 | Manual Door Unlock Strap |
|
- | |||||
| 29 | WH19X26258 | Front Harness Track |
|
- | |||||
| 30 | WH01X26259 | Wire Tie |
|
- | |||||
| 31 | WH19X28346 | Power Cord |
|
- | |||||
| 33 | WH02X26263 | Spring Sheath Right |
|
- | |||||
| 34 | WH01X26264 | Top Panel Guide Pin |
|
- | |||||
| 35 | WH02X28370 | Top Panel Guide Pin Screw |
|
- | |||||
| 36 | WH02X26262 | Spring Sheath Left |
|
- | |||||
| 37 | WH02X26267 | Screw St3.5*12 |
|
- | |||||
| 38 | WH46X28499 | Front Panel |
|
- | |||||
| 41 | WE02X27505 | Hinge Screw |
|
- | |||||
| 42 | WH46X28348 | Door Asm |
|
- | |||||
| 43 | WH42X28355 | Drain Cleanout Access Door (white) |
|
- | |||||
| 44 | WH02X26189 | Tapping Screw |
|
- | |||||
| 45 | WH42X28356 | Access Door Frame |
|
- | |||||
| 46 | WH18X28357 | Power Board Asm |
|
- | |||||
| 47 | WH46X28359 | Leveling Leg |
|
- | |||||
| 48 | WH41X26282 | External Hose Guide |
|
- | |||||
| 49 | WH44X27615 | Rear Cover |
|
- | |||||
| 50 | WH02X26188 | Tapping Screw |
|
- | |||||
| 51 | WH18X28358 | Inverter Board Asm |
|
- | |||||
| 52 | WH17X26287 | Bottom Cover Plate |
|
- | |||||
| 100 | WH01X28362 | Door Strike |
|
- | |||||
| 102 | WH01X26843 | Upper Guide Pin |
|
- | |||||
| 103 | WH01X26844 | Lower Guide Pin |
|
- | |||||
| 104 | WE20X27513 | Top Cover |
|
$ 93.13 | |||||
| 105 | WH19X28403 | Rj45 Connector |
|
- | |||||
| 106 | WH18X28404 | Door Switch |
|
- | |||||
| 109 | WH01X28409 | Square Felt |
|
- | |||||
| 112 | WH01X28406 | Foam Pad (crossbrace) |
|
- | |||||
| 115 | WH02X28410 | Ground Screw |
|
- | |||||
| 117 | WH08X28414 | Rear Cover Seal |
|
- | |||||
| 121 | WE01X27779 | Water Channel |
|
- | |||||
| 122 | WH17X28401 | Control Panel Mounting Bracket |
|
- | |||||
| 123 | WH13X36597 | Cross Brace |
|
- | |||||
| 126 | WE02X27154 | Heated Air Plenum Cover Screw |
|
- |
