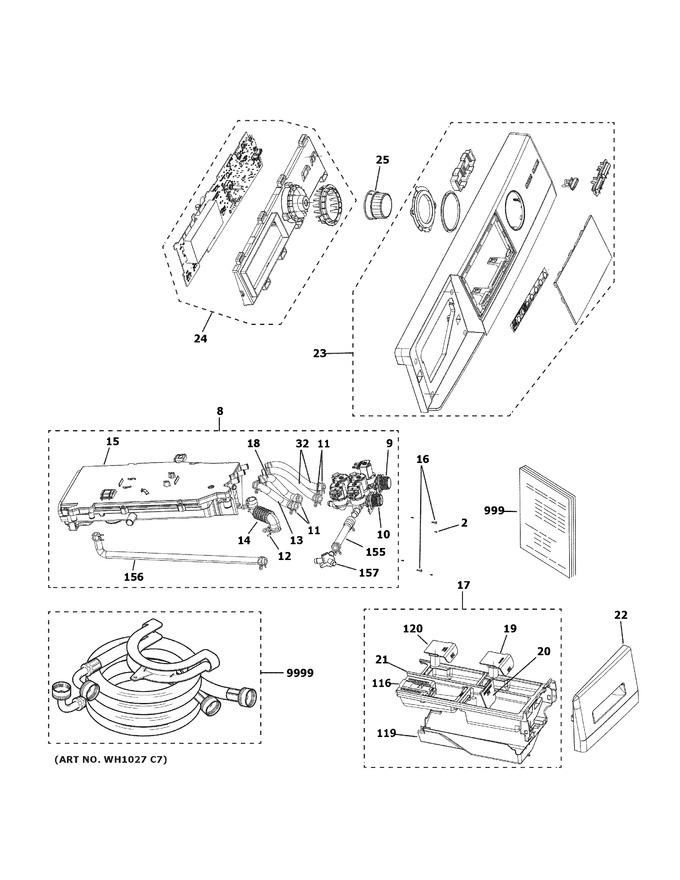

SELECT A DIAGRAM

Blower & Heating System


Cabinet


Controls & Dispenser


Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WH02X26236		Screw M4*10		Appelez-nous	-
8	WH42X36121		Dispenser Housing & Hoses Assembly Gfq14		Appelez-nous	-
8	WH42X29948		Dispenser Housing & Water Valve W/hoses		Appelez-nous	-
9	WH13X28374		Hot Water Valve				$ 47.10
10	WG04F12485		Cold Water Valve   (Replaces: WH23X29940)			Immediately	$ 128.77
11	WH01X26244		Tube Clamp		Appelez-nous	-
12	WH01X26245		Tub Vent Hose Clamp		Appelez-nous	-
13	WE41X29923		Water Inlet Hose		Appelez-nous	-
14	WH41X28340		Tub Vent Hose		Appelez-nous	-
15	WH42X29949		Dispenser Housing		Appelez-nous	-
16	WH02X26514		Front Dispenser Housing Screw St4x14		Appelez-nous	-
17	WH47X28597		Dispenser Drawer Handle Chrome		Appelez-nous	-
18	WH01X28398		Tube Valve-to-dispenser		Appelez-nous	-
19	WH43X28343		Softener Siphon Cap		Appelez-nous	-
20	WH15X28419		Disp Liquid To Powder Flap		Appelez-nous	-
21	WH47X28342		Dispenser Drawer		Appelez-nous	-
22	WH13X29946		Dispenser Drawer Handle		Appelez-nous	-
23	WE13X29951		Control Panel		Appelez-nous	-
24	WE22X29945		User Interface Board & Bracket		Appelez-nous	-
25	WH11X26254		Cycle Select Knob		Appelez-nous	-
32	WE41X29936		Soft Tube		Appelez-nous	-
116	WH47X28413		Drawer Release Lever		Appelez-nous	-
119	WH47X28399		Disp Drawer Guiding Panel		Appelez-nous	-
120	WH47X28400		Bleach Siphon Cap		Appelez-nous	-
155	WE41X29934		Valve To Y-connector Hose		Appelez-nous	-
156	WE41X29932		Soft Tube		Appelez-nous	-
157	WE01X29920		Y-shaped Connector		Appelez-nous	-
999	31-3000232		Pm Mini Manual And Wiring		Appelez-nous	-
999	49-3000231		Pm Quick Owners Manual		Appelez-nous	-
999	49-3000230		Pm Owners And Install		Appelez-nous	-
9999	WH41X28683		Inlet Hoses		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
