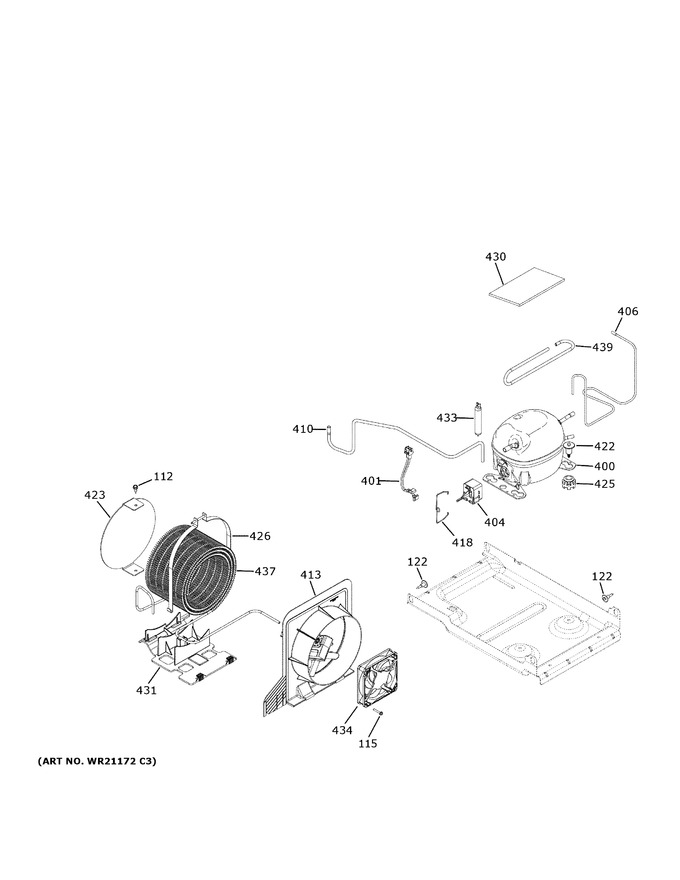

Machine Compartment
Shelves & Drawers
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | WR01X10635 | Scr 8-32 Ca Ihxw .625 S |
|
- | |||||
| 115 | WR01X31121 | Screw 8-19 Hi/lo Pnp Ss |
|
- | |||||
| 122 | WR01X10685 | Scr 8-18 Ab Ihw |
|
- | |||||
| 400 | WR87X33327 | Compressor |
|
- | |||||
| 401 | WR55X29011 | Compressor Jumper Harness |
|
- | |||||
| 404 | WR55X32767 | Ol Ptcr Combo |
|
- | |||||
| 406 | WR84X32741 | Refrigerator Discharge Jumper |
|
- | |||||
| 410 | WR84X32753 | Refrigerator Suction Tube |
|
- | |||||
| 413 | WR02X32835 | Condenser Fan Housing |
|
- | |||||
| 418 | WR02X32759 | Retainer Clip |
|
- | |||||
| 422 | WR02X32757 | Compressor Mounting Bolt |
|
- | |||||
| 423 | WR02X32844 | Condenser Baffle |
|
- | |||||
| 425 | WR02X32859 | Compressor Grommet |
|
- | |||||
| 426 | WR02X32752 | Condenser Strap |
|
- | |||||
| 430 | WR01F00026 | Dampener Compressor (Replaces: WR02X13428) |
|
Immediately | $ 38.97 | ||||
| 431 | WR02X32807 | Condenser Support |
|
- | |||||
| 433 | WR87X30875 | R600 Drier W/ Red Cap |
|
- | |||||
| 434 | WR60X31633 | Condenser Fan |
|
- | |||||
| 437 | WR87X32746 | Condenser |
|
- | |||||
| 439 | WR84X32784 | Refrigerator Process Tube |
|
- |
