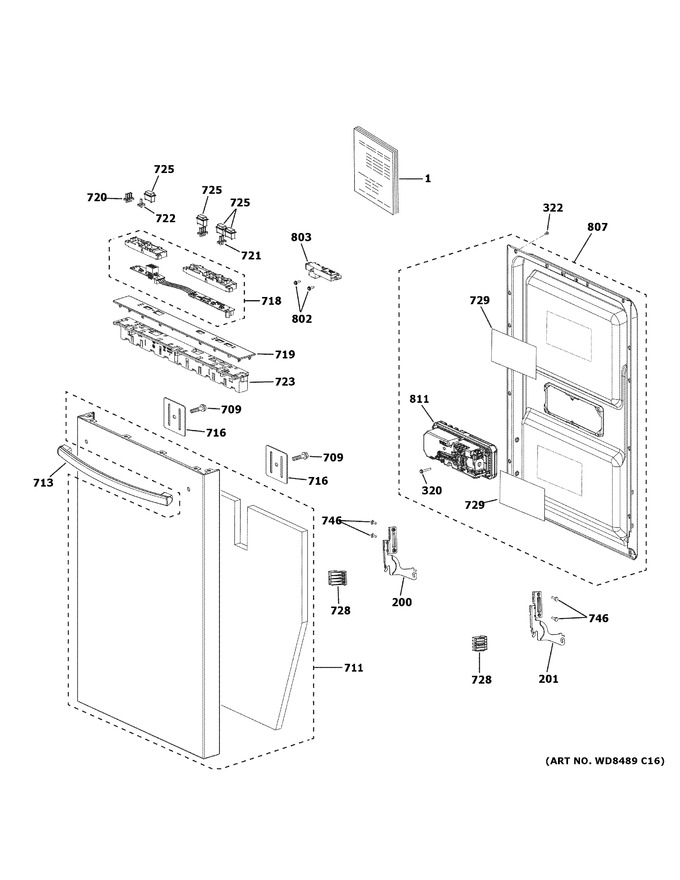

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-30895 | Pm Mini-manual |
|
- | |||||
| 1 | 31-4000247 | Pm Install Instructions |
|
- | |||||
| 1 | 49-55124 | Pm Owners Manual |
|
- | |||||
| 200 | WD01X24738 | Hinge Mechanism Lh |
|
- | |||||
| 201 | WD01X24739 | Hinge Mechanism Rh |
|
- | |||||
| 320 | WD02X24690 | Screw |
|
- | |||||
| 322 | WD02X27558 | Screw |
|
- | |||||
| 709 | WD02X25064 | Handle Screw |
|
- | |||||
| 711 | WD27X27341 | White Outer Door Asm |
|
- | |||||
| 713 | WD09X27338 | White Door Handle |
|
- | |||||
| 716 | WD01X25062 | Handle Bracket |
|
- | |||||
| 718 | WD21X32839 | Ui Control Asm |
|
- | |||||
| 719 | WD34X24733 | Console Cover Gdt Ww |
|
- | |||||
| 720 | WD02X26239 | Light Pipe 3 |
|
- | |||||
| 721 | WD02X26241 | Light Pipe 2 |
|
- | |||||
| 722 | WD02X26240 | Light Pipe 1 |
|
- | |||||
| 723 | WD12X26198 | Console |
|
- | |||||
| 725 | WD09X24603 | Buttons White |
|
- | |||||
| 728 | WD01X26238 | Door Supporting Block |
|
- | |||||
| 729 | WD01X25807 | Door Supporting Foam |
|
- | |||||
| 746 | WD02X24617 | Screw |
|
- | |||||
| 802 | WD02X24697 | Screw Latch Asm |
|
- | |||||
| 803 | WD12X24644 | Door Latch |
|
- | |||||
| 807 | WD27X32800 | Inner Door Asm |
|
- | |||||
| 811 | WD12X32801 | Detergent Module |
|
- |
