New Model Search:

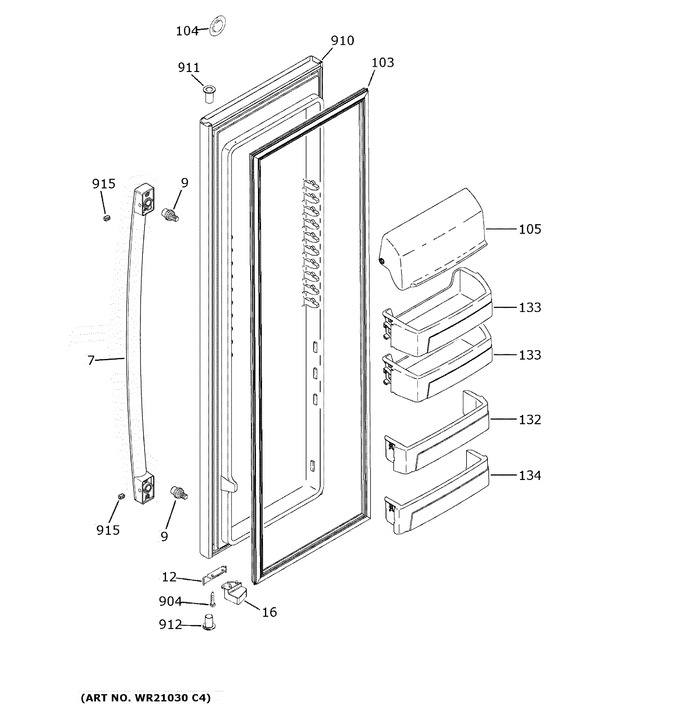

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | WR12X31510 | White Handle Door Asm |
|
- | |||||
| 9 | WR01A01801 | Door Handle Fastener (Replaces: WR01X11007) |
|
Immediately | $ 11.44 | ||||
| 12 | WR02X13424 | Door Stop |
|
- | |||||
| 16 | WR02X10638 | Cam Closure Fz White |
|
- | |||||
| 103 | WR24X10155 | Gasket Door Ff Wh |
|
- | |||||
| 104 | WR04X29994 | Ge Badge |
|
- | |||||
| 105 | WR22X24438 | Door Dairy |
|
- | |||||
| 132 | WR71X24430 | Shelf Fixed Ff |
|
- | |||||
| 133 | WR71X38318 | Shelf Module Ff |
|
- | |||||
| 134 | WR71X24429 | Shelf Fixed Ff |
|
- | |||||
| 904 | WR01A00637 | Scr 10-16 (Replaces: WR01X10611) |
|
$ 3.57 | |||||
| 910 | WR78X24445 | Door Foam Asm Ff |
|
- | |||||
| 911 | WR01X10955 | Thimble Door |
|
- | |||||
| 912 | WR01X10952 | Thimble Door |
|
- | |||||
| 915 | WR01X20424 | Set Screw (9.5mm) |
|
- |
