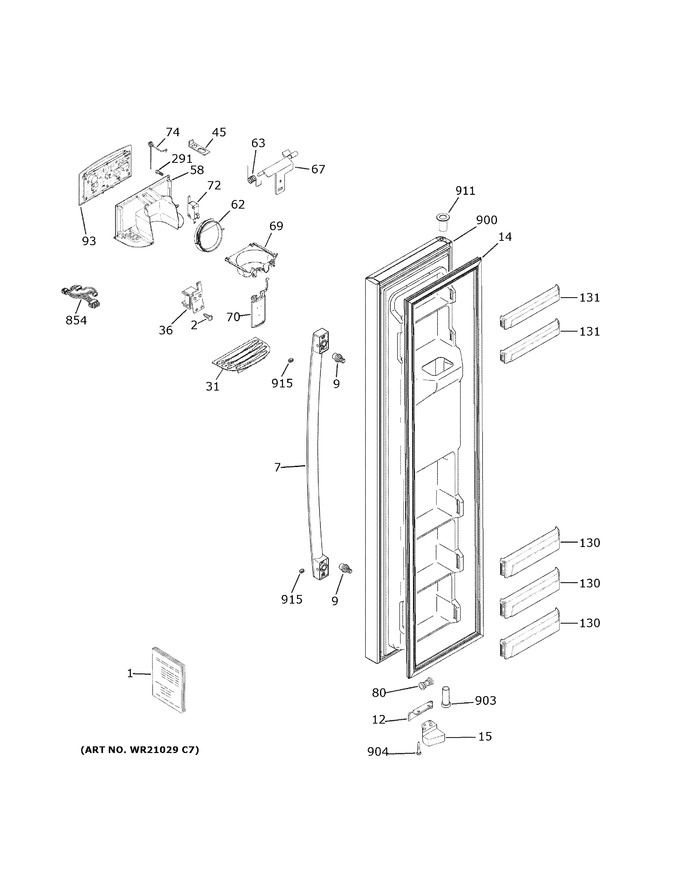

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-1000619		Pm Quick Owners Manual		Appelez-nous	-
1	31-1000523		Pm Mini Manual And Wiring		Appelez-nous	-
2	WR02X12257		Scr 4-10 Pl Pnp 3/4 Ss		Appelez-nous	-
7	WR12X34906		Arc Handle Asm Ss		Appelez-nous	-
9	WR01A01801		Door Handle Fastener   (Replaces: WR01X11007)			Immediately	$ 11.44
12	WR01A00225		Door Stop   (Replaces: WR02X13425)				$ 12.40
14	WR24X20455		Gasket		Appelez-nous	-
15	WR02X10780		Cam Closure Fz Black		Appelez-nous	-
31	WR17X12910		Grill Recess		Appelez-nous	-
36	WR01F01784		Solenoid Asm   (Replaces: WR62X10055)				$ 80.09
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
58	WR17X34266		Housing Shield Disp Black		Appelez-nous	-
62	WR01L01914		Door Recess Asm   (Replaces: WR17X11653)				$ 58.69
63	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.57
67	WR01L00935		Crank Door Recess   (Replaces: WR17X10706)				$ 11.44
69	WR17X21781		Dispenser Ice Funnel		Appelez-nous	-
70	WR17X20449		Paddle Asm		Appelez-nous	-
72	WR23X10783		Switch		Appelez-nous	-
74	WR01A00922		Spring Torsion   (Replaces: WR02X12256)				$ 21.44
80	WR01F02845		Union Connector   (Replaces: WR02X11330)			Immediately	$ 17.15
93	WR55X35087		Interface Dispenser Asm Slate		Appelez-nous	-
130	WR71X38335		Shelf Door Fz Bottom		Appelez-nous	-
131	WR17X38320		Shelf Door Fz Upper		Appelez-nous	-
291	WR01X10649		Scr 8-10 Pl Pnp 1/2 S		Appelez-nous	-
854	WR23X34250		Harness Recess Disp		Appelez-nous	-
900	WR78X24439		Door Foam Asm Fz		Appelez-nous	-
903	WR01X10234		Thimble Door Btm Fz Black		Appelez-nous	-
904	WR01A00637		Scr 10-16   (Replaces: WR01X10611)				$ 3.57
911	WR01X10956		Thimble Door		Appelez-nous	-
915	WR01X20424		Set Screw (9.5mm)		Appelez-nous	-
