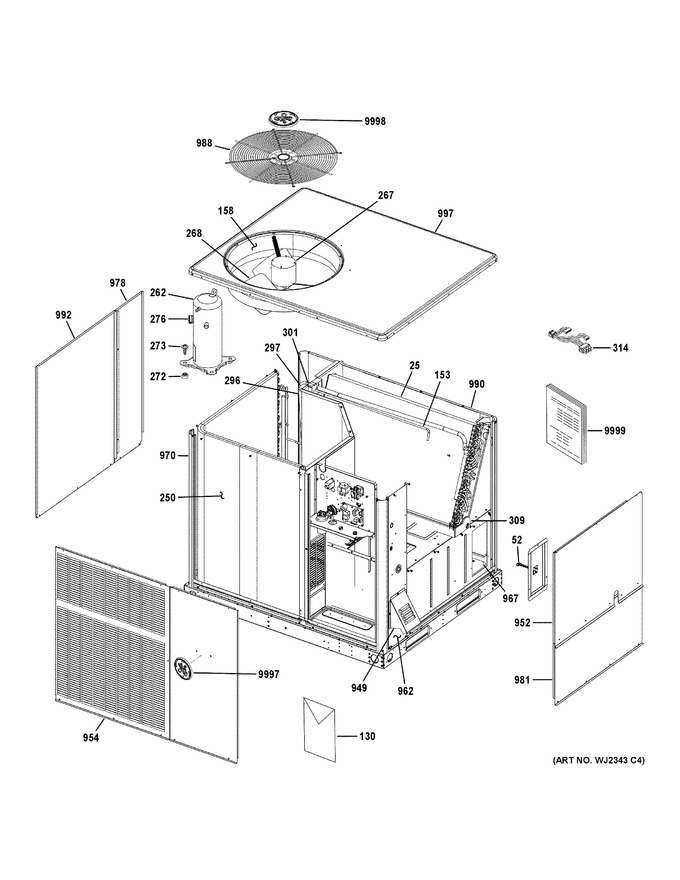

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Blower & Motor
Body Parts
Control Parts
Gas Valve & Burner Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 25 | 18Y06 | Assy-coil Evap 20 X 32, 3r-(cto) |
|
- | |||||
| 52 | 12P55 | Control-limit (190f) Main-(cto) |
|
- | |||||
| 130 | 537659-02 | Label - Wiring Diagram 14 Ge-(cto) |
|
- | |||||
| 153 | 18Y26 | Dist Assy 6tube W/piston .064-(cto) |
|
- | |||||
| 158 | 12J47 | Orifice Ring 22 I.d. X 6 -(cto) |
|
- | |||||
| 250 | 991099931 | Assy-coil 1 Row Cond-(cto) (Replaces: 12J52) |
|
$ 0.02 | |||||
| 262 | 11K69 | 104112-07 Zp29k6e-pfv-830 R410 A230v-1 |
|
- | |||||
| 267 | 92W51 | 100483-33 Cond Fan Mtr 1/6hp 208-230-1 |
|
- | |||||
| 268 | 10W78 | Fan Assy 4 Bld 24 Pitch Ccw-(cto) |
|
- | |||||
| 272 | R100303-01 | Grommet-compressor-(cto) |
|
- | |||||
| 273 | R100301-04 | Bolt & Sleeve Combination-(cto) |
|
- | |||||
| 276 | 14N17 | Harness-comp Molded Plug-(cto) |
|
- | |||||
| 296 | 12L20 | 100087-14 Switch-hi Press |
|
- | |||||
| 297 | 12L21 | 100087-15 Switch-lo Press |
|
- | |||||
| 301 | 12K40 | Drier R410a - One Way - 55g-(cto) |
|
- | |||||
| 309 | 22C74 | Pan-drain Plastic Insul Sm-(cto) |
|
- | |||||
| 314 | 21V36 | Wire Harn Pri 230/460 3p Ge-(cto) |
|
- | |||||
| 949 | 12B75 | Vent Hood-(cto) |
|
- | |||||
| 952 | R622285-02E | Panel-blower Access Sm-(cto) |
|
- | |||||
| 954 | R621996-01E | Panel-louver Front Small-(cto) |
|
- | |||||
| 962 | R622288-01E | Panel -utility G/e Sm-(cto) |
|
- | |||||
| 967 | R622313-02E | Cover Duct Horizontal Sm-(cto) |
|
- | |||||
| 970 | R621894-01E | Post-corner Small-(cto) |
|
- | |||||
| 978 | R621888-02E | Panel -compressor Access Sm-(cto) |
|
- | |||||
| 981 | R621892-01E | Panel -heat Exchanger Access-(cto) |
|
- | |||||
| 988 | 12J45 | Guard-fan Wire Blk Dia 27.134-(cto) |
|
- | |||||
| 990 | R622635-03 | Panel -rear Sm 3dr Arm Txt Gray-(cto) |
|
- | |||||
| 992 | R621890-02E | Panel-louver Left Side Small |
|
- | |||||
| 997 | R611267-02E | Panel Top Sm Armstrong Txt Gray-(cto) |
|
- | |||||
| 9997 | 107213-04 | Side Gea Badge |
|
- | |||||
| 9998 | 107213-01 | Top Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
