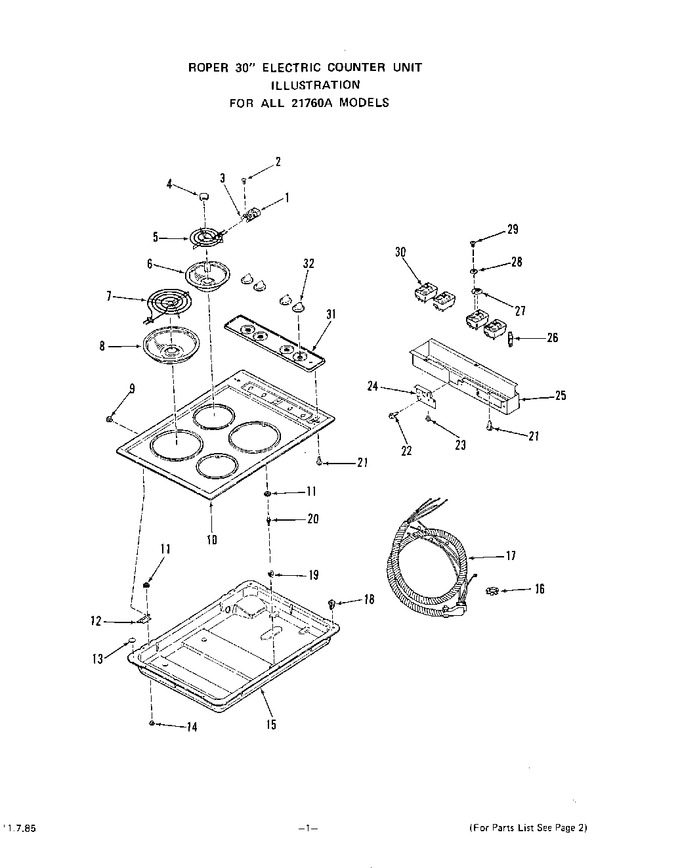

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330031		Terminal Block W/wires   (Replaces: 318960)			Immediately	$ 17.93
2	299632		Screw 7-32x5/16``		Appelez-nous	-
3	318872		Terminal Block Clip		Appelez-nous	-
4	318586		Medallion		Appelez-nous	-
5	PS15-4BK		Surface Element 6``   (Replaces: 325510)			Immediately	$ 35.96
6	WPW10196406		Burner Bowl 6``   (Replaces: 296481)			Immediately	$ 12.05
7	PS26-4BK		Surface Element 8``   (Replaces: 325506)			Immediately	$ 40.46
8	WPW10196405		Burner Bowl 8``   (Replaces: 304969)			Immediately	$ 15.56
9	72055		Screw 6-32x1/4``		Appelez-nous	-
10	330451		Toast		Appelez-nous	-
10	330431		White		Appelez-nous	-
10	330448		Coffee		Appelez-nous	-
10	330458		Chrome		Appelez-nous	-
10	330449		Platinum		Appelez-nous	-
10	330452		Almond		Appelez-nous	-
10	330450		Wheat		Appelez-nous	-
10	330852		Avocado		Appelez-nous	-
11	239764		Hex Nut 8-32		Appelez-nous	-
12	330421		Hinge-main Top		Appelez-nous	-
13	322097		Main Top Spacer		Appelez-nous	-
14	322183		Screw 8-32x1/4``		Appelez-nous	-
15	330924		Burner Box		Appelez-nous	-
16	110340		Nut		Appelez-nous	-
17	330708		Conduit Harness Asm.		Appelez-nous	-
18	330031		Expansion Nut Spacer   (Replaces: 312605)			Immediately	$ 17.93
19	24667		Catch		Appelez-nous	-
20	299784		Strike		Appelez-nous	-
21	232933		Screw 6-32x1/4``		Appelez-nous	-
22	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
23	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
24	330710		Conduit Mounting Plate		Appelez-nous	-
25	330433		Wire Cover		Appelez-nous	-
26	329931		Indicator Light		Appelez-nous	-
27	280157		Control Seal				$ 275.75
28	235110		Washer				$ 77.56
29	70655		Screw 8-32x1/4``		Appelez-nous	-
30	324609		Right Front & Left Rear		Appelez-nous	-
30	324608		Left Front & Right Rear		Appelez-nous	-
31	330921		Control Panel		Appelez-nous	-
32	330434		Infinite Knob		Appelez-nous	-
