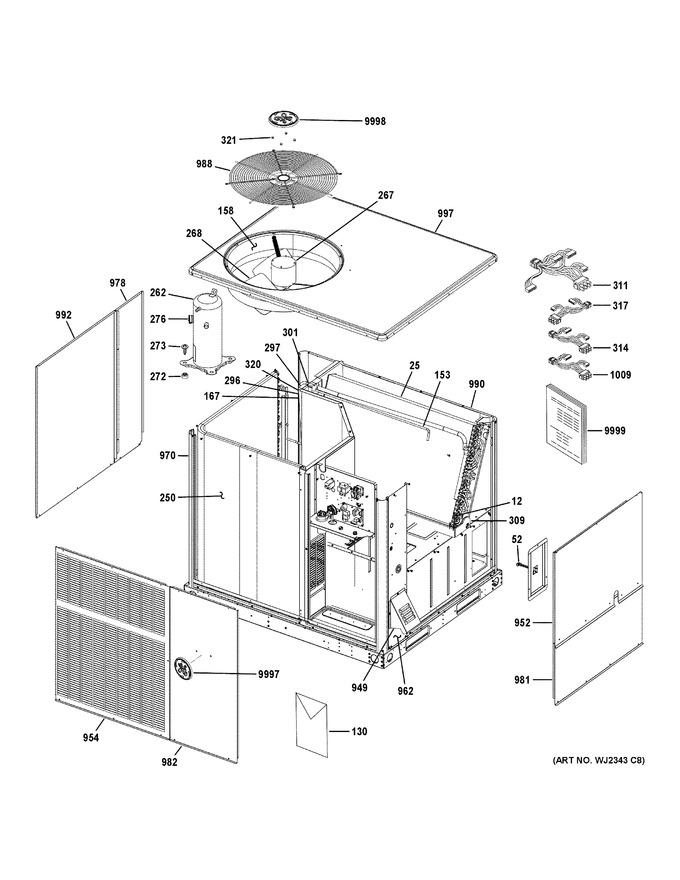

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | R104326-02 | Switch-interlock Level Sensor Nc |
|
- | |||||
| 25 | 12J31 | Coil Evap 24x40.5 3/8 3r15fpi-(cto) |
|
- | |||||
| 52 | 22B75 | 102857-28 Limit Control (stilt) 200f |
|
- | |||||
| 130 | 537659-03 | Label - Wiring Diagram 14 Ge-(cto) |
|
- | |||||
| 153 | 12J62 | Assy-distributor 9 Tube-(cto) |
|
- | |||||
| 158 | 12J46 | Orifice Ring 24.596 I.d. X 6-(cto) |
|
- | |||||
| 167 | 95M48 | Valve Core |
|
- | |||||
| 250 | 12J92 | Assy-coil Cond 2 Row-(cto) |
|
- | |||||
| 262 | 12J58 | 104112-13 Zp49k6e-pfv-830 Comp 230v-1 |
|
- | |||||
| 267 | 12Y65 | 100483-43 Cond Fan Mtr 1/4hp 208/230-1 |
|
- | |||||
| 268 | 12P56 | Fan Assy 24" 3blade 27"pth Ccw-(cto) |
|
- | |||||
| 272 | R100303-01 | Grommet-compressor-(cto) |
|
- | |||||
| 273 | R100301-01 | Bolt-sleeve Combination-(cto) |
|
- | |||||
| 276 | 14N17 | Harness-comp Molded Plug-(cto) |
|
- | |||||
| 296 | 12L20 | 100087-14 Switch-hi Press |
|
- | |||||
| 297 | 12L21 | 100087-15 Switch-lo Press |
|
- | |||||
| 301 | 12K40 | Drier R410a - One Way - 55g-(cto) |
|
- | |||||
| 309 | 21V30 | Pan-drain Plst Insul Lg-(cto) |
|
- | |||||
| 311 | 22U22 | Box-flue Collector-(cto) |
|
- | |||||
| 314 | 22U27 | Harness-wiring Limit-(cto) |
|
- | |||||
| 317 | 13K20 | Harness-wiring Od Fan-(cto) |
|
- | |||||
| 320 | 95M47 | Fitting - Pressuretap-(cto) |
|
- | |||||
| 321 | 85M56 | Nut - Acorn (8-32)-(cto) |
|
- | |||||
| 949 | 12B75 | Vent Hood-(cto) |
|
- | |||||
| 952 | R622285-01E | Pnl Blower Access Lg-(cto) |
|
- | |||||
| 954 | R621891-01E | Pnl-louver Front Large-(cto) |
|
- | |||||
| 962 | R622288-04E | Panel -utility G/e Lg Arm-(cto) |
|
- | |||||
| 970 | R621894-02E | Post-corner Large-(cto) |
|
- | |||||
| 978 | R621888-01E | Pnl -compressor Access Lg-(cto) |
|
- | |||||
| 981 | R621892-01E | Panel -heat Exchanger Access-(cto) |
|
- | |||||
| 982 | R621889-01E | Pnl -control Access Lg-(cto)-(cto) |
|
- | |||||
| 988 | 12J44 | Guard-fan Wire Blk Dia 27.134-(cto) |
|
- | |||||
| 990 | R622635-02 | Pnl Rear Lg 3dr Arm Txt Gray-(cto) |
|
- | |||||
| 992 | R621890-01E | Pnl -louver Left Side Lg-(cto) |
|
- | |||||
| 997 | R611802-02E | Pnl Top Lg Arm Txt Gray-(cto) |
|
- | |||||
| 1009 | 22U28 | Harness-wiring Secondary Limit-(cto) |
|
- | |||||
| 9997 | 107213-04 | Side Gea Badge |
|
- | |||||
| 9998 | 107213-06 | Top Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
