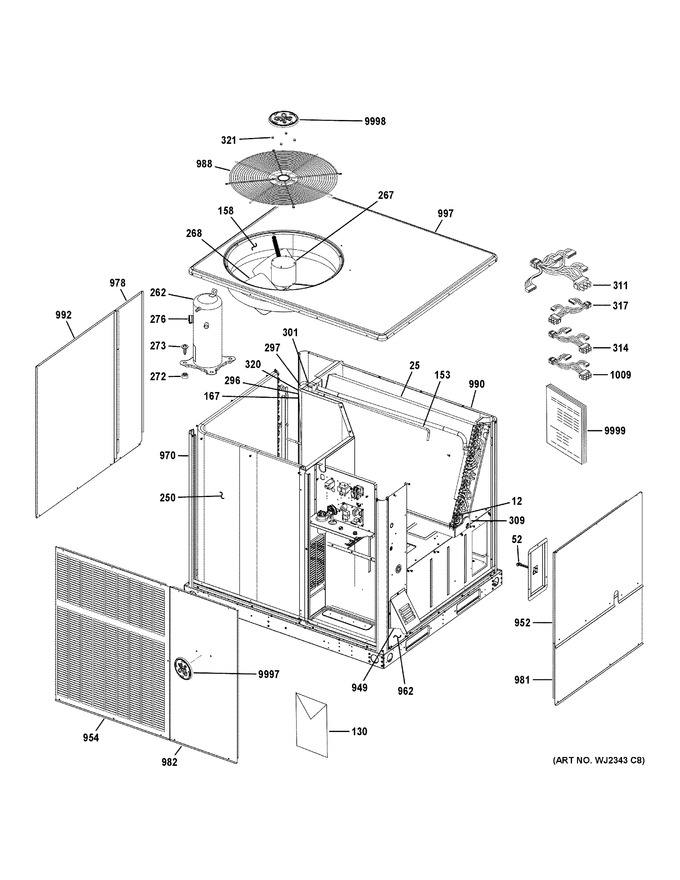

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | R104326-02 | Switch-interlock Level Sensor Nc |
|
- | |||||
| 25 | 18Y06 | Assy-coil Evap 20 X 32, 3r-(cto) |
|
- | |||||
| 52 | 22B75 | 102857-28 Limit Control (stilt) 200f |
|
- | |||||
| 130 | 537659-03 | Label - Wiring Diagram 14 Ge-(cto) |
|
- | |||||
| 153 | 18Y26 | Dist Assy 6tube W/piston .064-(cto) |
|
- | |||||
| 158 | 12J47 | Orifice Ring 22 I.d. X 6 -(cto) |
|
- | |||||
| 167 | 95M48 | Valve Core |
|
- | |||||
| 250 | 12J32 | Assy-coil Cond 1 Row -(cto) |
|
- | |||||
| 262 | 11K69 | 104112-07 Zp29k6e-pfv-830 R410 A230v-1 |
|
- | |||||
| 267 | 92W51 | 100483-33 Cond Fan Mtr 1/6hp 208-230-1 |
|
- | |||||
| 268 | 10W78 | Fan Assy 4 Bld 24 Pitch Ccw-(cto) |
|
- | |||||
| 272 | R100303-01 | Grommet-compressor-(cto) |
|
- | |||||
| 273 | R100301-01 | Bolt-sleeve Combination-(cto) |
|
- | |||||
| 276 | 14N17 | Harness-comp Molded Plug-(cto) |
|
- | |||||
| 296 | 12L20 | 100087-14 Switch-hi Press |
|
- | |||||
| 297 | 12L21 | 100087-15 Switch-lo Press |
|
- | |||||
| 301 | 12K40 | Drier R410a - One Way - 55g-(cto) |
|
- | |||||
| 309 | 22C74 | Pan-drain Plastic Insul Sm-(cto) |
|
- | |||||
| 311 | 22U22 | Box-flue Collector-(cto) |
|
- | |||||
| 314 | 22U27 | Harness-wiring Limit-(cto) |
|
- | |||||
| 317 | 13K20 | Harness-wiring Od Fan-(cto) |
|
- | |||||
| 320 | 95M47 | Fitting - Pressuretap-(cto) |
|
- | |||||
| 321 | 85M56 | Nut - Acorn (8-32)-(cto) |
|
- | |||||
| 949 | 12B75 | Vent Hood-(cto) |
|
- | |||||
| 952 | R622285-02E | Panel-blower Access Sm-(cto) |
|
- | |||||
| 954 | R621996-01E | Panel-louver Front Small-(cto) |
|
- | |||||
| 962 | R622288-03E | Panel -utility G/e Sm Arm-(cto) |
|
- | |||||
| 970 | R621894-01E | Post-corner Small-(cto) |
|
- | |||||
| 978 | R621888-02E | Panel -compressor Access Sm-(cto) |
|
- | |||||
| 981 | R621892-01E | Panel -heat Exchanger Access-(cto) |
|
- | |||||
| 982 | R621889-02E | Panel -control Access Sm-(cto) |
|
- | |||||
| 988 | 12J45 | Guard-fan Wire Blk Dia 27.134-(cto) |
|
- | |||||
| 990 | R622635-03 | Panel -rear Sm 3dr Arm Txt Gray-(cto) |
|
- | |||||
| 992 | R621890-02E | Panel-louver Left Side Small |
|
- | |||||
| 997 | R611267-02E | Panel Top Sm Armstrong Txt Gray-(cto) |
|
- | |||||
| 1009 | 22U28 | Harness-wiring Secondary Limit-(cto) |
|
- | |||||
| 9997 | 107213-04 | Side Gea Badge |
|
- | |||||
| 9998 | 107213-06 | Top Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
