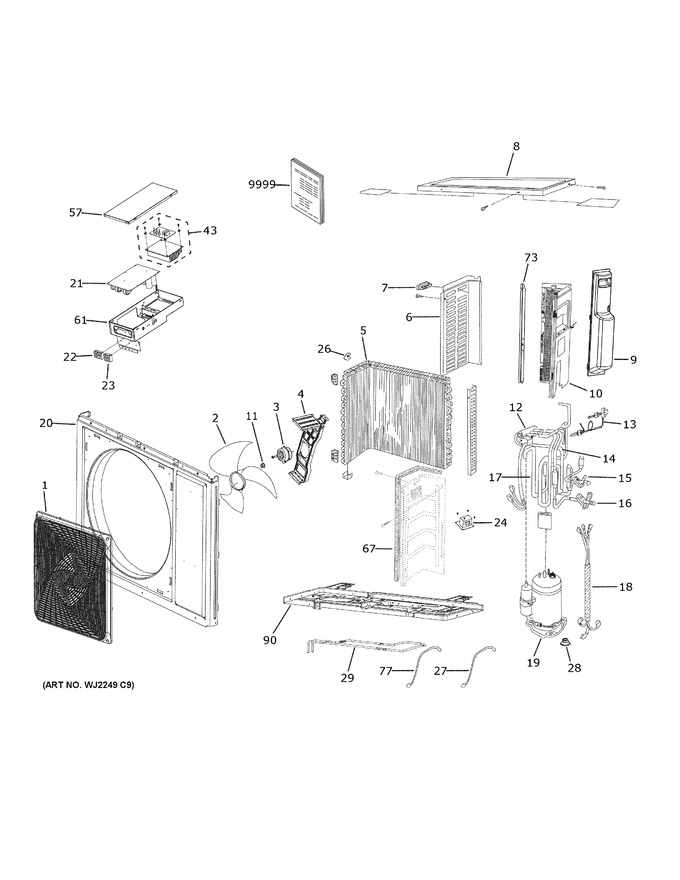

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X33075		Grill		Appelez-nous	-
2	WJ73X33078		Fan Blade		Appelez-nous	-
3	WJ94X22975		Outdoor Fan Motor			Immediately	$ 180.78
4	WJ65X22976		Outdoor Fan Motor Bracket		Appelez-nous	-
5	WJ88X33045		Condenser Assy.		Appelez-nous	-
6	WJ71X33096		Left Side Panel		Appelez-nous	-
7	WJ65X33083		Wire Cover		Appelez-nous	-
8	WJ71X33094		Topcover		Appelez-nous	-
9	WJ76X33087		Valve Cover		Appelez-nous	-
10	WJ71X33098		Right Side Panel		Appelez-nous	-
11	WJ01X23150		Flange Nut				$ 1.77
12	WJ53X24700		4-way Valve Tube Assembly		Appelez-nous	-
13	WJ26X24659		Electronic Expansion Valve		Appelez-nous	-
14	WJ53X33044		Discharging Pipe		Appelez-nous	-
15	WJ53X24973		Liquid Service Valve		Appelez-nous	-
16	WJ53X24974		Vapor Service Valve		Appelez-nous	-
17	WJ53X22983		Suction Tube		Appelez-nous	-
18	WJ35X22978		Outdoor Wire Harness		Appelez-nous	-
19	WJ98X22969		Compressor		Appelez-nous	-
20	WJ71X33095		Casing		Appelez-nous	-
21	WJ26X33173		Power Control Board		Appelez-nous	-
22	WJ27X26435		Terminal Block		Appelez-nous	-
23	WJ27X24663		Terminal Block Supply		Appelez-nous	-
24	WJ27X22981		Reactor		Appelez-nous	-
26	WJ01X23219		Sensor Clip		Appelez-nous	-
27	WJ26X22984		Sensor Assy. Comp/amb/def				$ 19.93
28	WJ01X22974		Flange Nut		Appelez-nous	-
29	WJ27X24656		Basepan Heater		Appelez-nous	-
43	WJ26X24110		Inverter Assembly		Appelez-nous	-
57	WJ76X28173		Elctrical Box Cover		Appelez-nous	-
61	WJ76X24615		Electral Box		Appelez-nous	-
67	WJ71X33046		Partition Panel Plate		Appelez-nous	-
73	WJ71X33097		Crossbeam		Appelez-nous	-
77	WJ35X33043		Electric Heater Harness		Appelez-nous	-
90	WJ76X33049		Bottom Plate Assy.		Appelez-nous	-
9999	31-5000276		Pm Install Instructions		Appelez-nous	-
