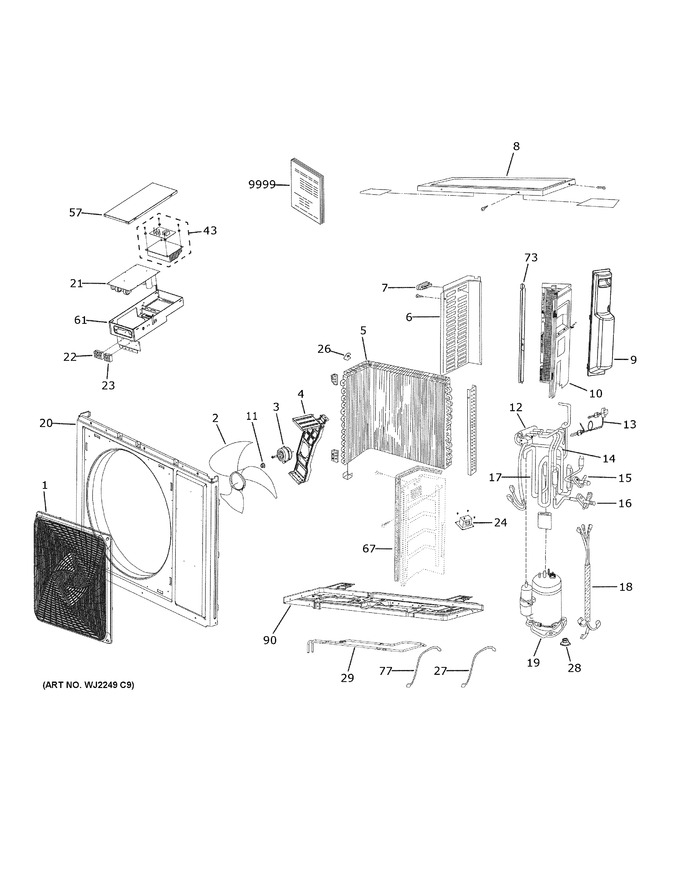

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X23214		Grille		Appelez-nous	-
2	WJ73X22998		Fan Blade				$ 73.09
3	WJ94X23000		Outdoor Fan Motor				$ 480.59
4	WJ65X23001		Outdoor Fan Motor Bracket		Appelez-nous	-
5	WJ88X22994		Outdoor Coil				$ 400.98
6	WJ71X23215		Left Side Panel				$ 36.97
7	WJ01X24664		Handle		Appelez-nous	-
8	WJ76X23220		Top Cover		Appelez-nous	-
9	WJ76X23007		Valve Cover		Appelez-nous	-
10	WJ71X23218		Right Side Panel				$ 52.61
11	WJ01X22974		Flange Nut		Appelez-nous	-
12	WJ53X24701		4-way Valve Tube Assembly		Appelez-nous	-
13	WJ26X24668		Electronic Expansion Valve		Appelez-nous	-
14	WJ53X25637		Discharge Tube		Appelez-nous	-
15	WJ53X24973		Liquid Service Valve		Appelez-nous	-
16	WJ53X24975		Vapor Service Valve		Appelez-nous	-
17	WJ53X23008		Suction Tube		Appelez-nous	-
18	WJ35X25394		Outdoor Wire Harness		Appelez-nous	-
19	WJ98X22993		Compressor		Appelez-nous	-
20	WJ76X23212		Casing		Appelez-nous	-
21	WJ26X33176		Power Control Board		Appelez-nous	-
22	WJ27X23011		Terminal Block Indoor		Appelez-nous	-
23	WJ27X25393		Terminal Block Supply		Appelez-nous	-
24	WJ27X23006		Reactor		Appelez-nous	-
26	WJ01X23219		Sensor Clip		Appelez-nous	-
27	WJ26X23009		Suction Sensor				$ 22.15
28	WJ01X22974		Flange Nut		Appelez-nous	-
29	WJ27X24665		Basepan Heater		Appelez-nous	-
43	WJ26X24100		Inverter Assembly		Appelez-nous	-
57	WJ76X32634		Control Box Cover		Appelez-nous	-
61	WJ76X32636		Electrical Box		Appelez-nous	-
67	WJ71X32956		Divider Panel		Appelez-nous	-
73	WJ65X32954		Support Bar		Appelez-nous	-
77	WJ35X33043		Electric Heater Harness		Appelez-nous	-
90	WJ76X32955		Bottom Plate Assy.		Appelez-nous	-
9999	31-5000587		Pm Install Instructions		Appelez-nous	-
