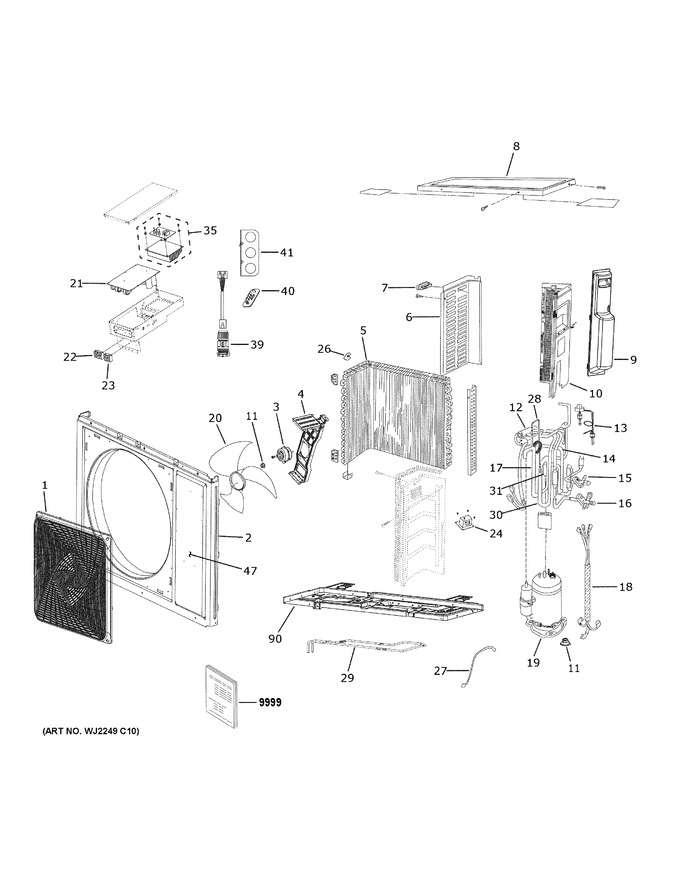

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X33077		Grill		Appelez-nous	-
2	WJ71X33103		Casing		Appelez-nous	-
3	WJ94X23000		Outdoor Fan Motor				$ 480.59
4	WJ65X23015		Outdoor Fan Motor Bracket		Appelez-nous	-
5	WJ88X26444		Condenser		Appelez-nous	-
6	WJ71X33104		Left Side Panel		Appelez-nous	-
7	WJ65X33081		Handle		Appelez-nous	-
8	WJ76X33236		Top Cover		Appelez-nous	-
9	WJ76X33089		Valve Cover		Appelez-nous	-
10	WJ71X33313		Right Side Panel		Appelez-nous	-
11	WJ01X22974		Flange Nut		Appelez-nous	-
12	WJ53X30854		4-way Valve Tube Assembly		Appelez-nous	-
13	WJ53X26445		Eev Valve		Appelez-nous	-
14	WJ53X29532		Discharge Tube		Appelez-nous	-
15	WJ53X24974		Vapor Service Valve		Appelez-nous	-
16	WJ26X29534		Vapor Service Valve		Appelez-nous	-
17	WJ53X29533		Suction Tube		Appelez-nous	-
18	WJ35X29527		Outdoor Wire Harness		Appelez-nous	-
19	WJ98X26204		Compressor		Appelez-nous	-
20	WJ73X32233		Fan Blade		Appelez-nous	-
21	WJ26X29537		Power Control Board		Appelez-nous	-
22	WJ27X23011		Terminal Block Indoor		Appelez-nous	-
23	WJ26X23520		Terminal Block		Appelez-nous	-
24	WJ27X29538		Reactor		Appelez-nous	-
26	WJ01X23219		Sensor Clip		Appelez-nous	-
27	WJ26X23009		Suction Sensor				$ 22.15
28	WJ53X29531		Cap Tube		Appelez-nous	-
29	WJ27X26437		Compressor Heater		Appelez-nous	-
30	WJ53X29530		Suction Tube 1		Appelez-nous	-
31	WJ26X29529		Gas-liquid Separator		Appelez-nous	-
35	WJ26X29676		Inverter		Appelez-nous	-
39	WJ27X27115		Rj45		Appelez-nous	-
40	WJ76X27114		Cover		Appelez-nous	-
41	WJ65X27113		Strain Relief Bracket		Appelez-nous	-
47	WJ71X33237		Front Service Panel		Appelez-nous	-
90	WJ76X33233		Bottom Plate Assy.		Appelez-nous	-
9999	31-5000276		Pm Install Instructions		Appelez-nous	-
9999	31-5000772		Pm Install Instructions		Appelez-nous	-
