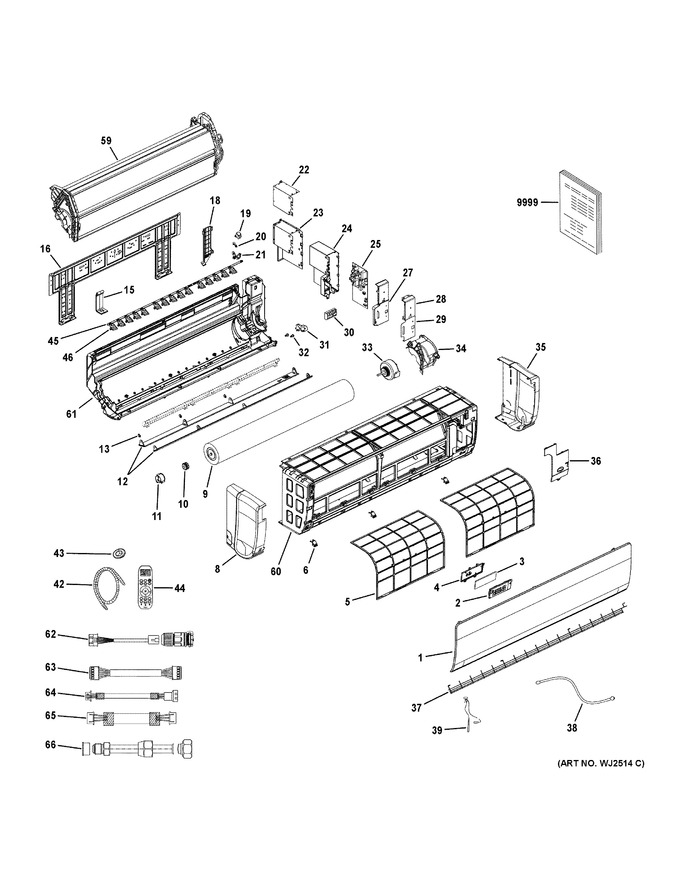

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23062 | Top Cover |
|
$ 224.18 | |||||
| 2 | WJ76X33042 | Display Box Cover |
|
- | |||||
| 3 | WJ71X23051 | Display Panel |
|
- | |||||
| 4 | WJ76X23029 | Display Board Box |
|
- | |||||
| 5 | WJ85X23046 | Air Filter |
|
- | |||||
| 6 | WJ76X33038 | Screw Cover |
|
- | |||||
| 8 | WJ76X33036 | Left Cover |
|
- | |||||
| 9 | WJ73X23049 | Cross Flow Fan |
|
- | |||||
| 10 | WJ73X23028 | Cross Flow Fan Bearing |
|
- | |||||
| 11 | WJ73X23050 | Cross Flow Fan Bearing Cover |
|
- | |||||
| 12 | WJ71X22765 | Air Louvre |
|
- | |||||
| 13 | WJ65X24232 | Horizontal Louver Bushings |
|
- | |||||
| 15 | WJ65X23248 | Drain Pipe Bracket |
|
- | |||||
| 16 | WJ65X23056 | Mounting Bracket |
|
- | |||||
| 18 | WJ76X29798 | Pipe Chanel Cover |
|
- | |||||
| 19 | WJ94X23061 | Vertical Louver Motor |
|
$ 33.35 | |||||
| 20 | WJ76X23057 | Power Cable Cover |
|
- | |||||
| 21 | WJ65X23059 | Stepper Motor Bracket |
|
- | |||||
| 22 | WJ76X29662 | Board Protector |
|
- | |||||
| 23 | WJ76X31353 | Electrical Box Protector |
|
- | |||||
| 24 | WJ76X31361 | Electrical Box |
|
- | |||||
| 25 | WJ26X33178 | Indoor Power Control Board |
|
- | |||||
| 27 | WJ76X24724 | Electrical Box Cover (plastic) |
|
- | |||||
| 28 | WJ76X29514 | Protect Board Of Cover Board 2 |
|
- | |||||
| 29 | WJ76X26714 | Electrical Box Cover (metal) |
|
- | |||||
| 30 | WJ26X23043 | Terminal Block |
|
- | |||||
| 31 | WJ94X23058 | Horizontal Louver Motor |
|
$ 52.21 | |||||
| 32 | WJ01X24220 | Axletree Cover (shaft Jacket) |
|
- | |||||
| 33 | WJ94X23257 | Indoor Fan Motor |
|
$ 213.32 | |||||
| 34 | WJ76X23055 | Indoor Motor Cover |
|
- | |||||
| 35 | WJ76X33037 | Right Cover |
|
- | |||||
| 36 | WJ76X33050 | Cover Board |
|
- | |||||
| 37 | WJ71X25109 | Protect Net |
|
- | |||||
| 38 | WJ35X23134 | Wiring Harness |
|
- | |||||
| 39 | WJ26X23042 | Temperature Sensor Assembly |
|
$ 19.55 | |||||
| 42 | WJ53X23032 | Drain Hose |
|
$ 6.41 | |||||
| 43 | WJ53X28913 | Guard Ring |
|
- | |||||
| 44 | WJ01X24721 | Remote Control |
|
$ 114.98 | |||||
| 45 | WJ65X33040 | Connecting Rod |
|
- | |||||
| 46 | WJ71X33039 | Louver |
|
- | |||||
| 59 | WJ87X31369 | Evaporator Coil |
|
- | |||||
| 60 | WJ76X31358 | Casing Assembly |
|
- | |||||
| 61 | WJ71X33047 | Indoor Chassis Assembly |
|
- | |||||
| 62 | WJ27X27115 | Rj45 |
|
- | |||||
| 63 | WJ35X27134 | Wifi Wiring Harness |
|
- | |||||
| 64 | WJ35X27135 | Wk-b Wiring Harness |
|
- | |||||
| 65 | WJ35X27136 | Wk-b Wiring Harness |
|
- | |||||
| 66 | WJ01X27116 | 1/2" X 3/8" Adapter |
|
- | |||||
| 9999 | 31-5000587 | Pm Install Instructions |
|
- | |||||
| 9999 | 49-5000094 | Pm Owners Manual |
|
- |
