Room Air Conditioner
New Model Search:

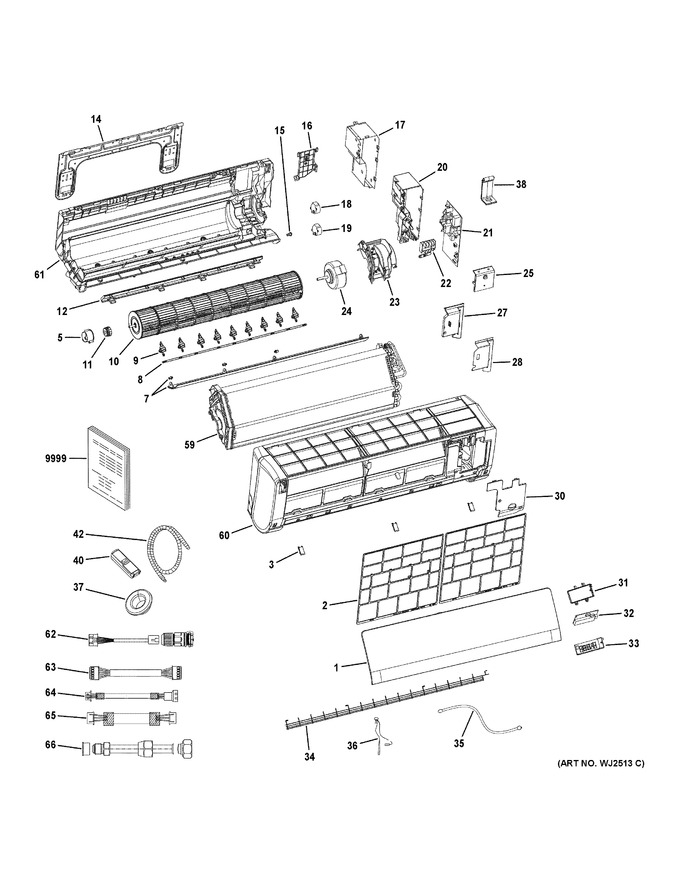

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X25433 | Top Cover |
|
- | |||||
| 2 | WJ85X30473 | Air Filter |
|
$ 11.04 | |||||
| 3 | WJ76X33041 | Screw Cover |
|
- | |||||
| 5 | WJ73X23050 | Cross Flow Fan Bearing Cover |
|
- | |||||
| 7 | WJ71X23034 | Horizontal Louver |
|
- | |||||
| 8 | WJ65X33086 | Connecting Rod |
|
- | |||||
| 9 | WJ71X33085 | Louvers |
|
- | |||||
| 10 | WJ73X23027 | Cross Flow Fan |
|
- | |||||
| 11 | WJ73X23028 | Cross Flow Fan Bearing |
|
- | |||||
| 12 | WJ65X33083 | Wire Cover |
|
- | |||||
| 14 | WJ65X23038 | Mounting Plate |
|
$ 15.30 | |||||
| 15 | WJ01X24235 | Shaft Jacket |
|
- | |||||
| 16 | WJ76X29674 | Pipe Chanel Cover |
|
- | |||||
| 17 | WJ76X31354 | Electrical Box Protector |
|
- | |||||
| 18 | WJ94X23041 | Horizontal Louver Motor |
|
$ 30.18 | |||||
| 19 | WJ94X23040 | Vertical Louver Motor |
|
- | |||||
| 20 | WJ76X33035 | Electric Box |
|
- | |||||
| 20 | WJ71X33103 | Casing |
|
- | |||||
| 21 | WJ26X33178 | Indoor Power Control Board |
|
- | |||||
| 22 | WJ26X23043 | Terminal Block |
|
- | |||||
| 23 | WJ76X23036 | Indoor Motor Cover |
|
- | |||||
| 24 | WJ94X23035 | Indoor Motor |
|
$ 146.12 | |||||
| 25 | WJ76X31356 | Electrical Box |
|
- | |||||
| 27 | WJ76X24720 | Electrical Box Cover (plastic) |
|
- | |||||
| 28 | WJ76X26713 | Electrical Box Cover (metal) |
|
- | |||||
| 30 | WJ76X23141 | Cover |
|
- | |||||
| 31 | WJ76X23235 | Display Board Box |
|
- | |||||
| 32 | WJ26X23236 | Display Panel |
|
$ 51.91 | |||||
| 33 | WJ71X25111 | Display Board Cover |
|
- | |||||
| 34 | WJ71X33033 | Outlet Guard |
|
- | |||||
| 35 | WJ35X23134 | Wiring Harness |
|
- | |||||
| 36 | WJ26X23042 | Temperature Sensor Assembly |
|
$ 19.55 | |||||
| 37 | WJ53X28913 | Guard Ring |
|
- | |||||
| 38 | WJ65X33080 | Drain Pipe Bracket |
|
- | |||||
| 40 | WJ01X25115 | Remote Controller |
|
- | |||||
| 42 | WJ53X23032 | Drain Hose |
|
$ 6.41 | |||||
| 59 | WJ87X31368 | Evaporator Coil |
|
- | |||||
| 60 | WJ76X31374 | Casing Assembly |
|
- | |||||
| 61 | WJ71X33091 | Vertical Louvre Assembly |
|
- | |||||
| 62 | WJ27X27115 | Rj45 |
|
- | |||||
| 63 | WJ35X27134 | Wifi Wiring Harness |
|
- | |||||
| 64 | WJ35X27135 | Wk-b Wiring Harness |
|
- | |||||
| 65 | WJ35X27136 | Wk-b Wiring Harness |
|
- | |||||
| 66 | WJ01X27116 | 1/2" X 3/8" Adapter |
|
- | |||||
| 9999 | 49-5000277 | Pm Owners Manual |
|
- | |||||
| 9999 | 31-5000276 | Pm Install Instructions |
|
- |
