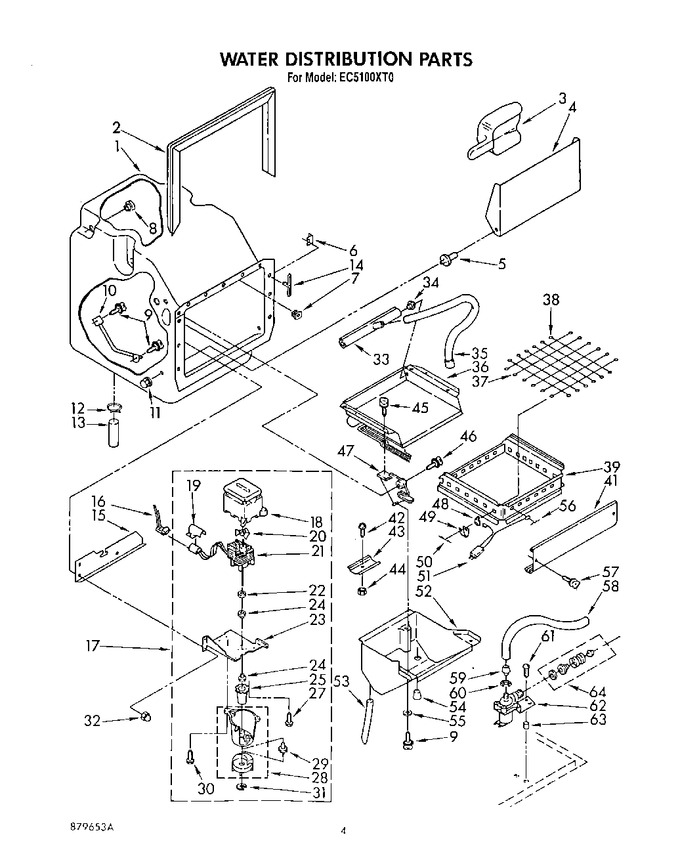

03 - Water Distribution


04 - Cabinet And Front


05 - Optional


06 - Drain Pump


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	756350		Liner (includes No.s 5, 6, 7, 11, 14)		Appelez-nous	-
2	758921		Gasket, Liner		Appelez-nous	-
3	W11420408		Scoop, Ice   (Replaces: 585158)				$ 28.61
4	756330		Door, Inner		Appelez-nous	-
5	758220		Stud, Inner Door Mtg. (2)		Appelez-nous	-
6	758492		Washer, Clip		Appelez-nous	-
7	596807		Grommet		Appelez-nous	-
8	596715		Nut, Well (3)		Appelez-nous	-
9	681419		Screw, Thumb 10 X 1/2		Appelez-nous	-
10	593183		Thermostat, Well Bin		Appelez-nous	-
11	681542		Nut, Hex 1/4 (2)		Appelez-nous	-
12	596023		Clamp, Hose (2)		Appelez-nous	-
13	593577		Connector, Hose		Appelez-nous	-
14	596812		Clip, Linner (12)		Appelez-nous	-
15	585853		Shelf, Water Pan		Appelez-nous	-
16	569434		Harness, Wiring (water Pump)		Appelez-nous	-
17	WP756782		Pump, Water (complete Assembly)   (Replaces: 756782)				$ 510.95
18	593702		Housing, Motor		Appelez-nous	-
19	756124		Sheild, Wiring		Appelez-nous	-
20	587096		Blade, Fan		Appelez-nous	-
21	756950		Motor, Pump		Appelez-nous	-
22	593060		Washer		Appelez-nous	-
23	756122		Bracket, Pump		Appelez-nous	-
24	596016		Grommet (2)		Appelez-nous	-
25	593229		Sleeve		Appelez-nous	-
27	681390		Screw, 8-32 X 3/8				$ 13.71
28	583518		Pump, Assembly		Appelez-nous	-
29	583426		Impeller, Pump (includes No. 31)		Appelez-nous	-
30	681391		Screw, 8-18 X 3/4		Appelez-nous	-
31	681301		Ring, Retaining		Appelez-nous	-
32	681770		Nut (3)		Appelez-nous	-
33	585813		Dispenser, Water		Appelez-nous	-
34	758597		Plug,		Appelez-nous	-
35	585856		Hose, Dispenser		Appelez-nous	-
36	758028		Evaporator		Appelez-nous	-
37	588048		Wire, Cutter (includes 9 Wires)		Appelez-nous	-
38	588109		Wire, Cutter (includes 10 Wires)		Appelez-nous	-
41	593171		Panel, Grid		Appelez-nous	-
42	596037		Screw, 10-32 X 1/2		Appelez-nous	-
43	587662		Clamp		Appelez-nous	-
44	681676		Nut, 10-32		Appelez-nous	-
45	681419		Screw, Thumb 10 X 1/2 (2)		Appelez-nous	-
46	681611		Screw, Thumb 10-32 X 1``		Appelez-nous	-
47	756564		Bracket, Grid (2)		Appelez-nous	-
48	598277		Insulator, Grid Wires (38)		Appelez-nous	-
49	564072		Clip, Grid Wires (38)		Appelez-nous	-
50	587112		Pin, Grid Wires (4)		Appelez-nous	-
51	587639		Harness, Wiring (cutter Grid)		Appelez-nous	-
52	756659		Pan, Water		Appelez-nous	-
53	593369		Hose, Overflow		Appelez-nous	-
54	593572		Plug, Pan		Appelez-nous	-
55	681245		Washer,		Appelez-nous	-
56	587111		Pin, Grid Wire (17)		Appelez-nous	-
57	681534		Screw, Thumb 10-32 X 3/4 (2)				$ 11.33
58	W10823511		Hose, Water Valve   (Replaces: 758037)			Immediately	$ 32.41
59	4387491		Insert, Hose   (Replaces: 841707)				$ 8.23
60	WP627018		Nut   (Replaces: 627018)				$ 11.51
61	681688		Screw, 1/4 -20 X 1-3/4 (2)		Appelez-nous	-
62	757433		Valve, Water		Appelez-nous	-
63	758737		Spacer, Valve (2)		Appelez-nous	-
64	533238		Adapter, Hose		Appelez-nous	-
