SELECT A DIAGRAM

Doors


Freezer Section


Fresh Food Section


Fresh Food Shelves


Ice Maker


Lokring Connectors


Machine Compartment

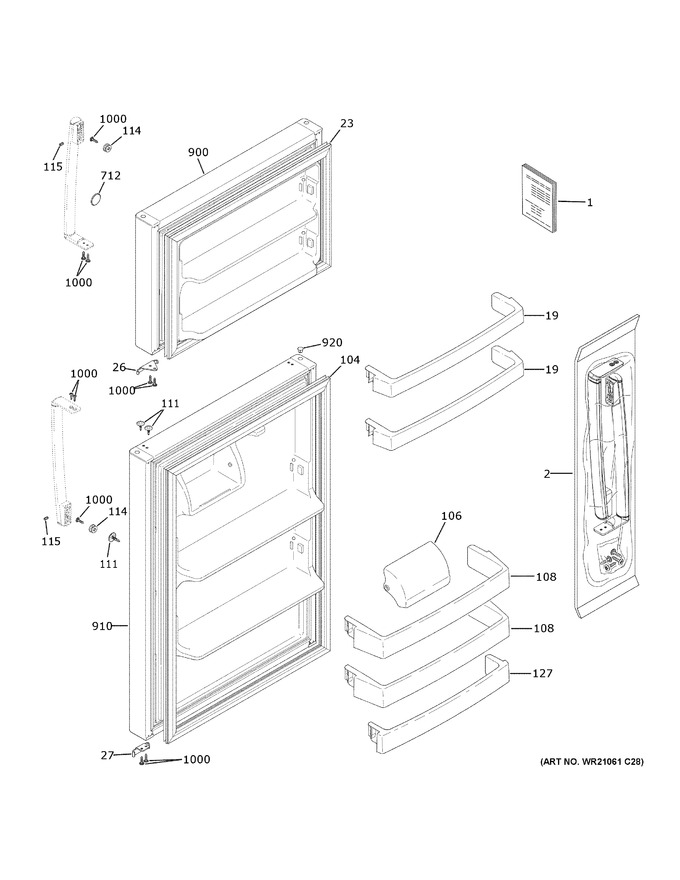

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1000678		Pm Mini Manual And Wiring		Appelez-nous	-
2	WR12X34466		Stainless Handles W/ Hardware		Appelez-nous	-
19	WR71X30014		Freezer Fixed Shelf		Appelez-nous	-
23	WR14X27234		Gasket Door Fz Dg		Appelez-nous	-
26	WR02X28290		Freezer Door Stop Dorian Gray		Appelez-nous	-
27	WR02X28286		Refrigerator Door Stop Dorian Gray		Appelez-nous	-
104	WR14X27235		Gasket Door Ff Dg		Appelez-nous	-
106	WR22X30023		Dairy Door		Appelez-nous	-
108	WR17X21154		Shelf Fixed Ff		Appelez-nous	-
111	WR02X21242		Plug Door Rvsbl				$ 1.15
114	WR02X34467		Handle Mount Bushing		Appelez-nous	-
115	WR01X20424		Set Screw (9.5mm)		Appelez-nous	-
127	WR17X22911		Shelf Fixed Bottom Ff		Appelez-nous	-
712	WR02X31104		Ge Badge		Appelez-nous	-
900	WR78X22933		Door Foam Asm Fz Ss		Appelez-nous	-
910	WR78X31216		Stainless Fresh Food Door 18		Appelez-nous	-
920	WR02X21663		Plug Button Thimble		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
