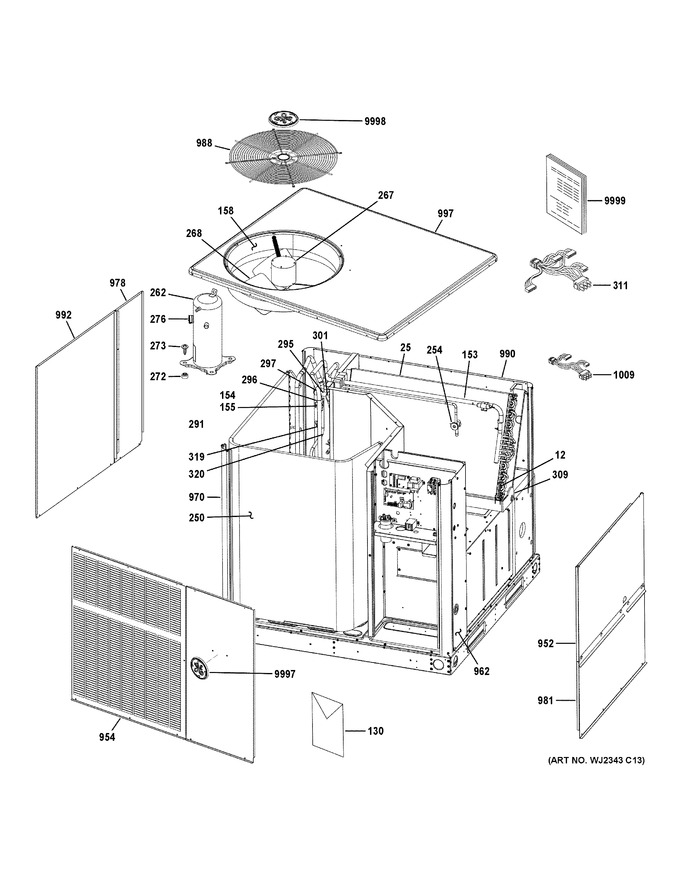

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | R104326-02 | Switch-interlock Level Sensor Nc |
|
- | |||||
| 25 | 12J51 | 613139-02a Evap-coil 3/8 24x40.5 3r15fpi |
|
- | |||||
| 130 | 537865-03 | Label - Wiring Diagram 16 Seer Hp-(cto) |
|
- | |||||
| 153 | 15D33 | 103366-16 Valve-exp Nxt Indoor 4t |
|
- | |||||
| 154 | 12J24 | 101322-13 Assy-distributor 3 Tube-(cto) |
|
- | |||||
| 155 | 12J25 | 101322-14 Assy-distributor 4 Tube-(cto) |
|
- | |||||
| 158 | 12J46 | Orifice Ring 24.596 I.d. X 6-(cto) |
|
- | |||||
| 250 | 12J97 | 613203-02 Assy-coil Cond 2 Row-(cto) |
|
- | |||||
| 254 | 15D33 | 103366-16 Valve-exp Nxt Indoor 4t |
|
- | |||||
| 262 | 16M61 | Comp-lg Apm051ka 5t 208/230/1 |
|
- | |||||
| 267 | 15D61 | 105026-01 Motor-fan 1/2hp 208/230v 60hz- |
|
- | |||||
| 268 | 15J32 | 100017-12 Fan 24" 3-blade 32-pitch Ccw-( |
|
- | |||||
| 272 | R100303-01 | Grommet-compressor-(cto) |
|
- | |||||
| 273 | R100301-01 | Bolt-sleeve Combination-(cto) |
|
- | |||||
| 276 | 14N35 | Lg W/h-comp Molded Plug-(cto) |
|
- | |||||
| 291 | 24X73 | Sensor Defrost (harness) |
|
- | |||||
| 295 | 42W59 | Valve-reversing (1/2 X 7/8)(cto) |
|
- | |||||
| 296 | 12L20 | 100087-14 Switch-hi Press |
|
- | |||||
| 297 | 12L21 | 100087-15 Switch-lo Press |
|
- | |||||
| 301 | 49W23 | Drier - Biflow (r410a)cto |
|
- | |||||
| 309 | 21V30 | Pan-drain Plst Insul Lg-(cto) |
|
- | |||||
| 311 | 24X72 | Harness-wiring 16 Seer Hp |
|
- | |||||
| 319 | 95M48 | Valve Core |
|
- | |||||
| 320 | 95M47 | Fitting - Pressuretap-(cto) |
|
- | |||||
| 952 | R622285-01E | Pnl Blower Access Lg-(cto) |
|
- | |||||
| 954 | R621891-01E | Pnl-louver Front Large-(cto) |
|
- | |||||
| 962 | R621893-01E | Pnl-utility Hp-ac Lg-(cto) |
|
- | |||||
| 970 | R621894-02E | Post-corner Large-(cto) |
|
- | |||||
| 978 | R621888-01E | Pnl -compressor Access Lg-(cto) |
|
- | |||||
| 981 | R621892-01E | Panel -heat Exchanger Access-(cto) |
|
- | |||||
| 988 | 22H24 | Guard-fan Wire Blk-(cto) |
|
- | |||||
| 990 | R622635-02 | Pnl Rear Lg 3dr Arm Txt Gray-(cto) |
|
- | |||||
| 992 | R621890-01E | Pnl -louver Left Side Lg-(cto) |
|
- | |||||
| 997 | R611802-02E | Pnl Top Lg Arm Txt Gray-(cto) |
|
- | |||||
| 1009 | 49M73 | Harness (molded Plug)-(cto) |
|
- | |||||
| 9997 | 107213-04 | Side Gea Badge |
|
- | |||||
| 9998 | 107213-06 | Top Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
