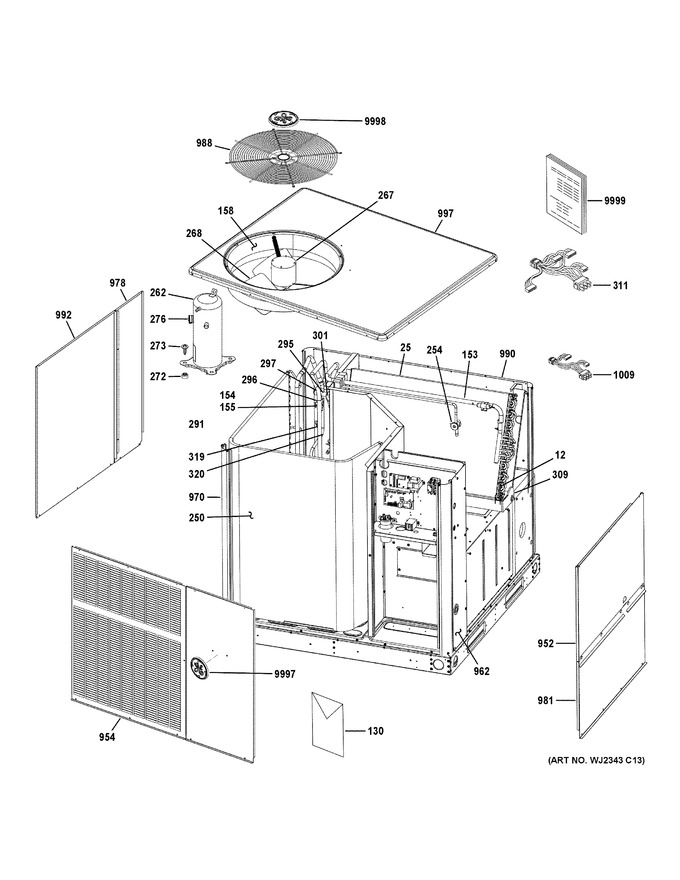

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | R104326-02 | Switch-interlock Level Sensor Nc |
|
- | |||||
| 25 | 12J50 | 613139-01a Evap-coil 3/8 20 X 32 3r15fpi |
|
- | |||||
| 130 | 537865-05 | Wiring Diagram-(cto) |
|
- | |||||
| 153 | 12J35 | 103366-07 Valve-exp Nxt Indoor 3-3.5t |
|
- | |||||
| 154 | 12J24 | 101322-13 Assy-distributor 3 Tube-(cto) |
|
- | |||||
| 155 | 12J25 | 101322-14 Assy-distributor 4 Tube-(cto) |
|
- | |||||
| 158 | 12J47 | Orifice Ring 22 I.d. X 6 -(cto) |
|
- | |||||
| 250 | 15T39 | 616386-02 Assy-coil Cond 2 Row-(cto) |
|
- | |||||
| 254 | 12J39 | 103366-11 Valve-exp Nxt Outdoor 2.5t |
|
- | |||||
| 262 | 15T40 | Comp-cope Zps31k5e-pfv-830 |
|
- | |||||
| 267 | 15D61 | 105026-01 Motor-fan 1/2hp 208/230v 60hz- |
|
- | |||||
| 268 | 27W58 | Fan Assy-(cto) |
|
- | |||||
| 272 | R100303-01 | Grommet-compressor-(cto) |
|
- | |||||
| 273 | R100301-01 | Bolt-sleeve Combination-(cto) |
|
- | |||||
| 276 | 14N17 | Harness-comp Molded Plug-(cto) |
|
- | |||||
| 291 | 24X73 | Sensor Defrost (harness) |
|
- | |||||
| 295 | 19V97 | Valve-reversing 1/2 X 7/8(cto) |
|
- | |||||
| 296 | 12L20 | 100087-14 Switch-hi Press |
|
- | |||||
| 297 | 12L21 | 100087-15 Switch-lo Press |
|
- | |||||
| 301 | 49W23 | Drier - Biflow (r410a)cto |
|
- | |||||
| 309 | 22C74 | Pan-drain Plastic Insul Sm-(cto) |
|
- | |||||
| 311 | 24X72 | Harness-wiring 16 Seer Hp |
|
- | |||||
| 319 | 95M48 | Valve Core |
|
- | |||||
| 320 | 95M47 | Fitting - Pressuretap-(cto) |
|
- | |||||
| 952 | R622285-02E | Panel-blower Access Sm-(cto) |
|
- | |||||
| 954 | R621996-01E | Panel-louver Front Small-(cto) |
|
- | |||||
| 962 | R621893-02E | Panel -utility Hp-ac Sm-(cto) |
|
- | |||||
| 970 | R621894-01E | Post-corner Small-(cto) |
|
- | |||||
| 978 | R621888-02E | Panel -compressor Access Sm-(cto) |
|
- | |||||
| 981 | R621892-01E | Panel -heat Exchanger Access-(cto) |
|
- | |||||
| 988 | 12J45 | Guard-fan Wire Blk Dia 27.134-(cto) |
|
- | |||||
| 990 | R622635-03 | Panel -rear Sm 3dr Arm Txt Gray-(cto) |
|
- | |||||
| 992 | R621890-02E | Panel-louver Left Side Small |
|
- | |||||
| 997 | R611267-02E | Panel Top Sm Armstrong Txt Gray-(cto) |
|
- | |||||
| 1009 | 49M73 | Harness (molded Plug)-(cto) |
|
- | |||||
| 9997 | 107213-04 | Side Gea Badge |
|
- | |||||
| 9998 | 107213-06 | Top Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
