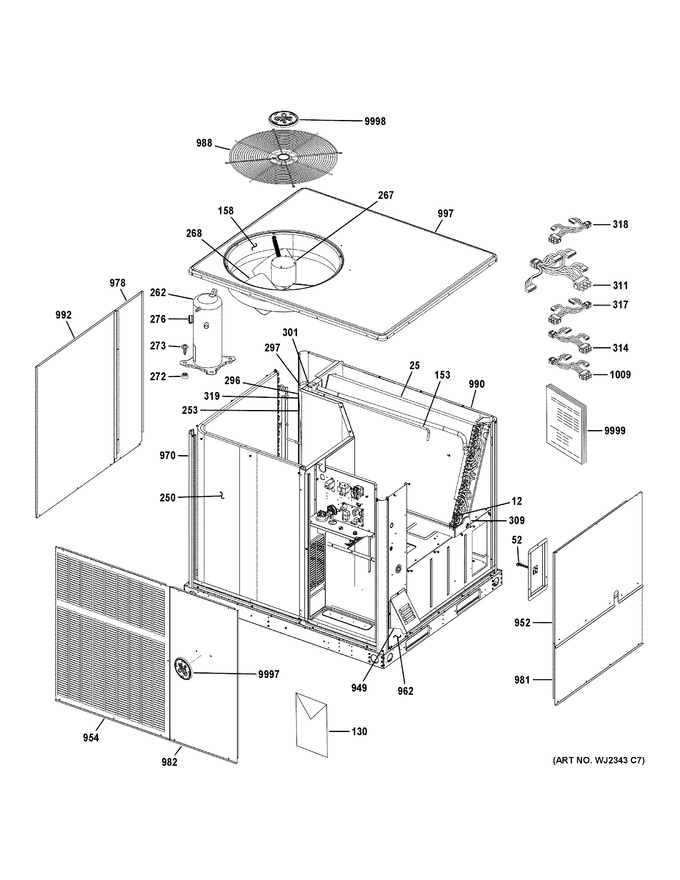

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | R104326-02 | Switch-interlock Level Sensor Nc |
|
- | |||||
| 25 | 14Y60 | Assy Coil Evap 20x32 3-row-(cto) |
|
- | |||||
| 52 | 22B75 | 102857-28 Limit Control (stilt) 200f |
|
- | |||||
| 130 | 537846-03 | Label-wiring Diagram 16 Ge-(cto) |
|
- | |||||
| 153 | 14Y57 | Assy-distributor 5-tube-(cto) |
|
- | |||||
| 158 | 12J47 | Orifice Ring 22 I.d. X 6 -(cto) |
|
- | |||||
| 250 | 12J32 | Assy-coil Cond 1 Row -(cto) |
|
- | |||||
| 253 | 12J38 | 103366-10 Valve-exp Nxt Indoor 2t |
|
- | |||||
| 262 | 91W08 | C0 Zps20k5e-pfv-830 2t R410a 230v-1 |
|
- | |||||
| 267 | 92W51 | 100483-33 Cond Fan Mtr 1/6hp 208-230-1 |
|
- | |||||
| 268 | 27W58 | Fan Assy-(cto) |
|
- | |||||
| 272 | R100303-01 | Grommet-compressor-(cto) |
|
- | |||||
| 273 | R100301-01 | Bolt-sleeve Combination-(cto) |
|
- | |||||
| 276 | 14N17 | Harness-comp Molded Plug-(cto) |
|
- | |||||
| 296 | 12L20 | 100087-14 Switch-hi Press |
|
- | |||||
| 297 | 12L21 | 100087-15 Switch-lo Press |
|
- | |||||
| 301 | 12K40 | Drier R410a - One Way - 55g-(cto) |
|
- | |||||
| 309 | 22C74 | Pan-drain Plastic Insul Sm-(cto) |
|
- | |||||
| 311 | 14Y58 | W/h Secondary Elec-(cto) |
|
- | |||||
| 314 | 10W54 | Harness-mtr (control)-(cto) |
|
- | |||||
| 317 | 15V52 | Harness-wiring-(cto) |
|
- | |||||
| 318 | 49M73 | Harness (molded Plug)-(cto) |
|
- | |||||
| 319 | 95M48 | Valve Core |
|
- | |||||
| 949 | 12B75 | Vent Hood-(cto) |
|
- | |||||
| 952 | R622285-02E | Panel-blower Access Sm-(cto) |
|
- | |||||
| 954 | R621890-02E | Panel-louver Left Side Small |
|
- | |||||
| 962 | R622288-01E | Panel -utility G/e Sm-(cto) |
|
- | |||||
| 970 | R621894-01E | Post-corner Small-(cto) |
|
- | |||||
| 978 | R621888-02E | Panel -compressor Access Sm-(cto) |
|
- | |||||
| 981 | R621892-01E | Panel -heat Exchanger Access-(cto) |
|
- | |||||
| 982 | R621889-02E | Panel -control Access Sm-(cto) |
|
- | |||||
| 988 | 12J45 | Guard-fan Wire Blk Dia 27.134-(cto) |
|
- | |||||
| 990 | R622635-03 | Panel -rear Sm 3dr Arm Txt Gray-(cto) |
|
- | |||||
| 992 | R621996-01E | Panel-louver Front Small-(cto) |
|
- | |||||
| 997 | R611267-02E | Panel Top Sm Armstrong Txt Gray-(cto) |
|
- | |||||
| 1009 | 22C75 | Harness-wiring Harness-(cto) |
|
- | |||||
| 9997 | 107213-04 | Side Gea Badge |
|
- | |||||
| 9998 | 107213-06 | Top Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
