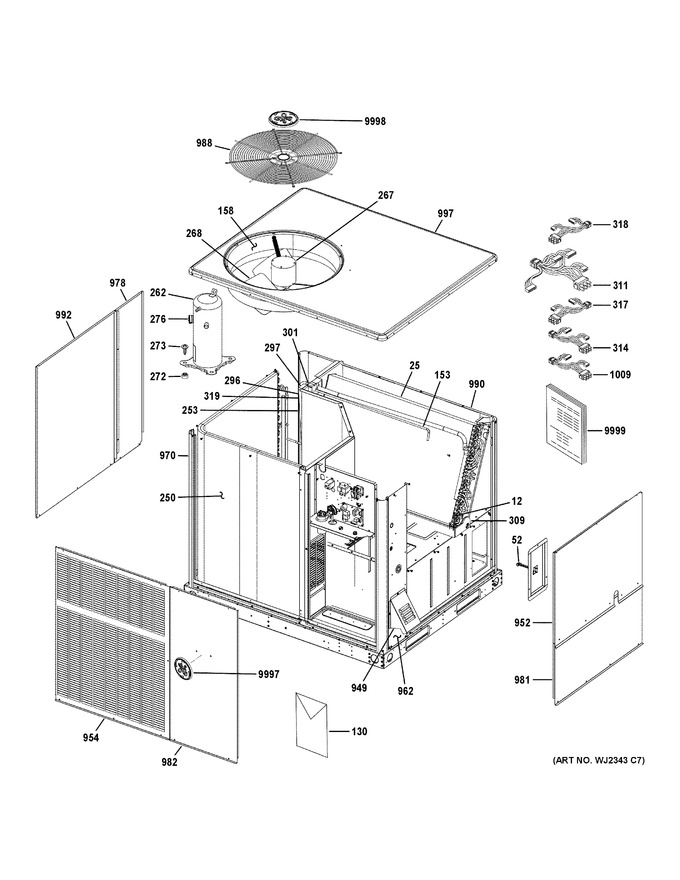

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | R104326-02 | Switch-interlock Level Sensor Nc |
|
- | |||||
| 25 | 14Y64 | Assy-coil Evap 24x40.5 3 Row-(cto) |
|
- | |||||
| 52 | 22B74 | 102857-27 Limit Control (195f) |
|
- | |||||
| 130 | 537846-03 | Label-wiring Diagram 16 Ge-(cto) |
|
- | |||||
| 153 | 14Y62 | Assy-distributor 9 Tube-(cto) |
|
- | |||||
| 158 | 12J47 | Orifice Ring 22 I.d. X 6 -(cto) |
|
- | |||||
| 250 | 14Y61 | Assy-coil(2 Row J-style 22 Fpi-(cto) |
|
- | |||||
| 253 | 12J36 | 103366-08 Valve-exp Nxt Indoor 4t |
|
- | |||||
| 262 | 91W11 | C0 Zps49k5e-pfv-830 4t R410a 230v-1 |
|
- | |||||
| 267 | 12Y65 | 100483-43 Cond Fan Mtr 1/4hp 208/230-1 |
|
- | |||||
| 268 | 14Y56 | Fan 24" 3-blade 30-pitch Ccw-(cto) |
|
- | |||||
| 272 | R100303-01 | Grommet-compressor-(cto) |
|
- | |||||
| 273 | R100301-01 | Bolt-sleeve Combination-(cto) |
|
- | |||||
| 276 | 14N17 | Harness-comp Molded Plug-(cto) |
|
- | |||||
| 296 | 12L20 | 100087-14 Switch-hi Press |
|
- | |||||
| 297 | 12L21 | 100087-15 Switch-lo Press |
|
- | |||||
| 301 | 12K40 | Drier R410a - One Way - 55g-(cto) |
|
- | |||||
| 309 | 21V30 | Pan-drain Plst Insul Lg-(cto) |
|
- | |||||
| 311 | 14Y58 | W/h Secondary Elec-(cto) |
|
- | |||||
| 314 | 10W54 | Harness-mtr (control)-(cto) |
|
- | |||||
| 317 | 15V52 | Harness-wiring-(cto) |
|
- | |||||
| 318 | 49M73 | Harness (molded Plug)-(cto) |
|
- | |||||
| 319 | 95M48 | Valve Core |
|
- | |||||
| 949 | 12B75 | Vent Hood-(cto) |
|
- | |||||
| 952 | R622285-01E | Pnl Blower Access Lg-(cto) |
|
- | |||||
| 954 | R621890-01E | Pnl -louver Left Side Lg-(cto) |
|
- | |||||
| 962 | R622288-02E | Pnl -utility G/e Lg-(cto) |
|
- | |||||
| 970 | R621894-02E | Post-corner Large-(cto) |
|
- | |||||
| 978 | R621888-01E | Pnl -compressor Access Lg-(cto) |
|
- | |||||
| 981 | R621892-01E | Panel -heat Exchanger Access-(cto) |
|
- | |||||
| 982 | R621889-01E | Pnl -control Access Lg-(cto)-(cto) |
|
- | |||||
| 988 | 22H24 | Guard-fan Wire Blk-(cto) |
|
- | |||||
| 990 | R622635-02 | Pnl Rear Lg 3dr Arm Txt Gray-(cto) |
|
- | |||||
| 992 | R621891-01E | Pnl-louver Front Large-(cto) |
|
- | |||||
| 997 | R611802-02E | Pnl Top Lg Arm Txt Gray-(cto) |
|
- | |||||
| 1009 | 22C75 | Harness-wiring Harness-(cto) |
|
- | |||||
| 9997 | 107213-04 | Side Gea Badge |
|
- | |||||
| 9998 | 107213-06 | Top Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
