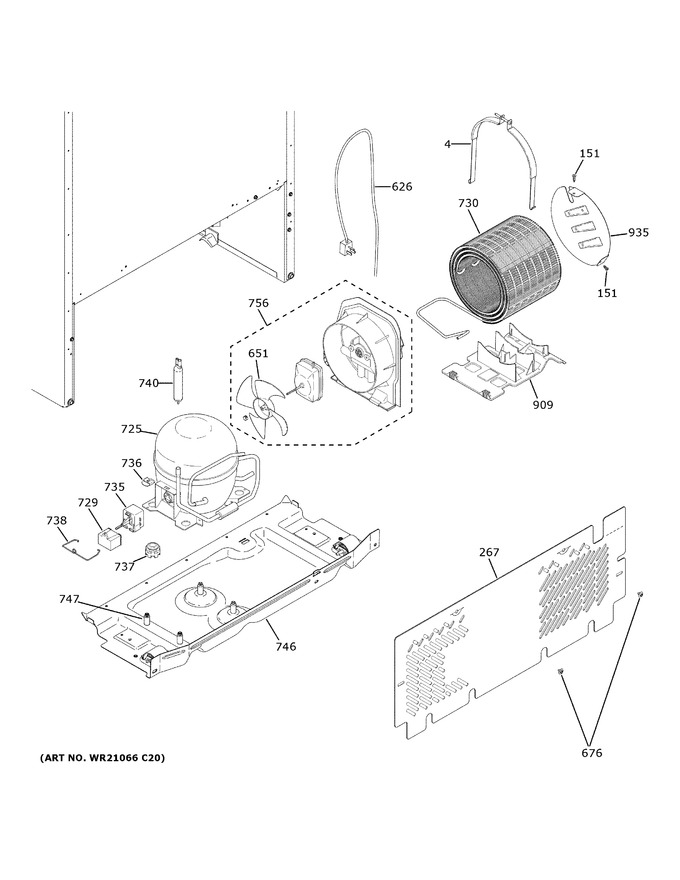

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WR01X40071 | Condenser Strap |
|
- | |||||
| 151 | WD02X10151 | Scr 10-16 Ab 43whex 5/8 |
|
- | |||||
| 267 | WR82X31742 | Rear Access Cover 33 |
|
- | |||||
| 626 | WR55X31301 | Machine Compartment Harness And Power Co |
|
- | |||||
| 651 | WG03F10555 | Blade Cond Fan Asm (Replaces: WR60X10207) |
|
Immediately | $ 17.47 | ||||
| 676 | WR01X43665 | Scr 8-32 Ca Ihxw .615 S |
|
- | |||||
| 700 | WR29X31127 | Water Diverter |
|
- | |||||
| 725 | WR87X37849 | Compressor Meizhi |
|
- | |||||
| 729 | WR55X33686 | 10 Uf Capacitor |
|
- | |||||
| 730 | WR84X31398 | Condenser |
|
- | |||||
| 735 | WR55X31519 | Ol Ptcr Combo |
|
- | |||||
| 736 | WR02X28781 | Compressor Mounting Clip |
|
- | |||||
| 737 | WR02X22869 | Grommet |
|
- | |||||
| 738 | WR02X26153 | Clip Retainer Mei |
|
- | |||||
| 740 | WR87X30875 | R600 Drier W/ Red Cap |
|
- | |||||
| 746 | WR02X43988 | Baseplate W/ Compressor Studs 33" |
|
- | |||||
| 747 | WR1X1779 | Stud Mtgcomp |
|
- | |||||
| 756 | WR17X31219 | Condenser Fan And Housing |
|
- | |||||
| 909 | WR02X31487 | Condenser Support |
|
- | |||||
| 935 | WR17X31468 | Condenser Baffle |
|
- |
