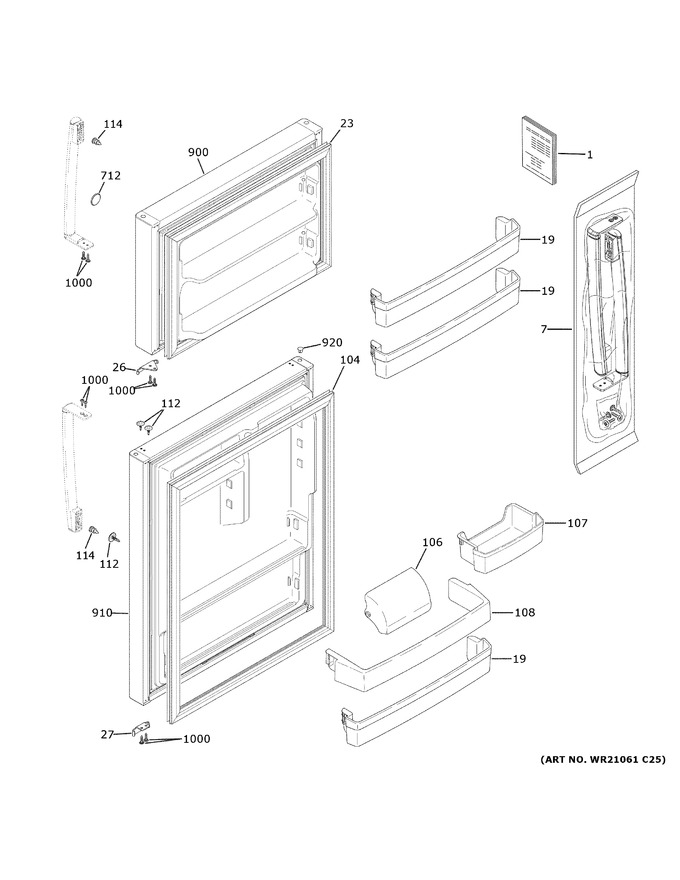

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1000678		Pm Mini Manual And Wiring		Appelez-nous	-
7	WR12X31083		Stainless Steel Handle Pack		Appelez-nous	-
19	WR71X42246		Can Shelf 22		Appelez-nous	-
23	WR14X31103		Dorian Gray Freezer Door Gasket 22		Appelez-nous	-
26	WR02X28290		Freezer Door Stop Dorian Gray		Appelez-nous	-
27	WR02X28286		Refrigerator Door Stop Dorian Gray		Appelez-nous	-
104	WR14X31082		Dorian Gray Fresh Food Door Gasket 22		Appelez-nous	-
106	WR71X31156		Dairy Door 33		Appelez-nous	-
107	WR71X31177		Modular Door Bin 33		Appelez-nous	-
108	WR71X42245		Refrigerator Door Shelf 22		Appelez-nous	-
112	WR02X21242		Plug Door Rvsbl				$ 1.15
114	WR01X28657		Refrigerator Handle Mount		Appelez-nous	-
712	WR02X30818		Crosley Badge		Appelez-nous	-
900	WR78X31164		Stainless Freezer Door 22		Appelez-nous	-
910	WR78X31187		Stainless Fresh Food Door 22		Appelez-nous	-
920	WR02X21663		Plug Button Thimble		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-
