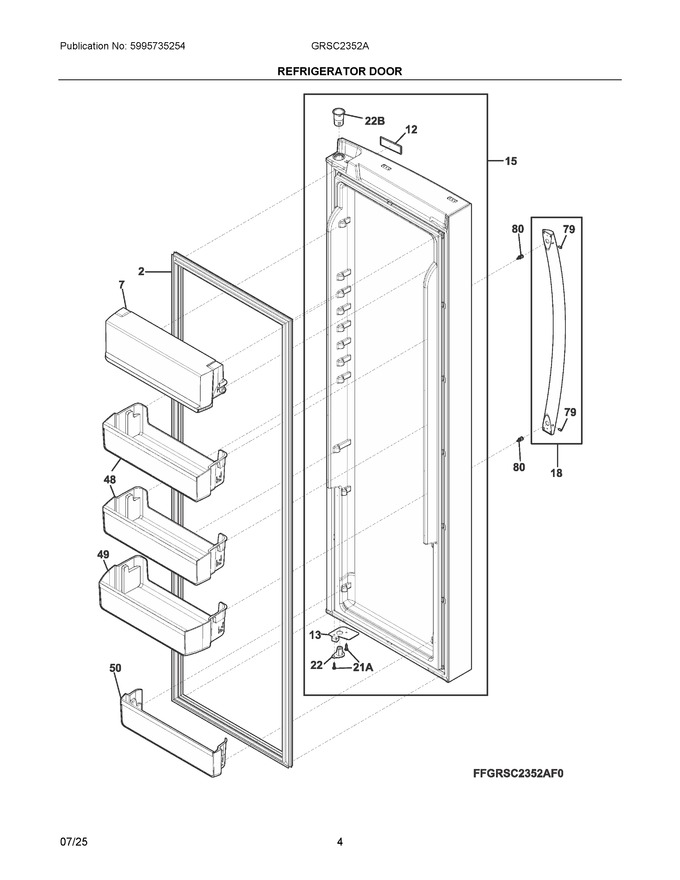

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510207 | Gasket-refr Door, Black, Magnetic (Replaces: 241510203) |
|
Immediately | $ 107.93 | ||||
| 7 | 5304526896 | Dairy Compartment, Assembly, Complete |
|
$ 158.41 | |||||
| 12 | 5304510904 | Nameplate, Black Stainless, Frig Gallery |
|
$ 60.67 | |||||
| 13 | 241990201 | Door Stop, Black, Ref |
|
$ 23.63 | |||||
| 15 | 5304526963 | Door Assembly, Fresh Food, Black Stainless, Complete |
|
$ 707.31 | |||||
| 18 | 5304527112 | Handle, Door, Black Stainless, W/set Screws |
|
Immediately | $ 116.29 | ||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.88 | |||||
| 48 | 5304526900 | Bin Assembly, 2 Liter, Ff Door, W/trim |
|
$ 111.83 | |||||
| 49 | 5304536374 | Bin Assembly, Gallon, Ff Door, W/trim (Replaces: 5304526897) |
|
$ 28.34 | |||||
| 50 | 5304526898 | Bin Assembly, Lower, Ff Door, W/trim |
|
$ 68.51 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 14.18 | |||||
| NI | 240494001 | Button, Plug, White |
|
Immediately | $ 20.22 | ||||
| NIA | 241601002 | Wrench, Allen |
|
- |
