01 - Cover Sheet
02 - Backguard

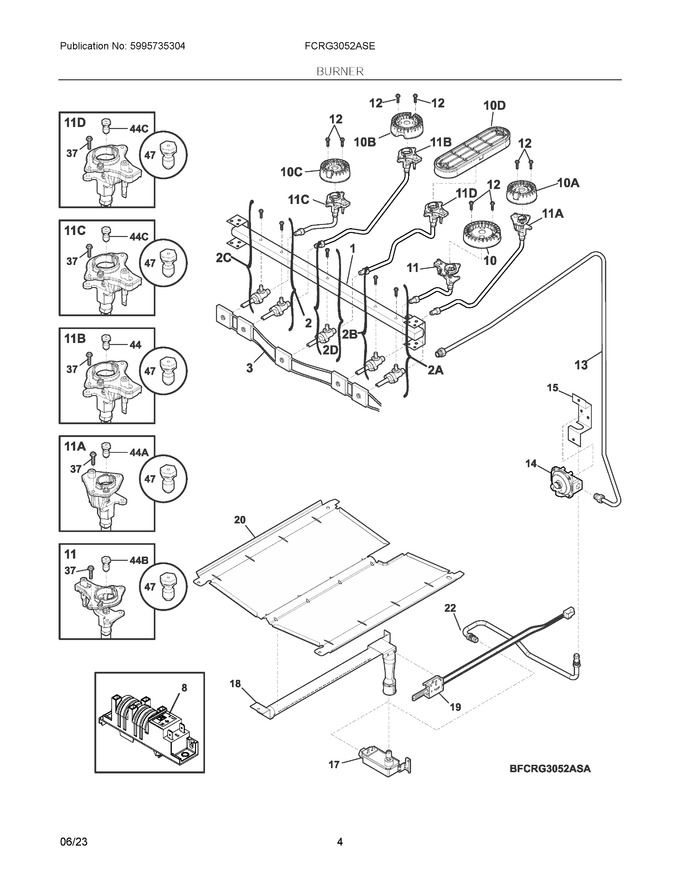

03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304513540 | Manifold, Pipe |
|
$ 110.39 | |||||
| 2 | 5304506549 | Valve, Top Burner, Blue Stem, 1125btu |
|
Immediately | $ 69.27 | ||||
| 3 | 5304527991 | Harness, Ignition |
|
$ 109.55 | |||||
| 8 | 808608804 | Spark Module |
|
Immediately | $ 84.51 | ||||
| 10 | 316438400 | Burner, Sealed, 17k |
|
Immediately | $ 92.69 | ||||
| 11 | 316536621 | Ignitor/orifice Assy .,, Top Burner, Right Front, 16k, W/tube & Holder |
|
$ 189.00 | |||||
| 12 | 316540900 | Screw, Burner, Head Mtg, (8) |
|
Immediately | $ 16.85 | ||||
| 13 | 316489101 | Tube-manifold Supply |
|
Immediately | $ 113.40 | ||||
| 14 | 316091711 | Regulator, Pressure (Replaces: 5304498819) |
|
Immediately | $ 100.03 | ||||
| 15 | 316091600 | Bracket, Regulator |
|
$ 81.73 | |||||
| 17 | 316572800 | Valve, Safety |
|
$ 336.21 | |||||
| 18 | 316404400 | Burner, Oven |
|
$ 121.22 | |||||
| 19 | 316489403 | Ignitor, Bake (Replaces: 5304508786) |
|
Immediately | $ 125.72 | ||||
| 20 | 5304519024 | Baffle, Oven Burner |
|
Immediately | $ 89.32 | ||||
| 22 | 5304520704 | Tube, Valve, 3/8 |
|
$ 41.29 | |||||
| 37 | 316240600 | Screw, Assy Mtg, (8), Ignitor/orifice |
|
Immediately | $ 13.48 | ||||
| 44 | 316527502 | Orifice, Burner, 12k |
|
$ 25.20 | |||||
| 47 | GRLP4 | Lp Conversion Kit (Replaces: 316542416) |
|
Immediately | $ 63.00 | ||||
| 10A | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 63.00 | ||||
| 10B | 316438000 | Burner, Sealed, 12k |
|
$ 75.34 | |||||
| 10C | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 58.28 | ||||
| 10D | 316559300 | Burner, Sealed, 9.5k, Oval |
|
$ 196.88 | |||||
| 11A | 316536610 | Ignitor/orifice Assy., Top Burner, Right Rear, 5k, W/holder, Tube |
|
Immediately | $ 102.64 | ||||
| 11B | 316536612 | Ignitor/orifice Assy., Top Burner, Left Rear, 12k, W/holder, Tube |
|
$ 129.47 | |||||
| 11C | 316536602 | Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube |
|
$ 147.36 | |||||
| 11D | 316536623 | Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder & Tube |
|
$ 164.12 | |||||
| 2A | 5304506547 | Valve, Top Burner, Black Stem, 500btu |
|
$ 76.68 | |||||
| 2B | 5304507282 | Valve, Top Burner, White Stem, 1500btu (Replaces: 5304506550) |
|
Immediately | $ 59.83 | ||||
| 2C | 5304506548 | Valve, Top Burner, Green Stem, 850btu |
|
Immediately | $ 91.84 | ||||
| 2D | 5304506551 | Valve, Top Burner, Pink Stem, 2500btu |
|
$ 68.25 | |||||
| 44A | 316527504 | Orifice, Burner, 5k |
|
$ 25.20 | |||||
| 44B | 316527508 | Orifice, Top Burner, 16k |
|
$ 20.48 | |||||
| 44C | 316527500 | Orifice, Burner, 9.5k |
|
$ 23.78 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | GRLP5 | Lp Conversion Kit, W/instructions |
|
Immediately | $ 55.03 | ||||
| NI | 5304494425 | Harness, Ignitor Module |
|
$ 96.06 | |||||
| NI | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 15.75 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 14.96 | |||||
| NI | 316260800 | Screw-shoulder, W/shoulder, #8-18 X 1/2 |
|
$ 14.96 | |||||
| NIA | 316021104 | Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt |
|
$ 8.66 | |||||
| NIA | 316498100 | Shield, Wire, Safety Valve |
|
$ 16.85 | |||||
| NIA | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NIB | 5304505563 | Wire, Ground, Spark Module, W/connector |
|
Immediately | $ 18.03 |
