01 - Cover Sheet

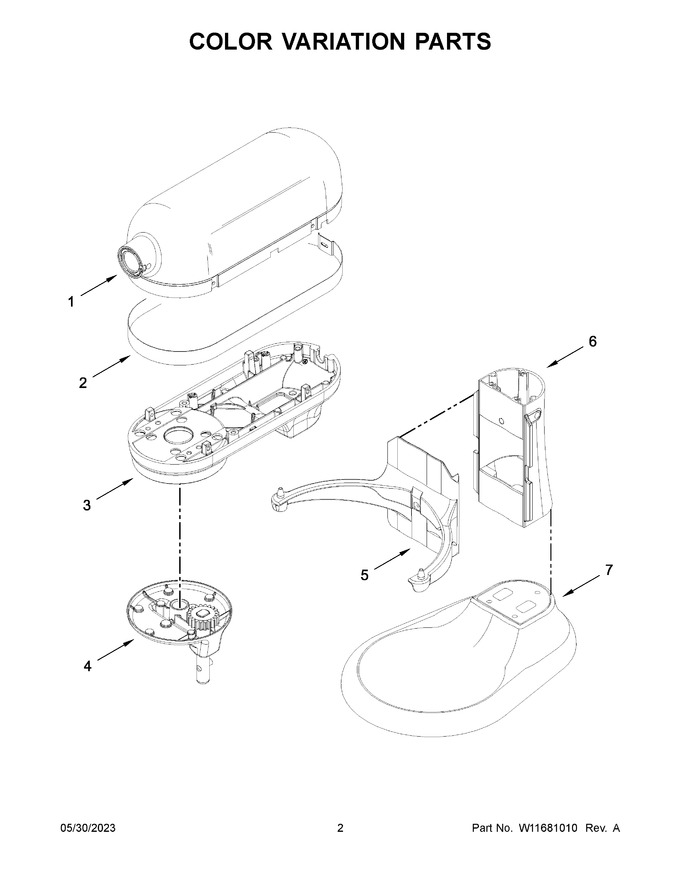

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11255425 | Motor Housing (blue Velvet) |
|
- | |||||
| 2 | W11755731 | Trim Band (bright Aluminum) (Replaces: W11420346) |
|
- | |||||
| 3 | W11520141 | Lower Gearcase (blue Velvet) |
|
- | |||||
| 4 | W11595416 | Planetary (silent Silver) |
|
$ 85.73 | |||||
| 5 | W11255416 | Bowl Support And Pins (blue Velvet) |
|
- | |||||
| 6 | W11255413 | Column And Pins (blue Velvet) |
|
- | |||||
| 7 | W11255409 | Base And Foot Assembly (blue Velvet) |
|
- | |||||
| 1A | W11236433 | Motor Housing (matte Dried Rose) |
|
- | |||||
| 1B | W11520729 | Motor Housing (mineral Water Blue) |
|
- | |||||
| 3A | W11520139 | Lower Gearcase (matte Dried Rose) |
|
- | |||||
| 3B | W11520127 | Lower Gearcase (blue Velvet) |
|
- | |||||
| 5A | W11438574 | Bowl Support And Pins (matte Dried Rose) |
|
- | |||||
| 5B | W11520075 | Bowl Support And Pins (mineral Water Blue) |
|
- | |||||
| 6A | W11234594 | Column And Pins (matte Dried Rose) |
|
- | |||||
| 6B | W11520107 | Column And Pins (mineral Water Blue) |
|
- | |||||
| 7A | W11236428 | Base And Foot Assembly (matte Dried Rose) |
|
- | |||||
| 7B | W11520052 | Base And Foot Assembly (mineral Water Blue) |
|
- |
