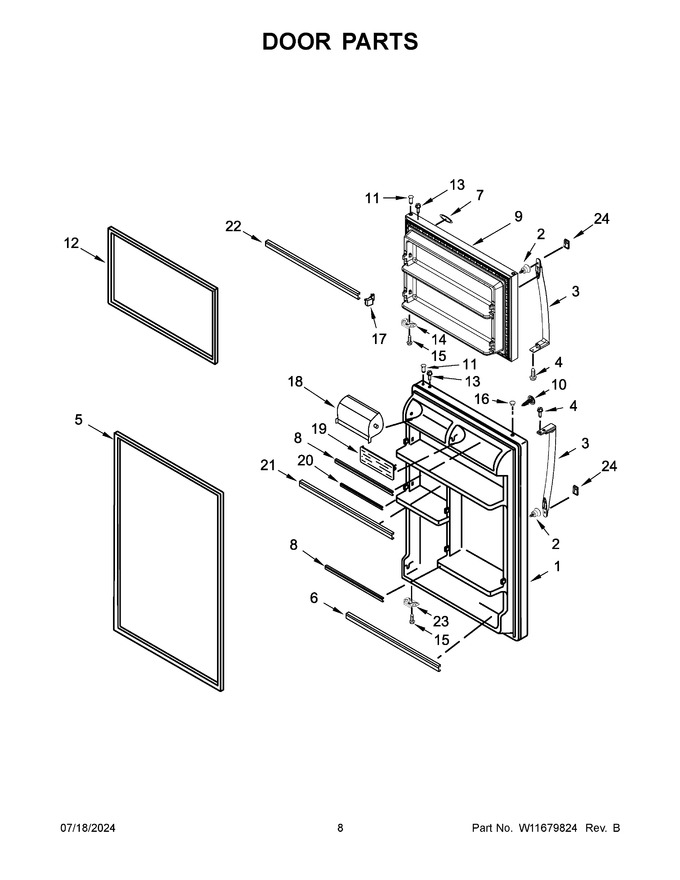

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10636410		Refrigerator Door (includes Door Gasket) (white)   (Replaces: W10636410)				$ 685.68
2	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
3	WPW10672333		Handle, Door (white)   (Replaces: W10672333)			Immediately	$ 189.08
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	W10838574		Gasket, Door (white)   (Replaces: W10638676)			Immediately	$ 88.27
6	W11097831		Trim, Door   (Replaces: W10719703)				$ 12.30
7	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
8	W11129820		Trim, Door   (Replaces: W10719700)			Immediately	$ 127.34
9	LW10636409		Freezer Door (includes Door Gasket) (white)   (Replaces: W10636409)				$ 667.25
10	W10830984		Plug, Hole (white)   (Replaces: W10663736)				$ 8.38
11	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
12	W10861499		Gasket, Door (white)   (Replaces: W10638675)			Immediately	$ 98.40
13	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
16	WP2212648		Plug, Hole (white)   (Replaces: 2212648)			Immediately	$ 8.19
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
18	WP2218113		Door, Compartment   (Replaces: 2218113)			Immediately	$ 50.33
19	WP2188234		Door, Flip Up   (Replaces: 2188234)			Immediately	$ 60.31
20	W11106290		Trim, Shelf Door   (Replaces: W10719701)			Immediately	$ 127.34
21	W11170805		Trim, Door   (Replaces: W10678772)				$ 127.34
22	W11126055		Trim, Door   (Replaces: W10719702)			Immediately	$ 127.34
23	W11402852		Bracket, Door Stop   (Replaces: W10638692)				$ 68.81
24	WPW10672338		Handle, Trim (white)   (Replaces: W10672338)			Immediately	$ 29.91
10A	W10830983		Plug, Hole (black)   (Replaces: W10663737)				$ 19.54
10B	W10830982		Plug, Hole (grey)   (Replaces: W10663739)			Immediately	$ 19.54
12A	W11229610		Gasket, Door (black)   (Replaces: W10667843)			Immediately	$ 300.69
12B	W11574983		Gasket, Door (grey)   (Replaces: W11030682)				$ 92.37
16A	WP2212651		Plug, Hole (black)   (Replaces: 2212651)				$ 24.21
16B	WP2254517		Plug, Hole (grey)   (Replaces: 2254517)			Immediately	$ 24.34
1A	LW10668874		Refrigerator Door (includes Door Gasket) (black)   (Replaces: W10668874)				$ 881.88
1B	LW10638684		Refrigerator Door (includes Door Gasket) (stainless)   (Replaces: W10638684)				$ 1,165.75
24A	W10838316		Handle, Trim (black)   (Replaces: W10672339)				$ 31.08
24B	W11519504		Handle, Trim (gray)   (Replaces: W11374428)			Immediately	$ 50.43
3A	WPW10672334		Handle, Door (black)   (Replaces: W10672334)				$ 227.34
3B	W10806512		Handle, Door (stainless)   (Replaces: W10653470)			Immediately	$ 201.04
5A	W11240749		Gasket, Door (black)   (Replaces: W10678768)			Immediately	$ 300.69
5B	W11784834		Gasket, Door (grey)   (Replaces: W11030683)			Immediately	$ 223.35
9A	LW10668875		Freezer Door (includes Door Gasket) (black)   (Replaces: W10668875)				$ 717.73
9B	LW10638683		Freezer Door (includes Door Gasket) (stainless)   (Replaces: W10638683)				$ 1,081.33
NI	W10676240		Door Reversal Kit Stainless Model				$ 112.54
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11415957		Door Reversal Kit, Black Model   (Replaces: W10676239)				$ 80.44
NI	W11416038		Door Reversal Kit, White Model   (Replaces: W10662124)				$ 83.24
