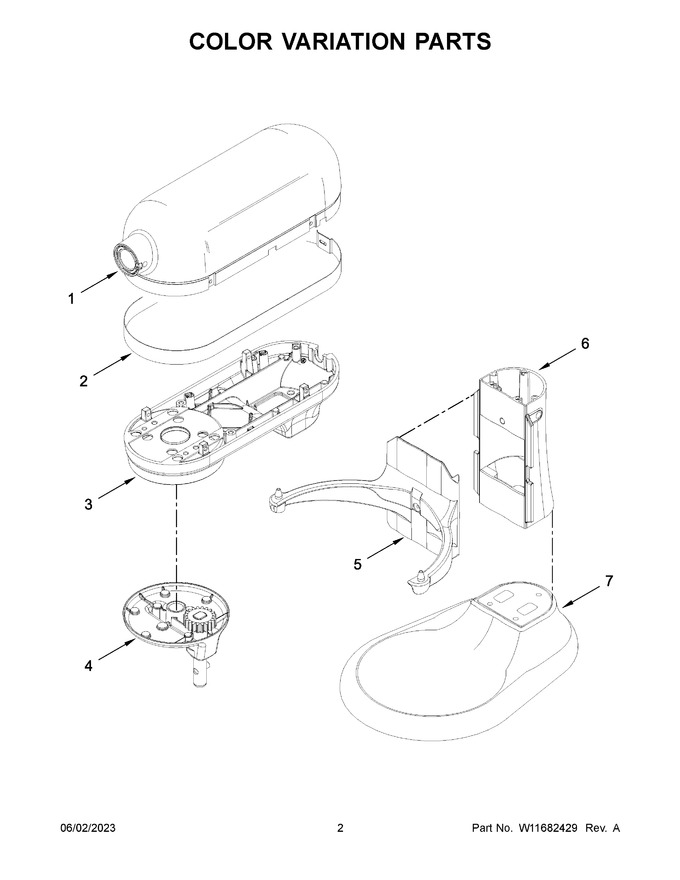

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 2 | W11420348 | Trim Band (light Brushed Aluminum) |
|
- | |||||
| 3 | W11421149 | Lower Gearcase (onyx Black) |
|
- | |||||
| 4 | W11513268 | Planetary (onyx Black) |
|
- | |||||
| 5 | 9705356 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 6 | 9705320 | Column And Pins (onyx Black) |
|
- | |||||
| 7 | 9705344 | Base And Foot Assembly (onyx Black) |
|
- | |||||
| 1A | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 3A | W11520144 | Lower Gearcase (white) |
|
- | |||||
| 4A | W11513267 | Planetary (white) |
|
- | |||||
| 5A | 9703674 | Bowl Support And Pins (white) |
|
$ 74.91 | |||||
| 6A | 9703673 | Column And Pins (white) |
|
$ 81.26 | |||||
| 7A | 9703690 | Base And Foot Assembly (white) |
|
- |
