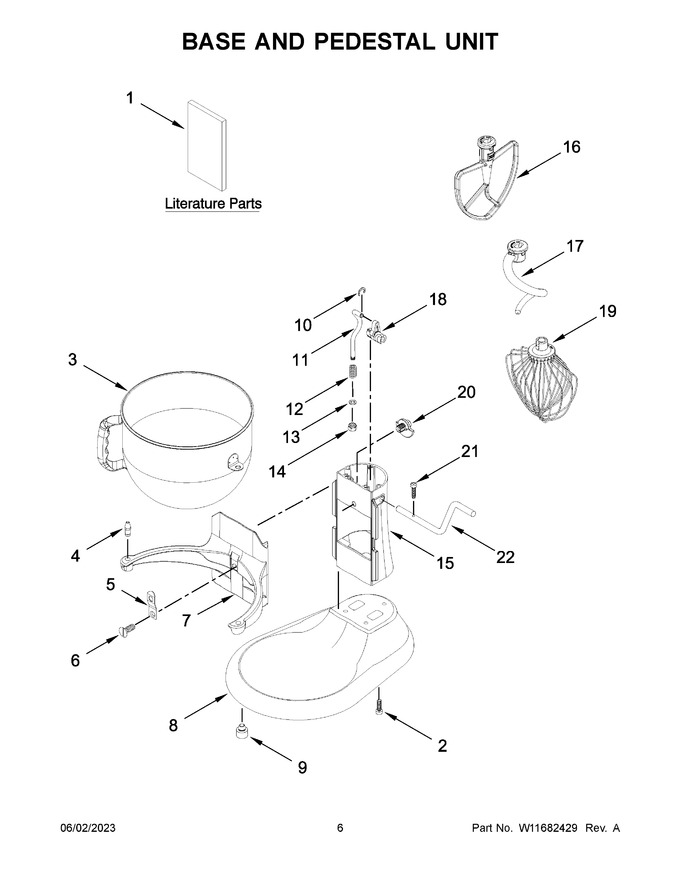

04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11616370 | Use And Care Guide |
|
- | |||||
| 2 | W10913677 | Screw (Replaces: 3400200) |
|
$ 4.64 | |||||
| 3 | WPW10717235 | Bowl, 5 Quart (polished) (Replaces: W10717235) |
|
$ 110.24 | |||||
| 4 | WP240185 | Pin, Retaining Bowl (Replaces: 240185) |
|
$ 4.50 | |||||
| 5 | WPW10504114 | Clip, Bowl Retainer (Replaces: W10504114) |
|
Immediately | $ 5.14 | ||||
| 6 | W10861883 | Screw (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 7 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 8 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 9 | WP9708649 | Foot (Replaces: 9708649) |
|
Immediately | $ 4.79 | ||||
| 10 | WP9703307 | Ring, Retaining (Replaces: 9703307) |
|
Immediately | $ 4.42 | ||||
| 11 | W11775238 | Rod, Bowl Lift (Replaces: W11376364) |
|
$ 5.73 | |||||
| 12 | 4159622 | Spring, Lift Rod (Replaces: 9237) |
|
Immediately | $ 4.70 | ||||
| 13 | W11708395 | Washer (Replaces: 9703439) |
|
$ 4.47 | |||||
| 14 | 8533907 | Nut |
|
$ 24.83 | |||||
| 15 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 16 | W11677198 | Beater, Flat (coated) (Replaces: W11520328) |
|
- | |||||
| 17 | W11678786 | Hook, Dough (Replaces: W11520329) |
|
- | |||||
| 18 | WP9706885 | Arm, Bowl Lift (Replaces: 9706885) |
|
Immediately | $ 5.17 | ||||
| 19 | WP9703491 | Whip, Wire (Replaces: 9703491) |
|
Immediately | $ 43.13 | ||||
| 20 | W11721849 | Cam, Adjusting (Replaces: 9703426) |
|
$ 6.08 | |||||
| 21 | WP3400814 | Screw (Replaces: 3400863) |
|
$ 4.62 | |||||
| 22 | W11778321 | Handle, Bowl Lift (Replaces: W11376371) |
|
$ 24.01 |
