SELECT A DIAGRAM
New Model Search:

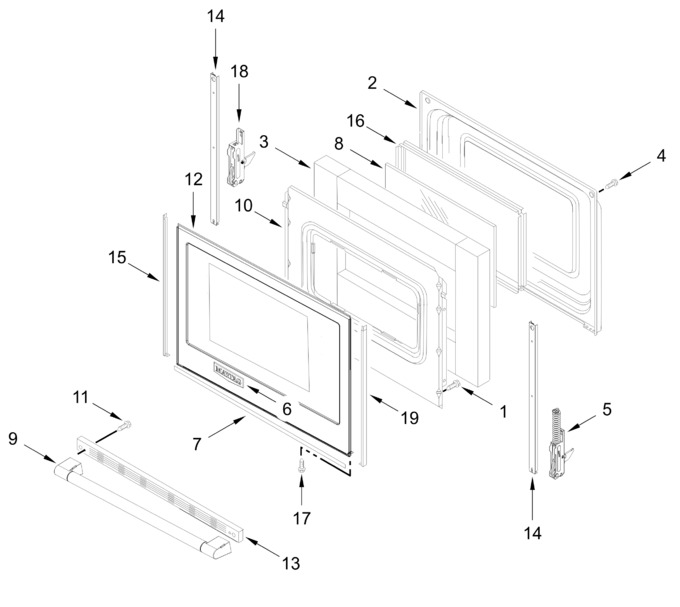

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 2 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 4 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 5 | WPW10299224 | Hinge, Active (with Spring) (Replaces: W10299224) |
|
Immediately | $ 73.47 | ||||
| 6 | W11648754 | Badge (Replaces: W11628148) |
|
Immediately | $ 42.40 | ||||
| 7 | WP8523177 | Trim Lower, Door (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 8 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 9 | W11648982 | Door, Handle (stainless) (Replaces: W11495825) |
|
$ 219.85 | |||||
| 10 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 233.31 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 12 | W11702167 | Glass, Outer Door (black) (Replaces: W10884159) |
|
Immediately | $ 184.73 | ||||
| 13 | W11716402 | Door Trim Vent (black) (Replaces: W11675010) |
|
- | |||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 15 | W10761018 | Trim, Door Side (black, Left) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 16 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 17 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 18 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 19 | ARIDE791DAFC20D155D0A026C314AB185E8 | Trim, Door |
|
- | |||||
| W10761014 | Trim, Door Side (black, Right) (Replaces: W10746435) |
|
Immediately | $ 72.96 |
