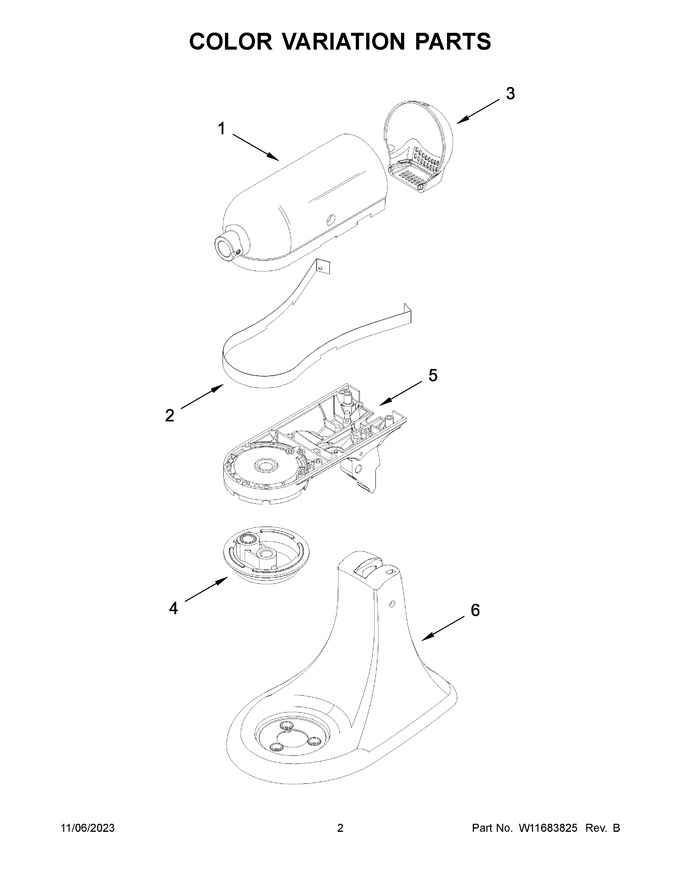

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11605627 | Motor Housing (almond Cream/creme) |
|
- | |||||
| 2 | W11188411 | Trim Band (platinum) (Replaces: W10863292) |
|
- | |||||
| 3 | 24025316 | End Cover (almond Cream/creme) |
|
- | |||||
| 4 | 24028618 | Planetary (almond Cream/creme) |
|
- | |||||
| 5 | 24035062 | Lower Gearcase (almond Cream/creme) |
|
- | |||||
| 6 | W11131691 | Pedestal, W/feet And Headlock (almond Cream/creme) (Replaces: 9705577) |
|
- | |||||
| 1A | W11604104 | Motor Housing (cast Iron/imperial Black) |
|
- | |||||
| 1B | W11605631 | Motor Housing (candy Apple Red) |
|
- | |||||
| 1C | W11601770 | Motor Housing (contour Silver) |
|
- | |||||
| 1D | W11603722 | Motor Housing (matte Dried Rose) |
|
- | |||||
| 1E | W11601656 | Motor Housing (empire Red) |
|
- | |||||
| 1F | W11623021 | Motor Housing (matte Fresh Linen) |
|
- | |||||
| 1G | W11604373 | Motor Housing (honey) |
|
- | |||||
| 1H | W11604117 | Motor Housing (ink Blue) |
|
- | |||||
| 1I | W11617715 | Motor Housing (ice/ice Blue) |
|
- | |||||
| 1J | W11684973 | Motor Housing (juniper) |
|
- | |||||
| 1K | W11604153 | Motor Housing (matcha) |
|
- | |||||
| 1L | W11604411 | Motor Housing (medallion Silver) |
|
- | |||||
| 1M | W11603995 | Motor Housing (majestic Yellow) |
|
- | |||||
| 1N | W11601672 | Motor Housing (onyx Black) |
|
$ 90.25 | |||||
| 1O | W11603687 | Motor Housing (pistachio) |
|
$ 100.30 | |||||
| 1P | W11604098 | Motor Housing (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 1Q | W11601255 | Motor Housing (white) |
|
- | |||||
| 3A | 9704805 | End Cover (cast Iron/imperial Black) |
|
- | |||||
| 3B | WPW10239110 | End Cover (candy Apple Red) (Replaces: W10239110) |
|
$ 28.91 | |||||
| 3C | W10350456 | End Cover (contour Silver) |
|
$ 43.04 | |||||
| 3D | W11209501 | End Cover (matte Dried Rose) |
|
- | |||||
| 3E | 24025322 | End Cover (empire Red) |
|
- | |||||
| 3F | W11209458 | End Cover (matte Fresh Linen) |
|
- | |||||
| 3G | W11521177 | End Cover (honey) (Replaces: W11485686) |
|
- | |||||
| 3H | W11113833 | End Cover (ink Blue) |
|
- | |||||
| 3I | 9707667 | End Cover (ice/ice Blue) |
|
- | |||||
| 3J | W11684795 | End Cover (juniper) |
|
- | |||||
| 3K | W11431671 | End Cover (matcha) |
|
- | |||||
| 3L | WPW10435298 | End Cover (medallion Silver) (Replaces: W10435298) |
|
$ 32.04 | |||||
| 3M | 24025321 | End Cover (majestic Yellow) |
|
- | |||||
| 3N | 24025314 | End Cover (onyx Black) |
|
- | |||||
| 3O | 9706841 | End Cover (pistachio) |
|
- | |||||
| 3P | W11209472 | End Cover (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 3Q | 2402531 | End Cover (white) |
|
- | |||||
| 4A | 9704797 | Planetary (cast Iron/imperial Black) |
|
- | |||||
| 4B | W10239112 | Planetary (candy Apple Red) |
|
$ 45.31 | |||||
| 4C | W10350465 | Planetary (contour Silver) |
|
- | |||||
| 4D | W11209496 | Planetary (matte Dried Rose) |
|
- | |||||
| 4E | 24028623 | Planetary (empire Red) |
|
- | |||||
| 4F | W11209453 | Planetary (matte Fresh Linen) |
|
- | |||||
| 4G | W11485717 | Planetary (honey) |
|
- | |||||
| 4H | W11113890 | Planetary (ink Blue) |
|
- | |||||
| 4I | 9707665 | Planetary (ice/ice Blue) |
|
$ 44.59 | |||||
| 4J | W11684977 | Planetary (juniper) |
|
- | |||||
| 4K | W11431678 | Planetary (matcha) |
|
- | |||||
| 4L | WPW10444039 | Planetary (medallion Silver) (Replaces: W10444039) |
|
$ 36.24 | |||||
| 4M | 24028622 | Planetary (majestic Yellow) |
|
- | |||||
| 4N | 24028616 | Planetary (onyx Black) |
|
- | |||||
| 4O | 9706839 | Planetary (pistachio) |
|
- | |||||
| 4P | W11209470 | Planetary (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 4Q | 2402861 | Planetary (white) |
|
- | |||||
| 5A | 9707103 | Lower Gearcase (cast Iron/imperial Black) |
|
- | |||||
| 5B | W10245786 | Lower Gearcase (candy Apple Red) |
|
- | |||||
| 5C | W10350459 | Lower Gearcase (contour Silver) |
|
- | |||||
| 5D | W11209493 | Lower Gearcase (matte Dried Rose) |
|
- | |||||
| 5E | 24035091 | Lower Gearcase (empire Red) |
|
- | |||||
| 5F | W11209451 | Lower Gearcase (matte Fresh Linen) |
|
- | |||||
| 5G | W11485689 | Lower Gearcase (honey) |
|
- | |||||
| 5H | W11113862 | Lower Gearcase (ink Blue) |
|
- | |||||
| 5I | 9708868 | Lower Gearcase (ice/ice Blue) |
|
- | |||||
| 5J | W11684969 | Lower Gearcase (juniper) |
|
- | |||||
| 5K | W11431681 | Lower Gearcase (matcha) |
|
- | |||||
| 5L | WPW10444068 | Lower Gearcase (medallion Silver) (Replaces: W10444068) |
|
$ 119.46 | |||||
| 5M | 24035093 | Lower Gearcase (majestic Yellow) |
|
- | |||||
| 5N | 24035056 | Lower Gearcase (onyx Black) |
|
- | |||||
| 5O | 9706832 | Lower Gearcase (pistachio) |
|
$ 66.91 | |||||
| 5P | W11209465 | Lower Gearcase (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 5Q | 2403504 | Lower Gearcase (white) |
|
- | |||||
| 6A | W10648651 | Pedestal, W/feet And Headlock (cast Iron/imperial Black) |
|
- | |||||
| 6B | W11097313 | Pedestal, W/feet And Headlock (candy Apple Red) (Replaces: W10245720) |
|
- | |||||
| 6C | W10482478 | Pedestal, W/feet And Headlock (contour Silver) |
|
- | |||||
| 6D | W11209491 | Pedestal, W/feet And Headlock (matte Dried Rose) |
|
- | |||||
| 6E | 3184280 | Pedestal, W/feet And Headlock (empire Red) |
|
- | |||||
| 6F | W11209449 | Pedestal, W/feet And Headlock (matte Fresh Linen) |
|
- | |||||
| 6G | W11521178 | Pedestal, W/feet And Headlock (honey) (Replaces: W11485777) |
|
- | |||||
| 6H | W11269286 | Pedestal, W/feet And Headlock (ink Blue) |
|
- | |||||
| 6I | 9708865 | Pedestal, W/feet And Headlock (ice/ice Blue) |
|
- | |||||
| 6J | W11684979 | Pedestal, W/feet And Headlock (juniper) |
|
- | |||||
| 6K | W11431676 | Pedestal, W/feet And Headlock (matcha) |
|
- | |||||
| 6L | WPW10444067 | Pedestal, W/feet And Headlock (medallion Silver) (Replaces: W10444067) |
|
$ 99.89 | |||||
| 6M | 3184281 | Pedestal, W/feet And Headlock (majestic Yellow) |
|
- | |||||
| 6N | W11205080 | Pedestal, W/feet And Headlock (onyx Black) (Replaces: 3184275) |
|
- | |||||
| 6O | 9709637 | Pedestal, W/feet And Headlock (pistachio) |
|
- | |||||
| 6P | W11209463 | Pedestal, W/feet And Headlock (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 6Q | WP3184273 | Pedestal, W/feet And Headlock (white) (Replaces: 3184273) |
|
$ 111.28 |
